Tektronix CURVE-TRACER 576 Instruction Manual page 236

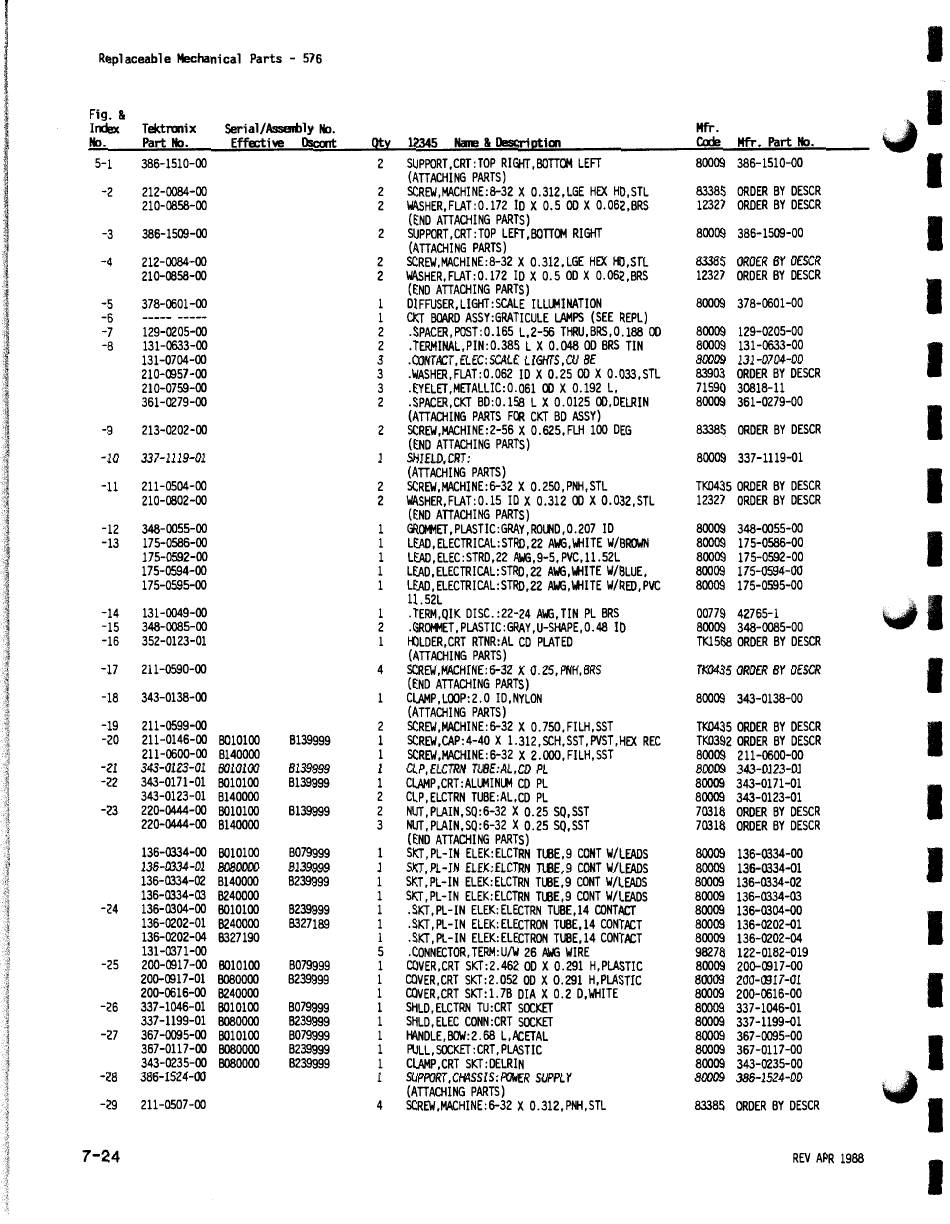

Replaceable Mechanical Parts - 576
I
Fig.
&
I
Index Tektronix
Serial/~ly
No.
Mfr.
No. Part No.
Effecti~~e
llscont
!l!:x
12345
Heme &
Descri
I!!:
ion COOe Mfr. Part No.
5-1 386-1510-00
2
SUPPORT,CRT:TOP RIGHT,80TTOM LEFT 80009 386-1510-00
I
(ATTACHING PARTS)
-2 212-0084-00 2
SCREW,MACHINE:B-32 X 0.312,LGE HEX HD,STL 83385 ORDER BY DESCR
210-0858-00 2
WASHER,FLAT:0.172 ID X 0.5 00 X 0.062,BRS 12327 ORDER BY DESCR
(END ATTACHING PARTS)
I
-3 386-1509-00 2
SUPPORT, CRT: TOP LEFT, BOTTOM RIGHT 80009 386-1509-00
(ATTACHING PARTS)
-4
212-0084-00 2
SCREW,MACHINE:8-32 X 0.312.LGE HEX HO,STL 83385 ORDER BY DESCR
210-0858-00 2 WASHER,FLAT:0.172 ID X 0.5 OD X 0.062,BRS
12327 ORDER BY DESCR
I
(END ATTACHING PARTS)
-5 378-0601-00 1 DIFFUSER,LIGHT:SCALE ILLUMINATION
80009 378-0601-00
-6
----- -----
1
CKT BOARD ASSY:GRATICULE LAMPS (SEE REPL)
-7 129-0205-00 2
.SPACER,POST:0.165 L,2-56 THRU,BRS,0.188 00 80009 129-0205-00
-8
131-0633-00 2
.TERMINAL,PIN:0.385 L X 0.048 OD BRS TIN 80009 131-0633-00
I
131-0704-00 3 .CONTACT,ELEC:SCALE LIGHTS,CU BE
80009 131-0704-00
210-0957-00 3 .WASHER,FLAT:0.062 ID X 0.25 OD X 0.033,STL
83903 ORDER BY DESCR
210-0759-00 3 .EYELET,METALLIC:0.061 00 X 0.192 L,
71590 30818-11
361-0279-00 2 .SPACER,CKT BD:0.158 LX 0.0125 OD,DELRIN
80009 361-0279-00
I
(ATTACHING PARTS F~ CKT BD ASSY)
-9 213-0202-00 2 SCREW,MACHINE:2-56 X 0.625,FLH 100 DEG
83385 ORDER BY DESCR
(END ATTACHING PARTS)
-10 337-1119-01 SHIELD, CRT:
80009 337-1119-01
(ATTACHING PARTS)
I
-11 211-0504-00 2 SCREW,MACHINE:6-32 X 0.250,PNH,STL TK0435 ORDER BY DESCR
210-0802-00
2
WASHER,FLAT:0.15 ID X 0.312 00 X 0.032,STL 12327 ORDER BY DESCR
(END ATTACHING PARTS)
-12
348-0055-00 GROt+IET, PLASTIC:GRAY, RO~D. 0.207 ID
80009 348-0055-00
I
-13
175-0586-00 LEAD,ELECTRICAL:STRD,22 A~.WHTE W/BRO.oiN
80009 175-0586-00
175-0592-00 LEAD,ELEC:STRD,22 AWG,9-5,PVC,11.52L 80009 175-0592-00
175-0594-00 LEAD,ELECTRICAL:STRD,22 A~.WHITE W/BLUE, 80009 175-0594-00
175-0595-00 LEAD,ELECTRICAL:STR0,22 AWG,WHITE W/RED,PVC 80009 175-0595-00
11.52L \Ill
-14 131-0049-00 1 .TERM,QIK DISC.:22-24 AWG,TIN PL BRS 00779 42765-1
-15
348-0085-00 2 .GROMMET,PLASTIC:GRAY,U-SHAPE,0.48 ID 80009 348-0085-00
-16
352-0123-01 1 HOLDER,CRT RTNR:AL CD PLATED TK1568 ORDER BY DESCR
(ATTACHING PARTS)
I
-17 211-0590-00
4
SCREW,MACHINE:6-32 X 0.25,PNH,BRS
TK0435 ORDER BY DESCR
(END ATTACHING PARTS)
-18 343-0138-00
CLAMP,LOOP:2.0 ID,NYLON 80009 343-0138-00
(ATTACHING PARTS)
-19 211-0599-00
2 SCREW,MACHINE:6-32 X 0.750,FILH,SST TK0435 ORDER BY DESCR
I
-20 211-0146-00 8010100
B139999
1
SCREW,CAP:4-40 X 1.312,SCH,SST,PVST,HEX REC
TK0392 ORDER BY DESCR
211-0600-00 B140000
1
SCREW,MACHINE:6-32 X 2.000,FILH,SST
80009 211-0600-00
-21
343-0123-01 8010100 B139999 1 CLP,ELCTRN TUBE:AL,CD PL
80009 343-0123-01
-22
343-0171-01 8010100 B139999
1
CLAMP,CRT:ALUMINUM CD PL
80009 343-0171-01
I
343-0123-01 B140000
2 CLP,ELCTRN TUBE:AL,CD PL 80009 343-0123-01
-23 220-0444-00 8010100
B139999 2 NUT,PLAIN,SQ:6-32 X 0.25 SQ,SST 70318 ORDER BY DESCR
220-0444-00 B140000
3 NUT,PLAIN,SQ:6-32 X 0.25 SQ,SST 70318 ORDER BY DESCR
(END ATTACHING PARTS)
136-0334-00 8010100 B079999
1 SKT,PL-IN ELEK:ELCTRN TUBE,9 CONT W/LEADS 80009 136-0334-00 I
136-0334-01 8080000
B139999 1 SKT,PL-IN ELEK:ELCTRN TUBE,9 CONT W/LEADS
80009 136-0334-01
136-0334-02 B140000
B239999
1 SKT,PL-IN ELEK:ELCTRN TUBE,9 CONT W/LEADS 80009 136-0334-02
136-0334-03 8240000
1 SKT,PL-IN ELEK:ELCTRN TUBE,9 CONT W/LEADS 80009 136-0334-03
-24 136-0304-0D 8010100
B239999 1 .SKT,PL-IN ELEK:ELECTRN TUBE,14 CONTACT
80009 136-0304-DO
I
136-0202-01 8240000 8327189
1
.SKT,PL-IN ELEK:ELECTRON TUBE,14 CONTACT
80009 136-0202-D1
136-0202-04 8327190
1 .SKT,PL-IN ELEK:ELECTRON TUBE,14 CONTACT
80009 136-0202-04
131-0371-00 5 .CONNECTOR,TERM:UIW 26 AWG WIRE
98278 122-0182-019
-25 200-0917-00 8010100
B079999 1 COVER,CRT SKT:2.462 OD X 0.291 H,PLASTIC 80009 20D-0917-00
20D-0917 -01 8080000
B239999
1
COVER,CRT SKT:2.052 OD X 0.291 H,PLASTIC 80009 200-0917-01 I
200-0616-00 8240000 1 COVER,CRT SKT:1.78 DIA X 0.2 D,WHITE 80009 200-0616-00
-26 337-1046-01 8010100
B079999 1 SHLD,ELCTRN TU:CRT SOCKET 80009 337-1046-01
337-1199-01 8080000
B239999 1 SHLD,ELEC CONN:CRT SOCKET 80009 337-1199-D1
-27 367-0095-00 8010100
B079999 1 HANDLE,BOW:2.68 L,ACETAL 80009 367-0095-00
I
367-0117-00 8080000
B239999 1 PULL,SOCKET:CRT,PLASTIC 80009 367-0117-00
343-0235-00 8080000
B239999 1 CLAMP,CRT SKT:DELRIN 80009 343-0235-00
-28 386-1524-00
1 SUPPORT,CHASSIS:POWER SUPPLY 80009 386-1524-00
"'
(ATTACHING PARTS)
'
I -29 211-0507-00
4 SCREW,MACHINE:6-32 X 0.312,PNH,STL 83385 ORDER BY DESCR
7-24
REV APR 1988
