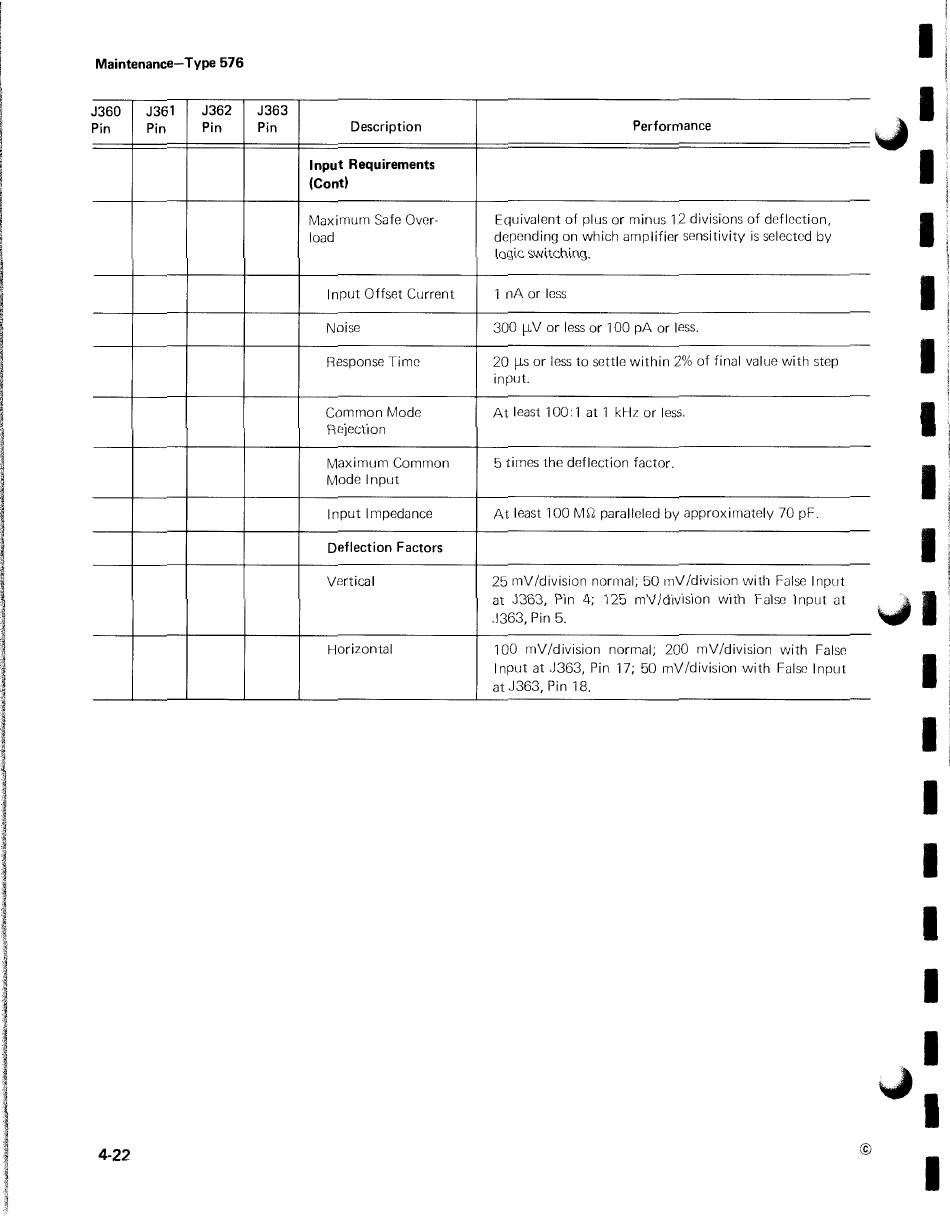

Tektronix CURVE-TRACER 576 Instruction Manual page 104

Maintenance- Type 576
J360 J361 J362
J363
Pin Pin Pin
Pin Description
Input Requirements
(Conti
Maximum Safe Over-
load
Input Offset Current
Noise
Response Time
Common Mode
Rejection
Maximum Common
Mode Input
Input Impedance
Deflection Factors
Vertical
Horizontal
4-22
Performance
Equivalent of plus or minus 12 divisions of deflection,
depending on which amplifier sensitivity is selected by
logic switching.
1 nA or less
300 [-LV or less or 100 pA or less.
20 [..Ls or less to settle within 2% of final value with step
input.
At least 100:1 at 1 kHz or less.
5 times the deflection factor.
At least 100 MSI paralleled by approximately 70 pF.
25 mV /division normal; 50
tiN
/division with False Input
at J363, Pin 4; 125 mV /division with False Input at
.1363, Pin 5.
100 mV/division normal; 200 mV/division with
Fals~
Input at J363, Pin 17; 50 mV /division with False Input
at J363, Pin 18.
©
