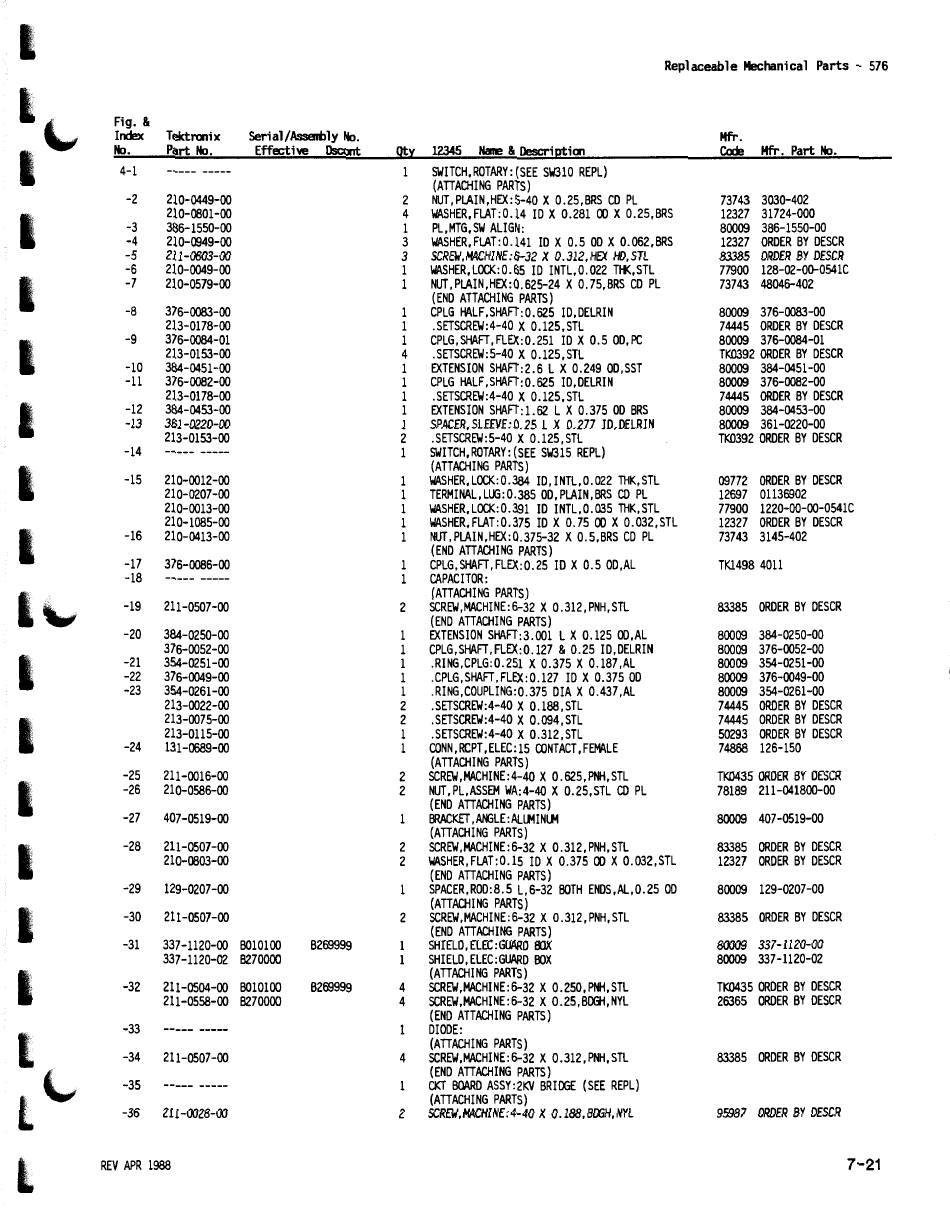

Replaceable Mechanical Parts - 576
.\,.,
Fig.
&
Index
Tektronix
Serial/Assembly No.
Mfr.
I
No. Part No. Effective
Dscont !l!::t
12345
Nane
&
Descrim:ion
Code Mfr.
Part No.
4-1
-----
-----
SWITCH,ROTARY:(SEE SW310 REPL)
(ATIACHING PARTS)
-2 210-0449-00 2 NUT,PLAIN,HEX:5-40 X 0.25,BRS CO PL 73743 3030-402
I
210-0801-00
4
WASHER,FLAT:0.14 ID X 0.281 00 X 0.25,BRS 12327 31724-000
-3 386-1550-00
1
PL,MTG,SW ALIGN:
80009 386-1550-00
-4 210-0949-00 3 WASHER,FLAT:0.141 ID X 0.5 OD X 0.062,BRS 12327 ORDER BY OESCR
-5
211-0603-00 3 SCREW,MACHINE:6-32 X 0.312,HEX HO,STL 83385 ORDER BY OESCR
-6 210-0049-00
1
WASHER,LOCK:0.65 ID INTL,0.022 THK,STL
77900 128-02-0D-0541C
I -7 210-0579-00
1 NUT,PLAIN,HEX:0.625-24 X 0.75,BRS CD PL 73743 48046-402
(END ATTACHING PARTS)
-8 376-0083-00
1 CPLG HALF,SHAFT:0.625 ID,DELRIN 80009 376-0083-00
213-0178-00
1
.SETSCREW:4-40 X 0.125,STL 74445 ORDER BY DESCR
I
-9 376-0084-01
1
CPLG,SHAFT,FLEX:0.251 ID X 0.5 OD,PC 80009 376-0084-01
213-0153-00 4 .SETSCREW:5-40 X 0.125,STL TK0392 ORDER BY DESCR
-10 384-0451-00
1 EXTENSION SHAFT:2.6 L X 0.249 OD,SST 80009 384-0451-00
-11 376-0082-00
1
CPLG HALF,SHAFT:0.625 ID,DELRIN 80009 376-0082-00
213-0178-00
1 .SETSCREW:4-40 X 0.125,STL 74445 ORDER BY DESCR
I -12 384-0453-00
1 EXTENSION SHAFT:1.62 LX D.375 OD BRS 80009 384-0453-00
-13 361-0220-00 1 SPACER,SLEEVE:0.25 L X 0.277 !D,DELRIN 80009 361-0220-00
213-0153-00
2 .SETSCREW:5-40 X 0.125,STL TK0392 ORDER BY DESCR
-14
----- -----
1 SWITCH,ROTARY:(SEE SW315 REPL)
I
(ATTACHING PARTS)
-15 210-0012-00 WASHER,LOCK:0.384 ID,INTL,0.022 THK,STL 09772 ORDER BY DESCR
210-0207-00
TERMINAL,LUG:0.385 OD,PLAIN,BRS CD PL 12697 01136902
210-0013-00
WASHER,LOCK:0.391 ID INTL,0.035 THK,STL 77900 1220-00-00-0541C
210-1085-00 WASHER,FLAT:0.375 ID X 0.75 00 X 0.032,STL 12327 ORDER BY DESCR
I
-16 210-0413-00 NUT,PLA!N,HEX:0.375-32 X 0.5,BRS CD PL 73743 3145-402
(END ATIACHING PARTS)
-17 376-0086-00 CPLG,SHAFT,FLEX:0.25 ID X 0.5 OD,AL TK1498 4011
-18
-----
-----
CAPACITOR:
l
(ATTACHING PARTS)
-19 211-0507-00
2
SCREW,MACHINE:6-32 X 0.312,PNH,STL 83385 ORDER BY DESCR
\..,.
(END ATIACHING PARTS)
-20 384-0250-00
1
EXTENSION SHAFT:3.001 LX 0.125 OO,AL 80009 384-0250-00
376-0052-00
1
CPLG,SHAFT,FLEX:0.127 & 0.25 ID,DELRIN 80009 376-0052-00
I
-21 354-0251-00
1
.RING,CPLG:0.251 X 0.375 X 0.187,AL 80009 354-0251-00
-22 376-0049-00
1 .CPLG,SHAFT,FLEX:0.127 ID X 0.375 OD 80009 376-0049-00
-23 354-0261-00
1 .RING,COUPLING:0.375 DIA X 0.437,AL 80009 354-0261-00
213-0022-00 2 .SETSCREW:4-40 X 0.188,STL 74445 ORDER BY DESCR
I
213-0075-00 2 .SETSCREW:4-40 X 0.094,STL 74445 ORDER BY DESCR
213-0115-00 1 .SETSCREW:4-40 X 0.312,STL 50293 ORDER BY DESCR
-24 131-0689-00
1
CONN,RCPT,ELEC:15 CONTACT,FEMALE
74868 126-150
(ATIACHING PARTS)
-25 211-0016-00
2
SCREW,MACHINE:4-40 X 0.625,PNH,STL TK0435 ORDER BY DESCR
I
-26 210-0586-00 2 NUT,PL,ASSEM WA:4-40 X 0.25,STL CD PL 78189 211-041800-00
(END ATIACHING PARTS)
-27 407-0519-00
BRACKET,ANGLE:ALUMINUM
80009
407-0519-00
(ATIACHING PARTS)
I
-28 211-0507-00
2
SCREW,MACHINE:6-32 X 0.312,PNH,STL 83385 ORDER BY DESCR
210-0803-00 2 WASHER,FLAT:0.15 ID X 0.375 00 X 0.032,STL 12327 ORDER BY DESCR
(END ATIACHING PARTS)
-29 129-0207-00
SPACER,ROD:8.5 L,6-32 BOTH ENDS,AL,0.25 OD
80009 129-0207-00
I
(ATIACHING PARTS)
-30 211-0507-00
2
SCREW,MACHINE:6-32 X 0.312,PNH,STL 83385 ORDER BY DESCR
(END ATIACHING PARTS)
-31 337-1120-00 8010100 B269999 SHIELD,ELEC:GUARD BOX
80009
337-1120-00
337-1120-02 8270000
SHIELD,ELEC:GUARD BOX
80009 337-1120-02
I
(ATIACHING PARTS)
-32 211-0504-00 8010100 B269999 4 SCREW,MACHINE:6-32 X 0.250,PNH,STL
TK0435 ORDER BY DESCR
211-0558-00 8270000 4 SCREW,MACHINE:6-32 X 0.25,BOGH,NYL 26365 ORDER BY DESCR
(END ATTACHING PARTS)
1
-33
----- -----
DIODE:
(ATIACHING PARTS)
-34 211-0507-00 4 SCREW,MACHINE:6-32 X 0.312,PNH,STL
83385 ORDER BY DESCR
L\...
(END ATIACHING PARTS)
-35
----- -----
CKT BOARD ASSY:2KV BRIDGE (SEE REPL)
(ATIACHING PARTS)
-36 211-0028-00
2
SCREW,MACHINE:4-40 X 0.188,BDGH,NYL 95987 ORDER BY DESCR
l
REV APR 1988
7-21
