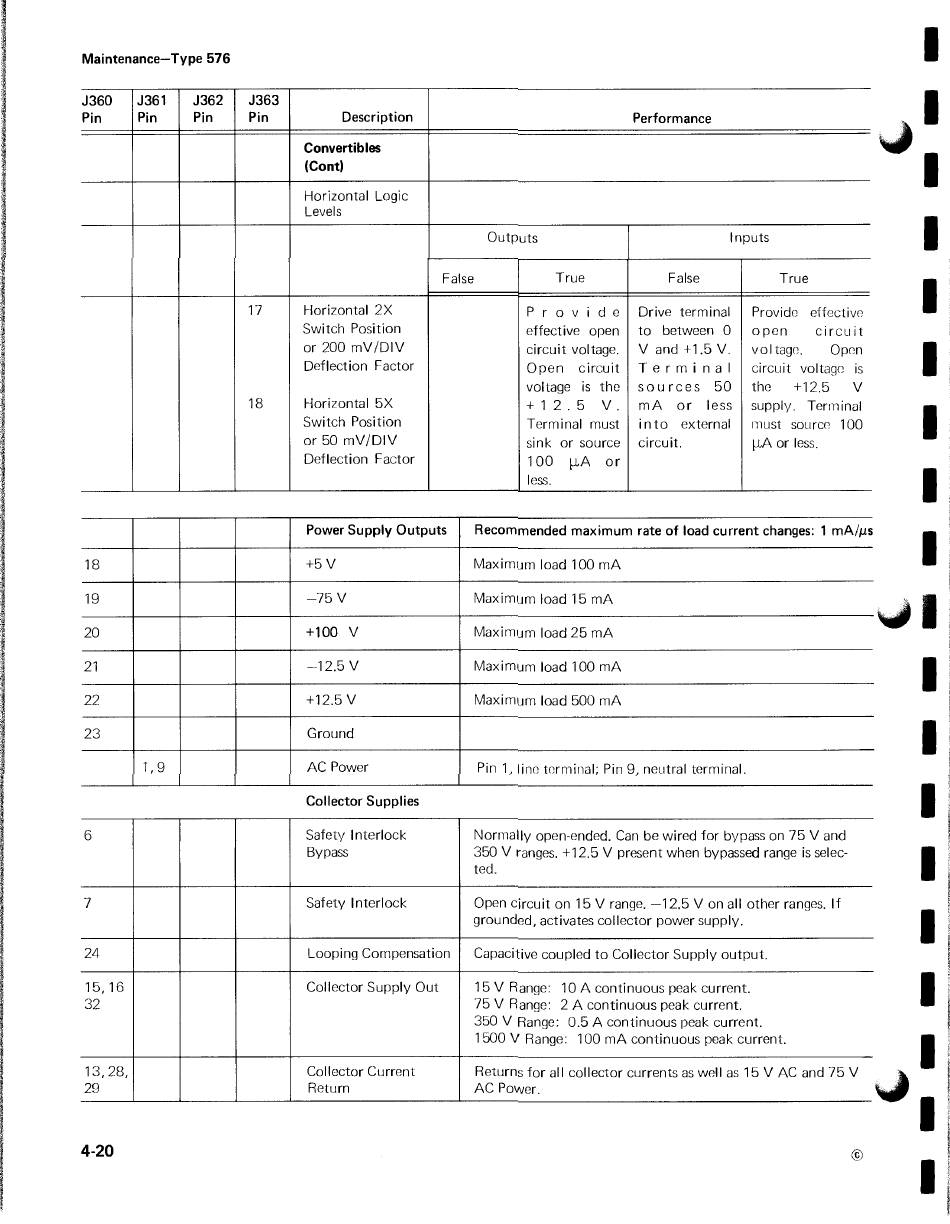

Tektronix CURVE-TRACER 576 Instruction Manual page 102

Maintenance-Type 576
J360 J361 J362 J363
Pin
Pin
Pin
Pin
Description
Convertibles
(Cont)
Horizontal Logic
Levels
False
17 Horizontal 2X
Switch Position
or 200 mV /DIV
Deflection Factor
18 Horizontal 5X
Switch Position
or 50 mV/DIV
Deflection Factor
Power Supply Outputs
18 +5
v
19
-75V
20
+100
v
21 -12.5
v
22 +12.5V
23 Ground
1' 9
AC Power
Collector Supplies
6
Safety Interlock
Bypass
7 Safety Interlock
24
Looping Compensation
15, 16 Collector Supply Out
32
13, 28,
Collector Current
29 Return
4-20
Performance
Outputs Inputs
True
False True
p
r
0
v i d e Drive terminal
Provide effective
effective open to between 0 open
circuit
circuit voltage. V and +1.5 V. voltage.
Open
Open circuit Terminal
circuit voltage is
voltage is the sources 50 the
+12.5
v
+ 1 2. 5
V. mA or
less
supply. Terminal
Terminal must into external
must source 100
sink or source circuit.
[.LA or less.
100
[.LA or
less.
Recommended maximum rate of load current changes: 1 mA/JlS
Maximum load 100 mA
Maximum load 15 mA
Maximum load 25 mA
Maximum load 100 mA
Maximum load 500 mA
Pin 1, IiilO termi11al; Pin 9, neutral terminal.
Normally open-ended. Can be wired for bypass on 75 V and
350 V ranges. +12.5 V present when bypassed range is selec-
ted.
Open circuit on 15 V range. -12.5 Von all other ranges. If
grounded, activates collector power supply.
Capacitive coupled to Collector Supply output.
15 V Range: 10 A continuous peak current.
75 V Range: 2 A continuous peak current.
350 V Range: 0.5 A continuous peak current.
1500 V Range: 100 mA continuous peak current.
Returns for all collector currents as well as 15 V AC and 75 V
AC Power.
©
