I
~
L :
'R!ktronOO
COMMITTED ID EXCELLENCE
doto sheet
l
I
I
l
I
"
l
I
l
l
I
..

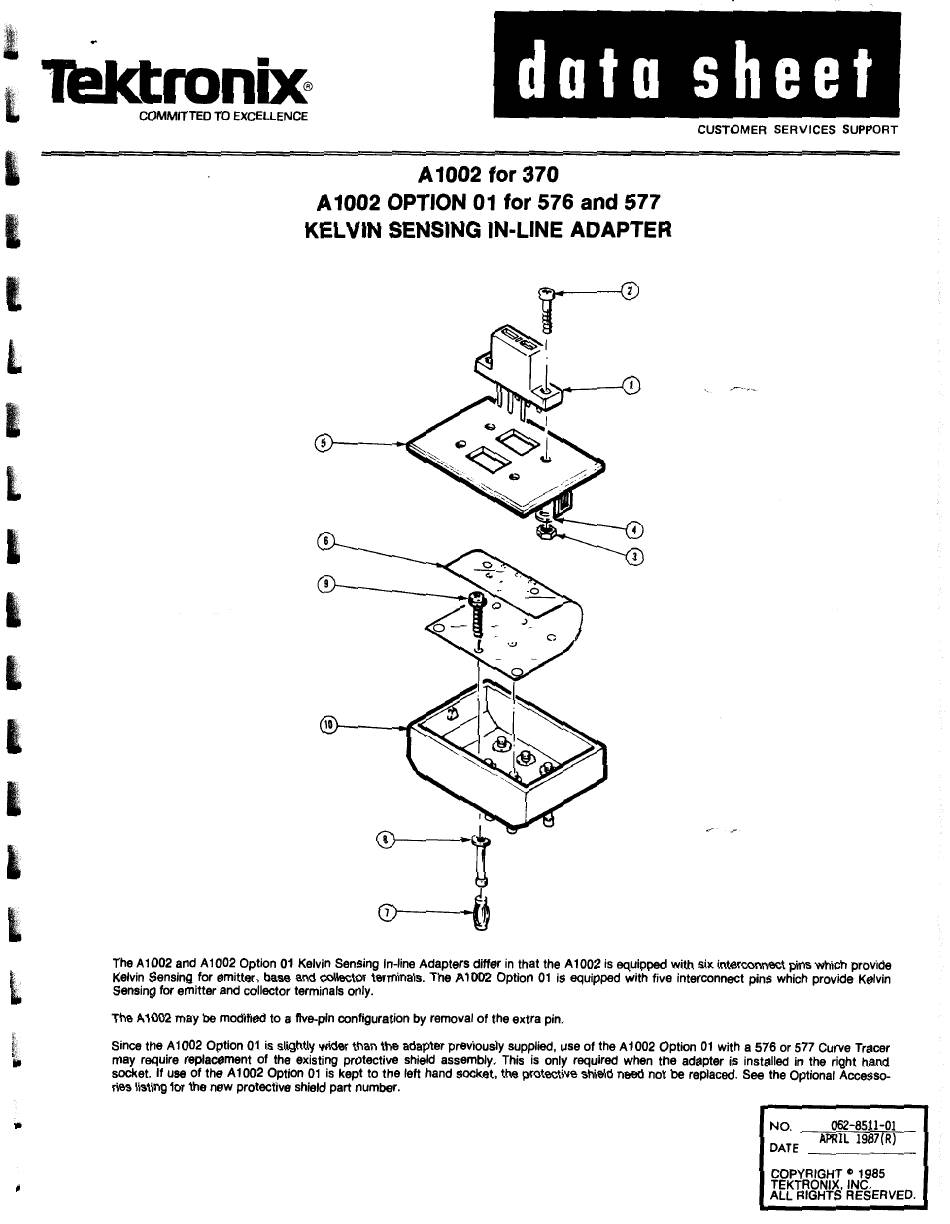

A 1002
for
370
A1002 OPTION 01
for
576 and 577
KELVIN SENSING IN-LINE ADAPTER
CUSTOMER SERVICES SUPPORT
The A 1 002 and A 1 002 Option 01 Kelvin Sensing In-line Adapters differ in that the A 1 002 is equipped with six interconnect pins which provide
Kelvin Sensing for emitter, base and collector terminals. The A1002 Option 01 is equipped with five interconnect pins which provide Kelvin
Sensing for emitter and collector terminals only.
The A1002 may be modified to a five-pin configuration by removal of the extra pin.
Since the A 1002 Option 01 is slightly wider than the adapter previously supplied, use of the A 1002 Option 01 with a 576 or 577 Curve Tracer
may require replacement of the existing protective shield assembly. This is only required when the adapter is installed in the right hand
socket. If use of the A1002 Option 01 is kept to the left hand socket, the protective shield need not be replaced. See the Optional Accesso-
ries listing for the new protective shield part number.
NO. --==062~-8""'5~llo.,.:-O~l­
DATE
_APR_IL_l98_7_(_R)_
COPYRIGHT
11
1985
TEKTRONIX INC.
ALL RIGHTS RESERVED.
