Fig.
&
Index
No.
Tektrooix
Part No.
Serial/~ly No.
Effecthe
llscont
4-
-74
-75
-76
-77
-78
-79
-80
-81
-82
407-0270-00 8010100
407-1548-00 6310000
210-0006-00
210-0407-00
212-0094-00 8010100
212-0020-00 8020410
348-0079-00 8010100
348-0054-00 8020410
212-0516-00
210-0812-00
210-0805-00
220-0410-00
-83 179-1375-00
-84 179-1376-00
-85 179-1374-00 8010100
179-1374-01 8060990
-86 124-0089-00
355-0046-00
361-0007-00
-87 124-0092-00
355-0046-00
361-0007-00
-88 ----- -----
-89 211-0008-00
210-0586-00
-90 131-0690-00
-91 337-1174-01
212-0023-00
REV APR 1988
6300999
B020409
8020409
B060989
Qty
2
2
2
2
1
1
1
1
4
4
4
4
1
1
1
1
4
2
4
1
1
1
1
2
2
2

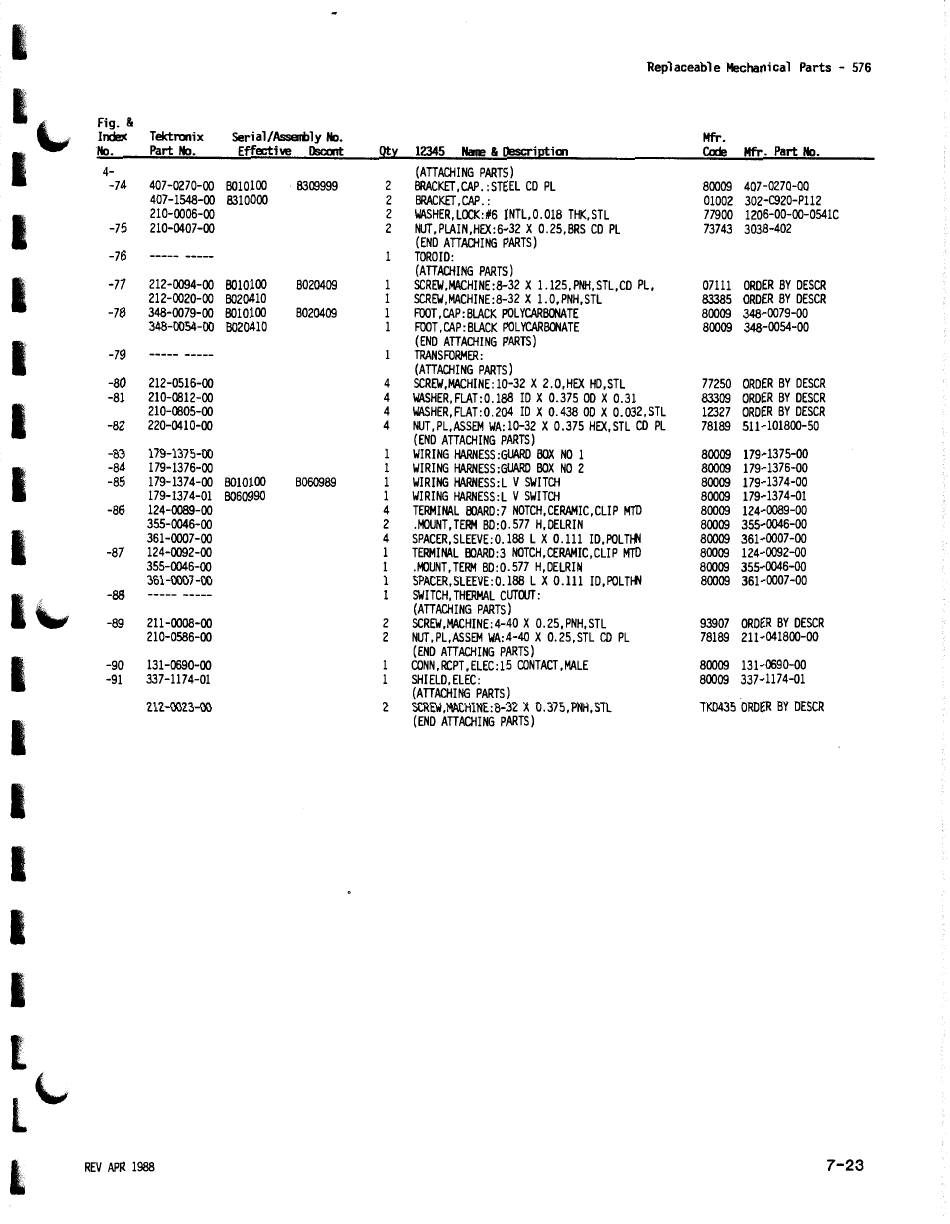

Replaceable Mechanical Parts - 576
Mfr.
12345 Nane
& Descriptioo Code Mfr. Part No.
(AITACHING PARTS)
BRACKET,CAP. :STEEL CD PL 80009 407-0270-00
BRACKET, CAP. :
01002 302-C920-P112
WASHER,LOCK:#6 INTL,0.018 THK,STL
77900 1206-00-00-0541C
NUT,PLAIN,HEX:6-32 X 0.25,BRS CD PL 73743 3038-402
(END AITACHING PARTS)
TOROID:
(AITACHING PARTS)
SCREW,MACHINE:B-32 X 1.125,PNH,STL,CD PL, 07111 ORDER BY DESCR
SCREW,MACHINE:8-32 X 1.0,PNH,STL 83385 ORDER BY DESCR
FOOT,CAP:BLACK POLYCARBONATE 80009 348-0079-00
FOOT,CAP:BLACK POLYCARBONATE 80009 348-0054-00
(END AITACHING PARTS)
TRANSFORMER:
(AITACHING PARTS)
SCREW,MACHINE:10-32 X 2.0,HEX HD,STL 77250 ORDER BY DESCR
WASHER,FLAT:0.188 ID X 0.375 OD X 0.31 83309 ORDER BY DESCR
WASHER,FLAT:0.204 ID X 0.438 OD X 0.032,STL 12327 ORDER BY DESCR
NUT,PL,ASSEM WA:10-32 X 0.375 HEX,STL CD PL 78189 511-101800-50
(END AITACHING PARTS)
WIRING HARNESS:GUARD
BOX
NO 1 80009 179-1375-00
WIRING HARNESS:GUARD BOX NO 2 80009 179-1376-00
WIRING HARNESS:L V SWITCH 80009 179-1374-00
WIRING HARNESS:L V SWITCH
80009 179-1374-01
TERMINAL BOARD:? NOTCH,CERAMIC,CLIP MTD
80009 124-0089-00
.MOUNT,TERM BD:0.577 H,DELRIN 80009 355-0046-00
SPACER,SLEEVE:0.188 L X 0.111 ID,POLTHN
80009 361-0007-00
TERMINAL BOARD:3 NOTCH,CERAMIC,CLIP
MTD
80009 124-0092-QO
.MOUNT,TERM BD:0.577 H,DELRIN 80009 355-0046-00
SPACER,SLEEVE:0.188 LX 0.111 ID,POLTHN 80009 361-0007-00
SWITCH, THERMAL CUTOUT:
(AITACHING PARTS)
SCREW,MACHINE:4-40 X 0.25,PNH,STL
93907 ORDER BY DESCR
NUT,PL,ASSEM WA:4-40 X 0.25,STL CD PL
78189 211-041800-00
(END AITACHING PARTS)
CDNN,RCPT,ELEC:15 CONTACT,MALE
80009 131-0690-00
SHIELD, ELEC:
80009 337-1174-01
(AITACHING PARTS)
SCREW,MACHINE:8-32 X 0.375,PNH,STL
TK0435 ORDER BY DESCR
(END AITACHING PARTS)
7-23
