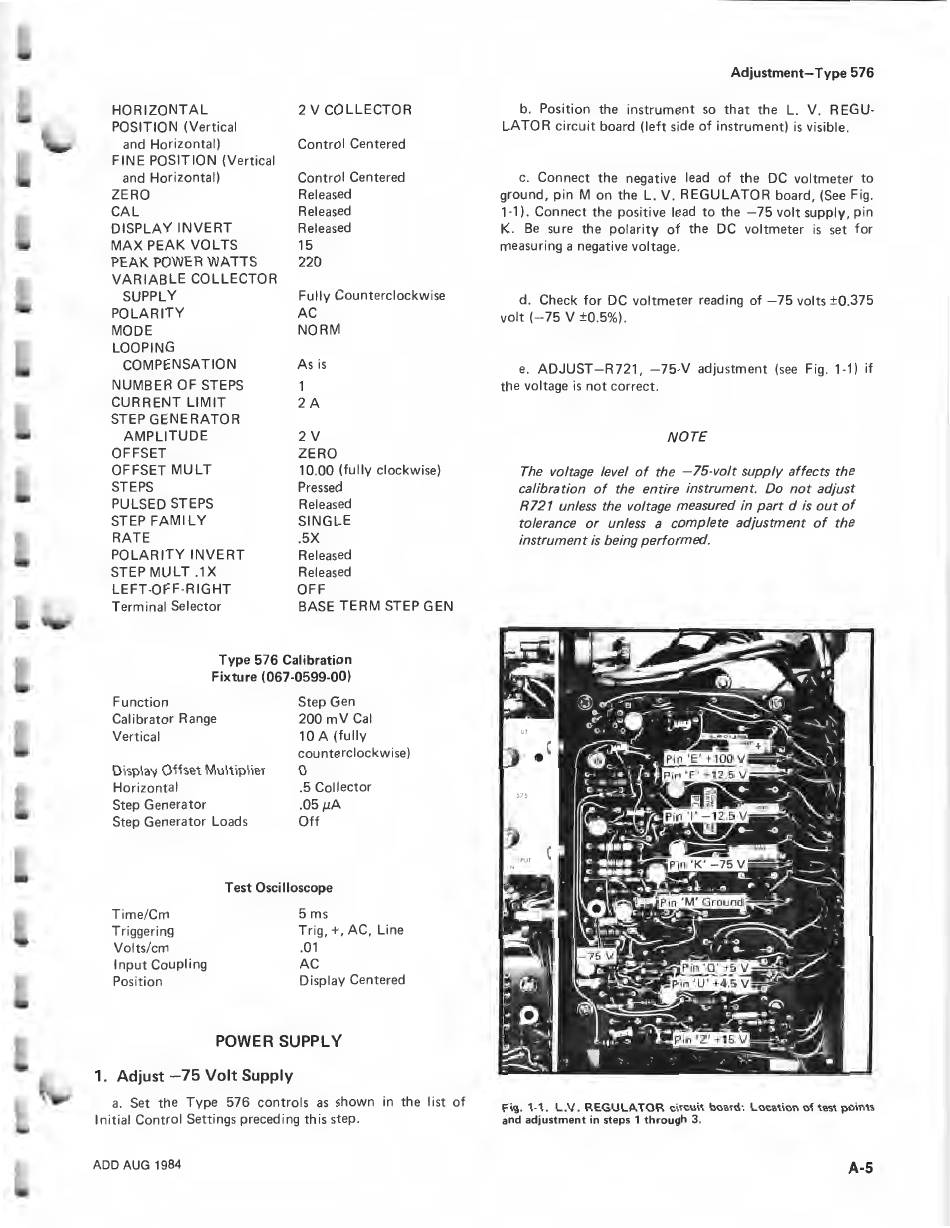

Tektronix CURVE-TRACER 576 Instruction Manual page 163

HORIZONTAL 2 V COLLECTOR
POSITION (Vertical
and Horizontal) Control Centered
FINE POSITION (Vertical
and Horizontal) Control Centered
ZERO Released
CAL Released
DISPLAY INVERT Released
MAX PEAK VOLTS 15
PEAK POWER WATTS
220
VARIABLE COLLECTOR
SUPPLY
Fully Counterclockwise
POLARITY
AC
MODE
NORM
LOOPING
COMPENSATION
As is
NUMBER OF STEPS 1
CURRENT LIMIT
2A
STEP GENERATOR
AMPLITUDE 2V
OFFSET ZERO
OFFSET MULT 10.00 (fully clockwise)
STEPS Pressed
PULSED STEPS Released
STEP FAMILY SINGLE
RATE .5X
POLARITY INVERT Released
STEP MULT .1X Released
LEFT-OFF-RIGHT OFF
Terminal Selector
BASE TERM STEP GEN
Type 576 Calibration
Fixture (067-0599-00)
Function
Calibrator Range
Vertical
Display Offset Multiplier
Horizontal
Step Generator
Step Generator Loads
Step Gen
200 mV Cal
10 A (fully
counterclockwise)
0
.5 Collector
.05 !1A
Off
Time/ Cm
Triggering
Volts /em
Test Oscilloscope
5
ms
Input Coupling
Position
Trig,+, AC, Line
.01
AC
Display Centered
POWER SUPPLY
1. Adjust -75 Volt Supply
a. Set the Type 576 controls as shown in the I ist of
Initial Control Settings preceding this step.
ADD AUG 1984
Adjustment-Type 576
b. Position the instrument so that the
L.
V. REG U-
LATOR circuit board (left side of instrument) is visible .
c. Connect the negative lead of the DC voltmeter to
ground, pin M on the L. V. REGULATOR board, (See Fig .
1-1). Connect the positive lead to the -75 volt supply, pin
K. Be sure the polarity of the DC voltmeter is set for
measuring a negative voltage.
d . Check for DC voltmeter reading of -75 volts ±0.375
volt (-75 V ±0.5%) .
e. ADJUST - R721, -75-V adjustment (see Fig . 1-1) if
the voltage is not correct.
NOTE
The voltage level of the -75-volt supply affects the
calibration of the entire instrument. Do not adjust
R 721 unless the voltage measured in part d is out of
tolerance or unless a complete adjustment of the
instrument is being performed.
Fig . 1-1. L.V . REGULATOR circuit board : Location of test points
and adjustment in steps 1 through 3.
A-5
