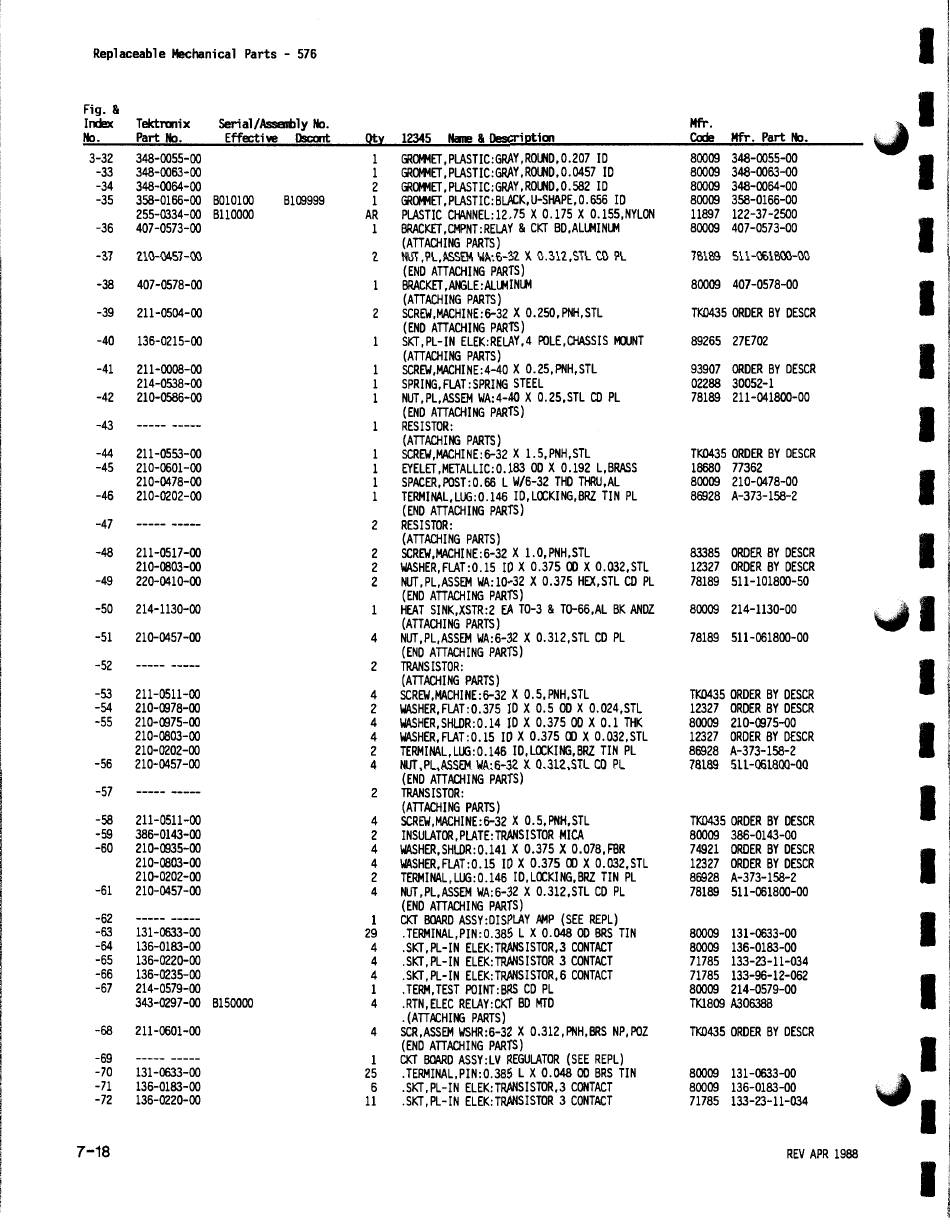

Replaceable Mechanical Parts - 576
I
'
~·
i
Fig.
& I
Index
Tektrooix Serial/Assamly
No.
Mfr.
i
No.
Part
No.
Effect he
Dscant ~X
12345
Nime & Descri
!!!ion
Code Mfr.
Part
No.
3-32
348-0055-00 1
GROI+1ET, PLASTIC:GRAY
,RO~D.0.207
10 80009 348-0055-00
I
!
-33 348-0063-00 1 GR!MIET, PLASTIC:GRAY
.R~D.0.0457
ID
80009 348-0063-QO
i
-34 348-0064-00 2 GRCMolET ,PLASTIC:GRAY
,RO~D.0.582
ID 80009 348-0064-00 I
-35 358-0166-00 B010100 Bl09999 1
GRCMolET ,PLASTIC:BLACK,U-SHAPE,0.656 ID 80009 358-0166-00
255-0334-00 B110000 AR PLASTIC CHANNEL:l2.75 X 0.175 X 0.155,NYLON 11897 122-37-2500
~
-36 407-0573-00 1
BRACKET,CMPNT:RELAY
&
CKT BO,ALIJotiNlJot 80009 407-0573-00
I
~
(ATIACHING PARTS)
l
-37 210-0457-00
2
NUT,PL,ASSEM WA:S-32 X 0.312,STL CD PL 78189 511-061800-00
(END ATIACHING PARTS)
-38 407-0578-00 BRACKET ,ANGLE:ALIJotiNlJot 80009 407-0578-00
I
l
(ATIACHING PARTS)
~
-39
211-0504-00 2
SCREW,MACHINE:6-32 X 0.250,PNH,STL TK0435 ORDER BY DESCR
I
(END ATIACHING PARTS)
-40 136-0215-00 SKT,PL-IN ELEK:RELAY,4 POLE,CHASSIS MOUNT
89265 27E702
I
(ATIACHING PARTS)
t
-41 211-0008-00
SCREW,MACHINE:4-40 X 0.25,PNH,STL 93907 ORDER BY DESCR
214-0538-00 SPRING,FLAT:SPRING STEEL 02288 30052-1
'
-42 210-0586-00 NUT,PL,ASSEM WA:4-40 X 0.25,STL CD PL 78189 211-041800-00
!
(END ATIACHING PARTS)
I
-43
-----
-----
RESISTOR:
j
(ATIACHING PARTS) I
-44 211-0553-00 1 SCREW,MACHINE:6-32 X l.S,PNH,STL TK0435 ORDER BY DESCR
-45 210-0601-00
1
EYELET,METALLIC:O.l83 00 X 0.192 L,BRASS 18680 77362
I
!
210-0478-00
1
SPACER,POST:0.66 L W/6-32 THO THRU,AL 80009 210-0478-00
'
-46
210-0202-00 1
TERMINAL,LUG:O.l46 ID,LOCKING,BRZ TIN PL 86928 A-373-158-2
I
(END ATIACHING PARTS)
-47
----- -----
2 RESISTOR:
(ATIACHING PARTS)
I
~
-48 211-0517-00
2
SCREW,MACHINE:6-32 X 1.0,PNH,STL 83385 ORDER BY DESCR
I
210-0803-00 2 WASHER,FLAT:0.15 ID X 0.375 00 X 0.032,STL 12327 ORDER BY DESCR
-49
220-0410-00 2 NUT,PL,ASSEM WA:10-32 X 0.375 HEX,STL CD PL
78189 511-101800-50
(END ATIACHING PARTS)
~I ~
-so
214-1130-00 HEAT SINK,XSTR:2 EA T0-3
&
TD-66,AL BK ANDZ 80009 214-1130-00
'
i
(ATTACHING PARTS)
I
-51
210-0457-00 4 NUT,PL,ASSEM WA:6-32 X 0.312,STL CD PL 78189 511-061800-00
(END ATIACHING PARTS)
!
-52
-----
-----
2 TRANSISTOR: I
(ATIACHING PARTS) '
i
-53 211-0511-00
4
SCREW,MACHINE:6-32 X O.S,PNH,STL TK0435 ORDER BY DESCR
!
-54 210-0978-00
2
WASHER,FLAT:0.375 ID X 0.5 00 X 0.024,STL 12327 ORDER BY DESCR
-55
210-0975-00 4 WASHER,SHLDR:0.14 ID X 0.375 00 X 0.1 THK 80009 210-0975-QO
I
210-0803-00 4 WASHER,FLAT:0.15 ID X 0.375 00 X 0.032,STL 12327 ORDER BY DESCR
~
210-0202-00
2
TERMINAL,LUG:0.146 ID,LOCKING,BRZ TIN PL
86928 A-373-158-2
I
-56 210-0457-00
4
NUT,PL,ASSEM WA:6-32 X 0.312,STL CD PL 78189 511-061800-00
(END ATIACHING PARTS)
-57
----- -----
2 TRANSISTOR: I
t
(ATIACHING PARTS)
I
-58 211-0511-00
4 SCREW,MACHINE:6-32 X O.S,PNH,STL TK0435 ORDER BY DESCR
-59
386-0143-00
2 INSULATOR,PLATE:TRANSISTOR MICA 80009 386-0143-00
-60 210-0935-00
4 WASHER,SHLDR:0.141 X 0.375 X 0.078,FBR 74921 ORDER BY DESCR
I
l
210-0803-00 4 WASHER,FLAT:0.15 10 X 0.375 00 X 0.032,STL 12327 ORDER BY DESCR
I
210-0202-00 2 TERMINAL,LUG:0.146 ID,LOCKING,BRZ TIN PL 86928 A-373-158-2
-61
210-0457-00 4 NUT,PL,ASSEM WA:S-32 X 0.312,STL CD PL 78189 511-061800-00
(END ATIACHING PARTS)
I
-62
----- -----
1 CKT BOARD ASSY:DISPLAY AMP (SEE REPL)
-63 131-0633-00
29 .TERMINAL,PIN:0.385 LX 0.048 00 BRS TIN 80009 131-0633-00
-64 136-0183-00
4 .SKT,PL-IN ELEK:TRANSISTOR,3 CONTACT 80009 136-0183-00
-65 136-0220-00
4
.SKT,PL-IN ELEK:TRANSISTOR
3
CONTACT
71785 133-23-11-034
-66
136-0235-00 4 .SKT,PL-IN ELEK:TRANSISTOR,6 CONTACT 71785 133-96-12-062
I
-67 214-0579-00
1 .TERM,TEST POINT:BRS CD PL 80009 214-0579-00
'
343-0297-00 B150000
4 .RTN,ELEC RELAY:CKT BD MTO TK1809 A30638B '
l
. (ATIACHING PARTS)
I
-68 211-0601-00 4 SCR,ASSEM WSHR:6-32 X 0.312,PNH,BRS NP,POZ TK0435 ORDER BY DESCR
I~
(END ATIACHING PARTS)
-69
----- -----
1 CKT BOARD ASSY:LV REGULATOR (SEE REPL)
-70
131-0633-00
25
.TERMINAL,PIN:0.385 LX 0.048 00 BRS TIN
80009 131-0633-00
~I
-71 136-0183-00
6
.SKT,PL-IN ELEK:TRANSISTOR,3 CONTACT
80009 136-0183-00
-72
136-0220-00 11 .SKT,PL-IN ELEK:TRANSISTOR
3
CONTACT 71785 133-23-11-034 ll
7-18
REV APR 1988
