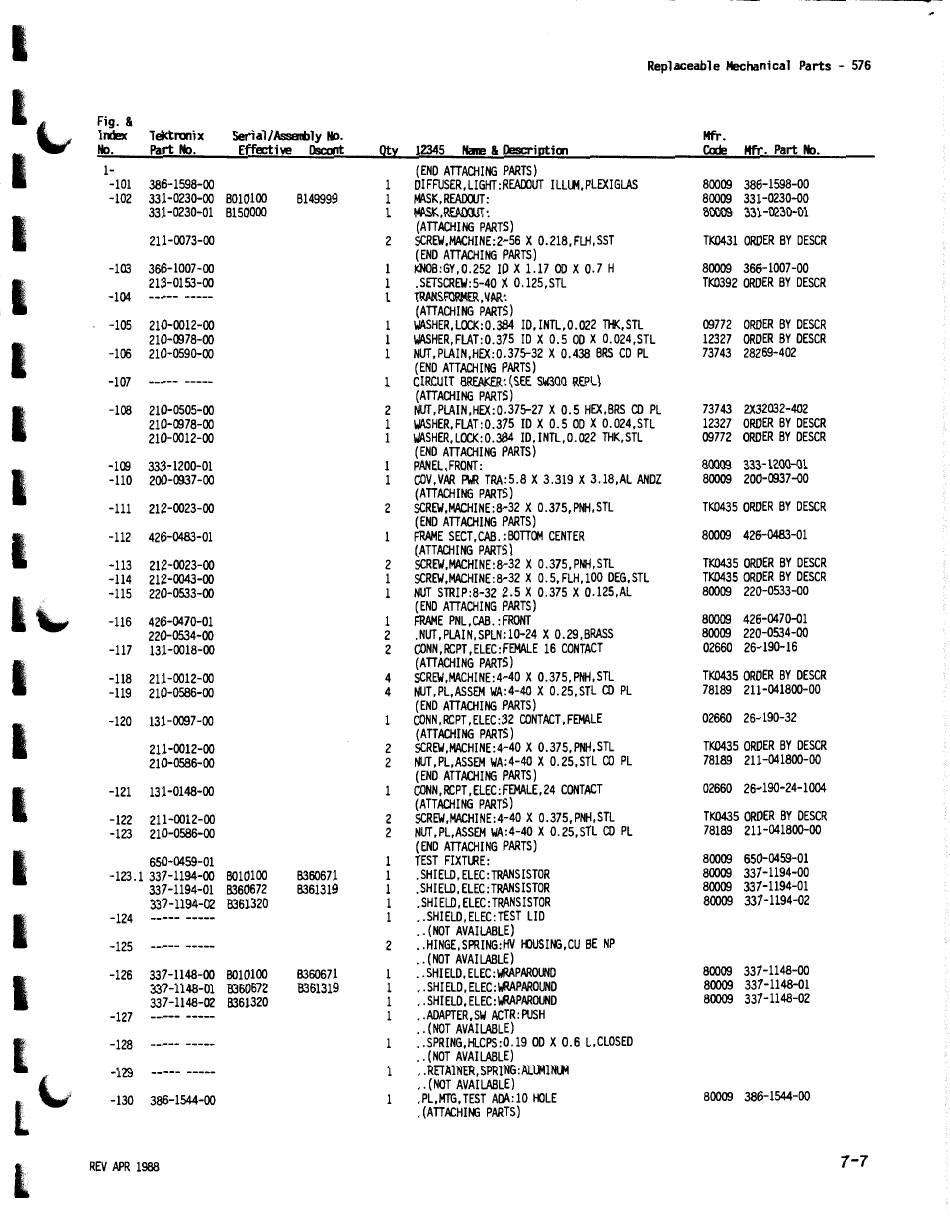

Tektronix CURVE-TRACER 576 Instruction Manual page 219

I
Replaceable Mechanical Parts - 576
I
Fig.
&
•' " "
Index
Tektronix Serial/Asssmly
No. Mfr.
No.
Part No. Effective
Dsccnt
~X
12345
Nail! &
Descril!!:im
COOe
Mfr.
Part
No.
1- (END ATTACHING PARTS)
-101 386-1598-00 DIFFUSER, LIGHT: REAOOUT ILLtJ.I, PLEXIGLAS 80009 386-1598-00
-102 331-0230-00 B010100 B149999 WISK, READOUT: 80009 331-0230-00
I
331-0230-01 B150000
W\SK, READOUT: 80009 331-0230-01
(ATTACHING PARTS)
211-0073-00 2 SCREW,MACHINE:2-56 X 0.218,FLH,SST TKD431 ORDER BY DESCR
(END ATTACHING PARTS)
-103 366-1007-00 1 KNOB:GY,0.252 ID X 1.17 00 X 0.7 H
80009 366-1007-00
I
213-0153-00 1 .SETSCREW:5-40 X 0.125,STL
TK0392 ORDER BY DESCR
-104
----- -----
1 TRANSFORMER, VAR:
(ATTACHING PARTS)
-105 210-0012-00 WASHER,LOCK:0.384 ID,INTL,0.022 THK,STL
09772 ORDER BY DESCR
I
210-0978-00
WASHER,FLAT:0.375 ID X 0.5 00 X 0.024,STL 12327 ORDER BY DESCR
-106 210-0590-00
NUT,PLAIN,HEX:0.375-32 X 0.438 BRS CD PL 73743 28269-402
(END ATTACHING PARTS)
-107
----- -----
CIRCUIT BREAKER:(SEE SW300 REPL)
(ATTACHING PARTS)
I
-108 210-0505-00 2
NUT,PLAIN,HEX:0.375-27 X 0.5 HEX,BRS CD PL 73743 2X32032-402
210-0978-00 1 WASHER,FLAT:0.375 ID X 0.5 00 X 0.024,STL
12327 ORDER BY DESCR
210-0012-00 1 WASHER,LOCK:0.384 ID.INTL,0.022 THK,STL
09772 ORDER BY DESCR
(END ATTACHING PARTS)
I
-100 333-1200-01
PANEL, FRONT:
80009 333-1200-01
-110 200-0937-00
CDV,VAR PWR TRA:5.8 X 3.319 X 3.18,AL ANDZ
80009 200-0037-DO
(ATTACHING PARTS)
-111 212-0023-00 2
SCREW,MACHINE:8-32 X 0.375,PNH,STL TK0435 ORDER BY DESCR
(END ATTACHING PARTS)
I
-112 426-0483-01
FRAME SECT,CAB.:BOTT()! CENTER
80009 426-0483-01
(ATTACHING PARTS)
-113 212-0023-00 2
SCREW,MACHINE:8-32 X 0.375,PNH,STL
TK0435 ORDER BY DESCR
-114 212-0043-00 1
SCREW,MACHINE:8-32 X 0.5,FLH,100 DEG,STL
TKD435 ORDER BY DESCR
I'-'
-115 220-0533-00 1
NUT STRIP:8-32 2.5 X 0.375 X 0.125,AL
80009 220-0533-00
(END ATTACHING PARTS)
-116 426-0470-01
1 FRAME PNL.CAB. :FRONT
80009 426-0470-D1
220-0534-00
2
.NUT,PLAIN,SPLN:10-24 X 0.29,BRASS
80009 220-0534-00
-117 131-0018-00
2
CONN, RCPT, ELEC: FEMALE 16 CONTACT
02660 26-190-16
I
(ATTACHING PARTS)
-118 211-0012-00
4
SCREW,MACHINE:4-40 X 0.375,PNH,STL
TKD435 ORDER BY DESCR
-119 210-0586-00
4 NUT,PL,ASSEM WA:4-40 X 0.25,STL CD PL
78189 211-041800-00
(END ATTACHING PARTS)
I
-120 131-0097-00
CONN,RCPT,ELEC:32 CONTACT,FEWILE
02660 26-190-32
(ATTACHING PARTS)
211-0012-00
2
SCREW,MACHINE:4-40 X 0.375,PNH,STL
TKD435 ORDER BY DESCR
210-0586-00
2
NUT,PL,ASSEM WA:4-40 X 0.25,STL CO PL
78189 211-041800-00
(END ATTACHING PARTS)
I
-121 131-0148-00
CONN,RCPT,ELEC:FEMALE,24 CONTACT
02660 26-190-24-1004
(ATTACHING PARTS)
-122
211-0012-00 2
SCREW,MACHINE:4-40 X 0.375,PNH,STL
TK0435 ORDER BY OESCR
-123
210-0586-00
2
NUT,PL,ASSEM WA:4-40 X 0.25,STL CD PL
78189 211-041800-00
I
(END ATTACHING PARTS)
650-0459-01
1
TEST FIXTURE:
80009 650-0459-01
-123.1 337-1194-00 8010100 8360671 1
.SHIELD,ELEC:TRANSISTOR
80009 337-1194-00
337-1194-01 8360672 8361319 1
.SHIELD,ELEC:TRANSISTOR
80009 337-1194-01
337-1194-02 8361320
1
.SHIELD,ELEC:TRANSISTOR
80009 337-1194-02
I
-124
----- -----
1
.. SHIELD,ELEC:TEST LID
.. (NOT AVAILABLE)
-125
-----
-----
2
.. HINGE,SPRING:HV HOUSING,CU BE NP
.. (NOT AVAILABLE)
I
-126
337-1148-00 8010100
8360671 1
.. SHIELD,ELEC:WRAPAROUND
80009 337-1148-00
337-1148-01 8360672 8361319
1
.. SHIELD,ELEC:WRAPAROUND
80009 337-1148-01
337-1148-02 8361320
1
.. SHIELD,ELEC:WRAPAROUND
80009 337-1148-02
-127
-----
-----
1
.. ADAPTER,SW ACTR:PUSH
.. (NOT AVAILABLE)
I
-128
----- -----
.. SPRING,HLCPS:0.19 00 X 0.6 L,CLOSED
.. (NOT AVAILABLE)
-129
----- -----
.. RETAINER,SPRING:ALUMINtJ.I
L'-'
.. (NOT AVAILABLE)
-130 386-1544-00
.PL,MTG,TEST ADA:10 HOLE
80009 386-1544-00
. (ATTACHING PARTS)
L
REV APR 1988
7-7
