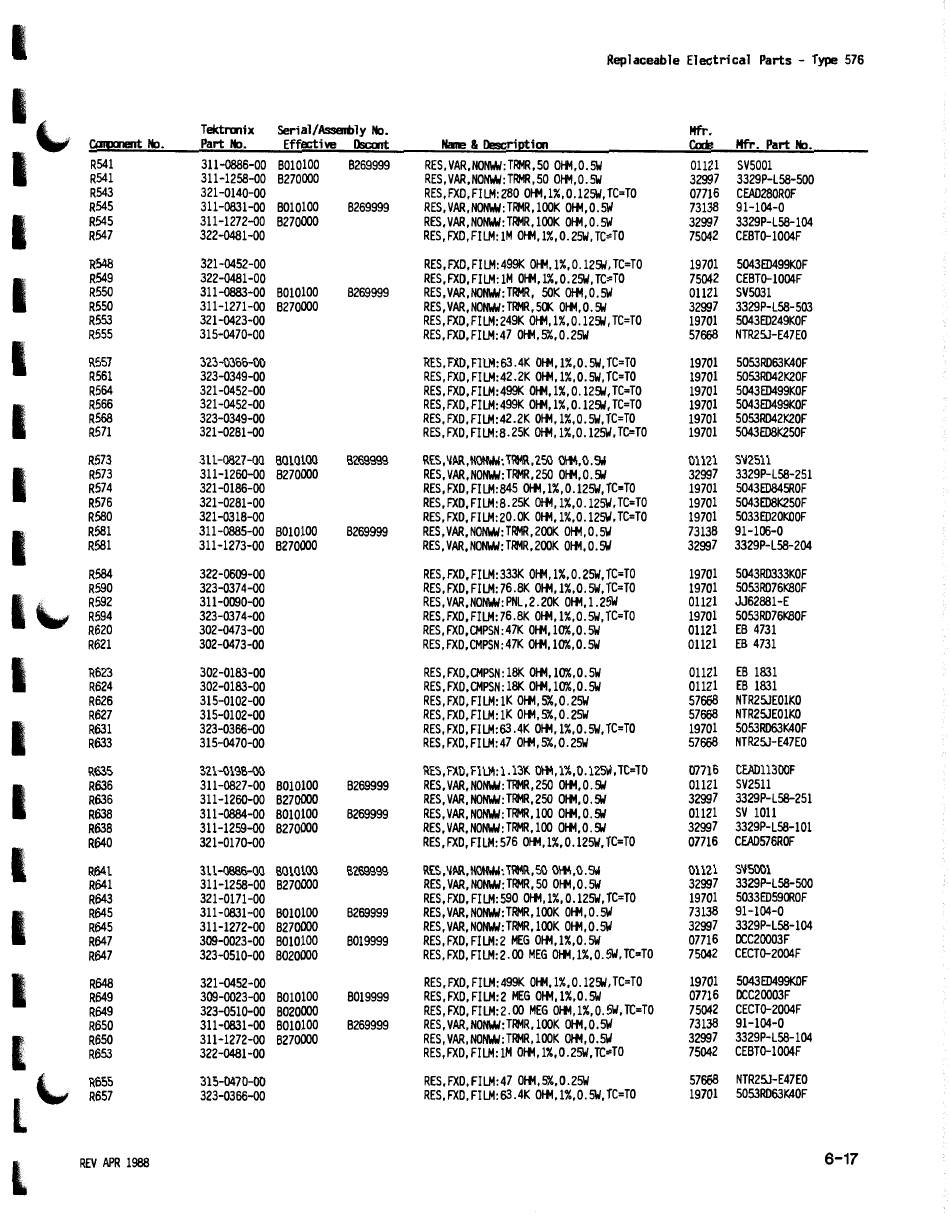

Tektronix CURVE-TRACER 576 Instruction Manual page 205

I
Replaceable Electrical Parts - Type 576
I
•""
Tektronix Serial/Assembly No.
Mfr.
Callla ll!nt
No
0
Part No. Effect he
Dscont
Nane &
Descril!!ion
Code Mfr.
Part No.
R541 311-0886-00 8010100
8269999 RES, VAR,NONW:TRMR,50 Olfl,O.SW 01121 SV5001
R541 311-1258-DO 8270000 RES, VAR,NONW:TRMR,50 Olfl,O.SW
32997 3329P-L58-500
R543
321-0140-00 RES,FXO,FILM:280 OHM,1%,0.125W,TC=TO 07716 CEA0280ROF
R545
311-0831-00 8010100 8269999 RES,VAR,NONW:TRMR,100K OHM,O.SW 73138 91-104-0
I
R545 311-1272-QO 8270000
RES,VAR,NO~:TRMR,100K
OHM,O.SW 32997 3329P-L58-104
R547 322-D481-00 RES,FXO,FILM:1M OHM,1%,0.25W,TC=TO
75042
CE8TQ-1004F
R548
321-0452-00 RES,FXO,FILM:499K OHM,1%,0.125W,TC=TO 19701 5043ED499KOF
I
R549 322-0481-00 RES,FXD,FILM:1M OHM,1%,0.25W,TC=TO 75042 CE8TQ-1 004F
R550 311-0883-00 8010100 8269999 RES,VAR,NONW:TRMR, SOK OHM,O.SW 01121 SV5031
R550 311-1271-QO 8270000 RES, VAR,NONW:TRMR,50K OHM,O.SW 32997 3329P-L58-503
R553 321-0423-00 RES,FXD,FILM:249K OHM,1%,0.125W,TC=TO 19701 5043ED249KOF
R555 315-0470-00 RES,FXD,FILM:47 OHM,S%,0.25W 57668 NTR25J-E47EO
I
R557 323-0366-00 RES,FXD,FILM:63.4K OHM,1%,0.5W,TC=TO 19701 5053RD63K40F
R561 323-0349-00 RES,FXD,FILM:42.2K OHM,1%,0.5W,TC=TO 19701 5053RD42K20F
R564 321-0452-00 RES,FXD,FILM:499K OHM,1%,0.125W,TC=TO 19701 5043ED499KOF
I
R566 321-0452-00 RES,FXD,FILM:499K OHM,1%,0.125W,TC=TO 19701 5043ED499KOF
R568 323-0349-00 RES,FXD,FILM:42.2K OHM,1%,0.5W,TC=TO 19701 5053RD42K20F
R571 321-0281-00 RES,FXD,FILM:8.25K OHM,1%,0.125W,TC=TO 19701 5043ED8K250F
R573
311-0827-00 8010100 8269999
RES,VAR,NONWW:TRMR,250 OHM,O.SW 01121 SV2511
I
R573
311-1260-00 8270000
RES, VAR,NONW:TRMR,250 OHM,O.SW
32997
3329P-L58-251
R574 321-0186-00 RES,FXD,FILM:845 OHM,1%,0.125W,TC=TO 19701 5043ED845ROF
R576 321-0281-00 RES,FXD,FILM:8.25K OHM,1%,0.125W,TC=TO 19701 5043ED8K250F
R580
321-0318-00
RES,FXD,FILM:20.0K OHM,1%,0.125W,TC=TO 19701 5033ED20KOOF
I
R581 311-0885-00 8010100 8269999 RES, VAR, NONWW: TRMR, 200K OHM, 0. 5W 73138 91-106-0
R581 311-1273-00 8270000 RES,VAR,NONWW:TRMR.200K OHM,O.SW 32997 3329P-L58-204
R584 322-0609-00
RES,FXD,FILM:333K OHM,1%,0.25W,TC=TO 19701 5043RD333KOF
R590
323-0374-00
RES,FXD,FILM:76.8K OHM,l%,0.5W,TC=TO 19701 5053RD76KBOF
l\r R592 311-0090-00 RES,VAR,NONW:PNL,2.20K OHM,1.25W 01121 JJ62881-E
R594 323-0374-00
RES,FXD,FILM:76.8K OHM,1%,0.5W,TC=TO 19701 5053RD76KBOF
R620 302-0473-00 RES,FXD,CMPSN:47K OHM,10%,0.5W 01121 E8 4731
R621 302-0473-00
RES,FXO,CMPSN:47K OHM,10%,0.5W 01121 E8 4731
I
R623 302-0183-00 RES,FXD,CMPSN:18K OHM,10%,0.5W
01121 E8 1831
R624 302-0183-00
RES,FXD,CMPSN:18K OHM,10%,0.5W 01121 E8 1831
R626 315-D102-00 RES,FXD,FILM:1K OHM,S%,0.25W
57668 NTR25JE01KO
R627 315-0102-00 RES,FXD,FILM:1K OHM,S%,0.25W 57668
NTR25JE01KO
I R631 323-0366-00 RES,FXD,FILM:63.4K OHM,1%,0.5W,TC=TO 19701
5053RD63K40F
R633 315-0470-00
RES,FXD,FILM:47 OHM,S%,0.25W
57668 NTR25J-E47EO
R635
321-0198-00 RES,FXD,FILM:1.13K OHM,1%,0.125W,TC=TO
07716 CEA011300F
I
R636 311-0827-00 8010100
8269999 RES,VAR,NONWW:TRMR,250 OHM,O.SW 01121
SV2511
R636 311-1260-00 8270000 RES,VAR,NO~:TRMR,250
OHM,O.SW 32997
3329P-L58-251
R638
311-0884-00 8010100 8269999 RES,VAR,NDNW:TRMR,100 OHM,O.SW
01121
sv
1011
R638
311-1259-00 8270000 RES,VAR,NONW:TRMR,100 OHM,O.SW
32997 3329P-L58-101
R640 321-0170-00
RES,FXD,FILM:576 OHM,1%,0.125W,TC=TO 07716
CEA0576ROF
I
R641
311-Q886-00 8010100 8269999
RES,VAR,NONWW:TRMR,50 OHM,O.SW 01121 SV5001
R641 311-1258-00 8270000
RES,VAR,NONWW:TRMR,50 OHM,O.SW
32997 3329P-L58-500
R643 321-0171-00
RES,FXD,FILM:590 OHM,1%,0.125W,TC=TO 19701
5033ED590ROF
I
R645 311-0831-DO 8010100 8269999
RES,VAR,NONWW:TRMR,100K OHM,O.SW
73138 91-104-0
R645
311-1272-00 8270000
RES, VAR,NONWW:TRMR,100K OHM,O.SW 32997
3329P-L58-104
R647 309-0023-00 8010100 8019999
RES,FXD,FILM:2 MEG OHM,1%,0.5W 07716
OCC20003F
R647
323-0510-00 8020000
RES,FXD,FILM:2.00 MEG OHM,1%,0.5W,TC=TO 75042
CECTQ-2004F
I
R648 321-0452-00
RES,FXD,FILM:499K OHM,1%,0.125W,TC=TO
19701 5043ED499KOF
R649
309-0023-00 8010100 8019999
RES,FXD,FILM:2 MEG OHM,1%,0.5W
07716 OCC20003F
R649
323-0510-00 8020000
RES,FXD,FILM:2.00 MEG OHM,1%,0.5W,TC=TO 75042
CECTD-2004F
R650
311-0831-00 8010100 8269999
RES,VAR,NONWW:TRMR,100K OHM,O.SW 73138
91-104-0
I
R650 311-1272-00 8270000
RES,VAR,NO~:TRMR,100K OHM,O.SW
32997
3329P-L58-104
R653 322-0481-00
RES,FXD,FILM:1M OHM,1%,0.2SW,TC=TO 75042
CEBTQ-1 004F
'
\.._,
R655 315-0470-00
RES,FXD,FILM:47 OHM,S%,0.25W 57668
NTR25J-E47EO
R657 323-0366-00
RES,FXD,FILM:63.4K OHM,1%,0.5W,TC=TO
19701
5053RD63K40F
l
L
REV APR 1988
6-17
