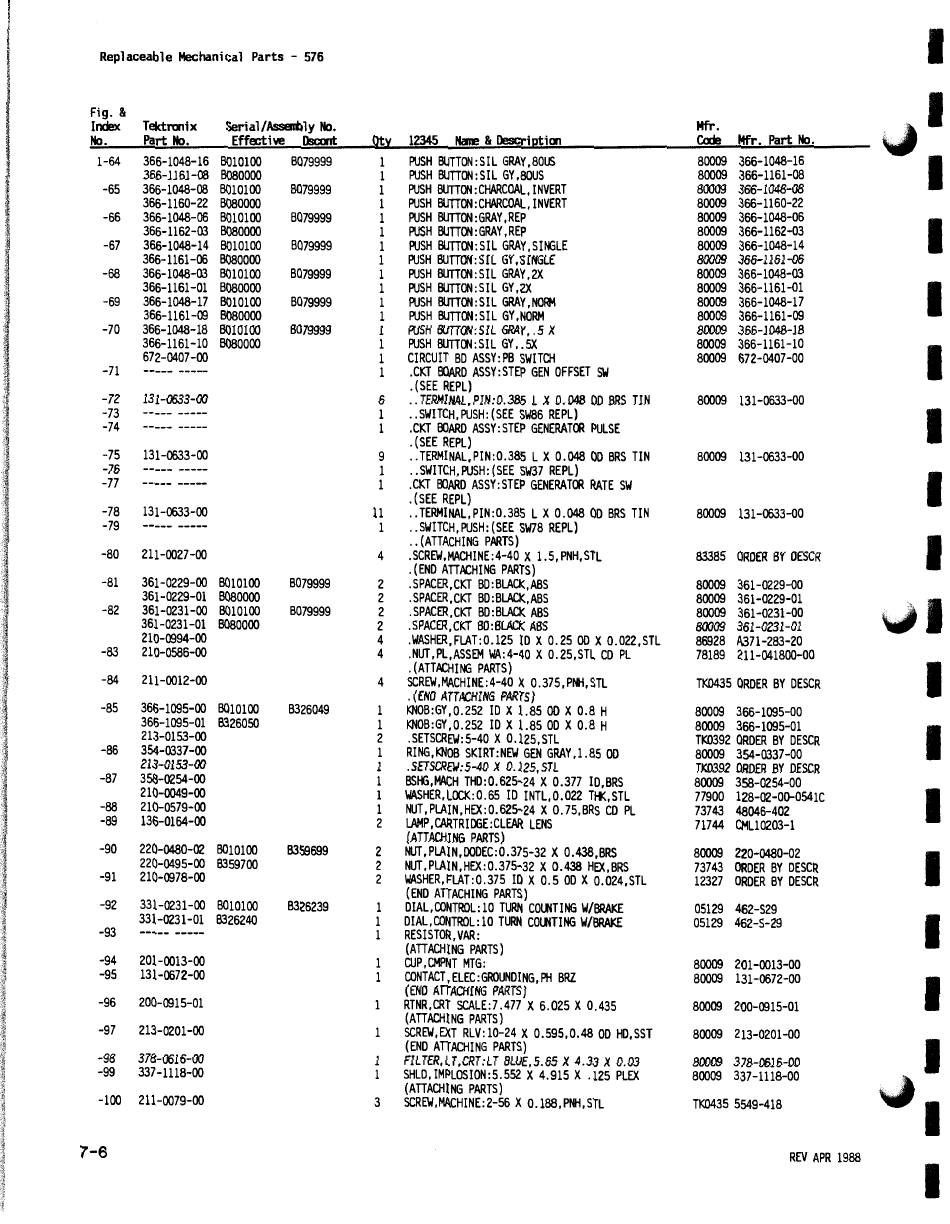

Tektronix CURVE-TRACER 576 Instruction Manual page 218

Replaceable Mechanical Parts - 576
I
Fig.
&
Mfr.
~·
Index Tektronix Serial/Assa!Dly
No.
No.
Part No.
Effective
Dscont
!l!)!
12345
Name
&
Descri~ion Cede Mfr. Part No.
1-64 366-1048-16 8010100
B079999 1
PUSH BUTTON: S I L GRAY, 80US 80009 366-1048-16
I
366-1161-08 8080000
1
PUSH BUTION:SIL GY,80US 80009 366-1161-08
-65 366-1048-08 8010100 8079999 1 PUSH BUTTON:CHARCOAL,INVERT 80009 366-1048-08
366-1160-22 8080000
1 PUSH BUTTON:CHARCOAL,INVERT
80009 366-1160-22
-66 366-1048-06 8010100 B079999 1 PUSH BUTTON:GRAY,REP 80009 366-1048-06
I
366-1162-03 8080000
1
PUSH BUTTON:GRAY ,REP 80009 366-1162-03
-67 366-1048-14 8010100 B079999 1 PUSH BUTTON:SIL GRAY ,SINGLE 80009 366-1048-14
366-1161-06 8080000 1 PUSH BUTTON:SIL GY,SINGLE 80009 366-1161-06
-68 366-1048-03 8010100 B079999 1 PUSH BUTTON: SIL GRAY, 2X 80009 366-1048-03
366-1161-01 B080000 1 PUSH BUTTON: S I L GY, 2X 80009 366-1161-01
I
-69 366-1048-17 8010100 B079999 1 PUSH BUTTON:SIL
GRAY,NO~
80009 366-1048-17
366-1161-09 8080000 1 PUSH BUTTON: S I L GY, NORM 80009 366-1161-09
-70
366-1048-18 8010100 B079999 1 PUSH BUTTON:SIL GRAY, .5 X 80009 366-1048-18
366-1161-10 8080000 1 PUSH BUTTON : S I L GY , . 5X 80009 366-1161-10
I
672-0407-00
1 CIRCUIT BD ASSY:PB SWITCH 80009 672-0407-00
-71
----- -----
1 .CKT BOARD ASSY:STEP GEN OFFSET SW
. (SEE REPL)
-72 131-0633-00
6 .. TERMINAL,PIN:0.385 LX 0.048 OD BRS TIN 80009 131-0633-00
-73
----- -----
1 .. SWITCH,PUSH:(SEE SW86 REPL)
I
-74
----- -----
1 .CKT OOARD ASSY:STEP GENERATOR PULSE
. (SEE REPL)
-75 131-0633-00
9 .. TERMINAL,PIN:0.385 LX 0.048 00 BRS TIN
80009 131-0633-00
-76
-----
-----
1 .. SWITCH,PUSH:(SEE SW37 REPL)
I
-77
-----
-----
1 .CKT BOARD ASSY:STEP GENERATOR RATE SW
. (SEE REPL)
-78 131-0633-00
11
.. TERMINAL,PIN:0.385 LX 0.048 OD BRS TIN
80009 131-0633-00
-79
-----
-----
1
.. SWITCH,PUSH:(SEE SW78 REPL)
.. (ATTACHING PARTS)
I
-80 211-0027-00
4
.SCREW,MACHINE:4-40 X 1.5,PNH,STL
83385 ORDER BY DESCR
. (END ATTACHING PARTS)
-81
361-0229-00 8010100 8079999
2 .SPACER,CKT BD:BLACK,ABS 80009 361-0229-QO
361-0229-01 8080000
2 .SPACER,CKT BD:BLACK,ABS
80009 361-0229-01
\JI
-82 361-0231-00 8010100
B079999
2 .SPACER,CKT BD:BLACK ASS
80009 361-0231-00
361-0231-01 8080000
2 .SPACER,CKT BD:BLACK ASS
80009 361-0231-01
210-0994-00
4 .WASHER,FLAT:0.125 ID X 0.25 00 X 0.022,STL
86928 A371-283-20
-83 210-0586-00
4
.NUT,PL,ASSEM WA:4-40 X 0.25,STL CD PL
78189 211-0418QO-OO
.(ATTACHING PARTS) I
-84 211-0012-00
4 SCREW,MACHINE:4-40 X 0.375,PNH,STL
TK0435 ORDER BY DESCR
.(END ATTACHING PARTS)
-85 366-1095-00 8010100
B326049
1
KNOB:GY,0.252 ID X 1.85 00 X 0.8 H
80009 366-1095-00
366-1095-01 8326050
1
KNOB:GY,0.252 ID X 1.85 OD X 0.8 H
80009 366-1095-01
I
213-0153-00
2 .SETSCREW:5-40 X 0.125,STL
TK0392 ORDER BY DESCR
-86 354-0337-00
1 RING,KNOB SKIRT:NEW GEN GRAY,l.85 00
80009 354-0337-00
213-0153-00
1
.SETSCREW:5-40 X 0.125,STL
TK0392 ORDER BY DESCR
-87
358-0254-00
1 BSHG,MACH THD:0.625-24 X 0.377 ID,BRS
80009 358-0254-00
210-0049-00
1
WASHER,LOCK:0.65 ID INTL,0.022 THK,STL
77900 128-02-0Q-0541C
I
-88 210-0579-00
1
NUT,PLAIN,HEX:0.625-24 X 0.75,BRS CD PL
73743 48046-402
-89 136-0164-00
2 LAMP,CARTRIDGE:CLEAR LENS
71744 CML10203-1
(ATTACHING PARTS)
-90 220-0480-02 8010100
8359699
2
NUT,PLAIN,DODEC:0.375-32 X 0.438,BRS
80009 220-0480-02
I
220-0495-00 8359700
2
NUT,PLAIN,HEX:0.375-32 X 0.438 HEX,BRS
73743 ORDER BY DESCR
-91
210-0978-00
2
WASHER,FLAT:0.375 ID X 0.5 OD X 0.024,STL
12327 ORDER BY DESCR
(END ATTACHING PARTS)
-92 331-0231-00 8010100
8326239
DIAL,CONTROL: 10 TURN COUNTING W/BRAKE
05129 462-S29
331-0231-01 8326240
DIAL,CONTROL:10 TURN COUNTING W/BRAKE
05129 462-S-29
I
-93
-----
-----
RESISTOR,VAR:
(ATTACHING PARTS)
-94 201-0013-00
1 CUP, CMPNT MTG:
80009 201-0013-00
-95 131-0672-00
1 CONTACT,ELEC:GROUNDING,PH BRZ
80009 131-0672-00
I
(END ATTACHING PARTS)
-96
200-0915-01
RTNR,CRT SCALE:7.477 X 6.025 X 0.435
80009 200-0915-01
(ATTACHING PARTS)
-97 213-0201-00
SCREW,EXT RLV:10-24 X 0.595,0.48 OD HD,SST
80009 213-0201-00
(END ATTACHING PARTS) I
-98 378-0616-00
FILTER,LT,CRT:LT BLUE,5.65 X 4.33 X 0.03
80009 378-0616-00
-99 337-lllS-00
SHLD,IMPLOSION:5.552 X 4.915 X .125 PLEX
80009 337-1118-00
~.
(ATTACHING PARTS)
-100 211-0079-00
3 SCREW,MACHINE:2-56 X 0.188,PNH,STL
TK0435 5549-418
7-6
REV APR 1988
