3–48
I/O Wiring and Specifications
F2–02DAS-1 Isolated 2 Channel 4–20mA Analog Output
Number of Channels 2, isolated (2 commons)
Output Ranges 4 to 20 mA
Resolution 16 bit (1 in 65536)
Output Type current sourcing
Loop supply 12–32VDC
"
Isolation voltage
channel to logic
Load Impedance 0–525 ohms
PLC update rate 1 channel per scan minimum
(D2–230 CPU)
2 channels per scan minimum
(D2–240 or D2–250 CPU)
"10 counts ("0.015% of full scale)
Linearity Error
(end to end) maximum
Conversion Settling 3ms to o.1% of full scale
time
"32 counts ("0.05%)
Gain Calibration Error
Offset Calibration Error "13 counts ("0.02%)
One count in the specification table is equal to one least significant bit of the analog data value (1 in 65536).
NOTE 1: Shields should be connected to the 0V terminal of the module.
NOTE 2: Loads must be within the compliance voltage.
NOTE 3: For non–isolated outputs, connect all 0V's together (0V1........0V2) and connect all +V's together (+V1........+V2).

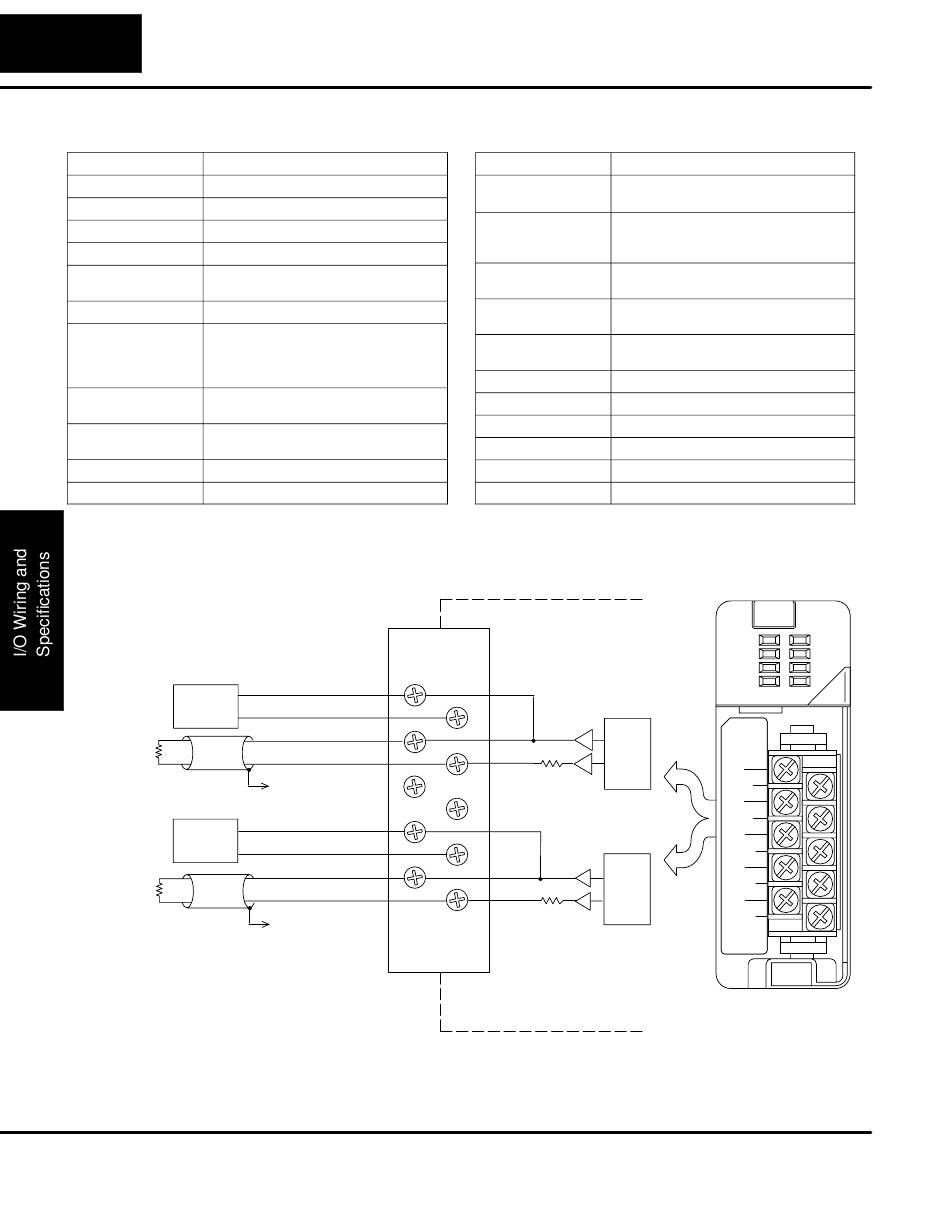

Typical User Wiring
Loop
Supply
12–32VDC
Ch 1 load
0–525 ohms
See NOTE 2
Loop
Supply
12–32VDC
Ch 2 load
0–525 ohms
See NOTE 2
DL205 Installation and I/O Manual, Rev. B
750V continuous, channel to channel,
–
+
See
NOTE 1
–
+
See
NOTE 1
Output Drift
Maximum Inaccuracy
Digital outputs
Output points
required
Power Budget
Requirement
External Power
Supply
Operating
Temperature
Storage Temperature
Relative Humidity
Environmental air
Vibration
Shock
Noise Immunity
Internal
Module
Wiring
0 V1
+V1
4–20 mA current sourcing
–I1
+I1
100 ohms
N/C
N/C
0V2
+V2
4–20 mA current sourcing
–I2
+I2
100 ohms
50 ppm/_C
"0.07% @ 77°F (25°C)
"0.18% @ 32 to 140°F (0 to 60_C)
32 (Y) output points
16 binary data bits, 2 channel ID bits
100 mA @ 5 VDC (supplied by base)
12 to 32 VDC, 50 mA / channel
32 to 140° F (0 to 60_ C)
–4 to 158° F (–20 to 70_ C)
5 to 95% (non-condensing)
No corrosive gases permitted
MIL STD 810C 514.2
MIL STD 810C 516.2
NEMA ICS3–304
OUT
F2-02DAS–1
18-32 VDC
ANALOG OUT
D to A
4-20mA
Converter
0V1
+V1
–I1
+I1
N/C
N/C
0V2
+V2
D to A
–I2
Converter
+I2
F2–02DAS–1
ANALOG
2CH
