3–16
I/O Wiring and Specifications
Wiring the Different
Module
Connectors
DL205 Installation and I/O Manual, Rev. B

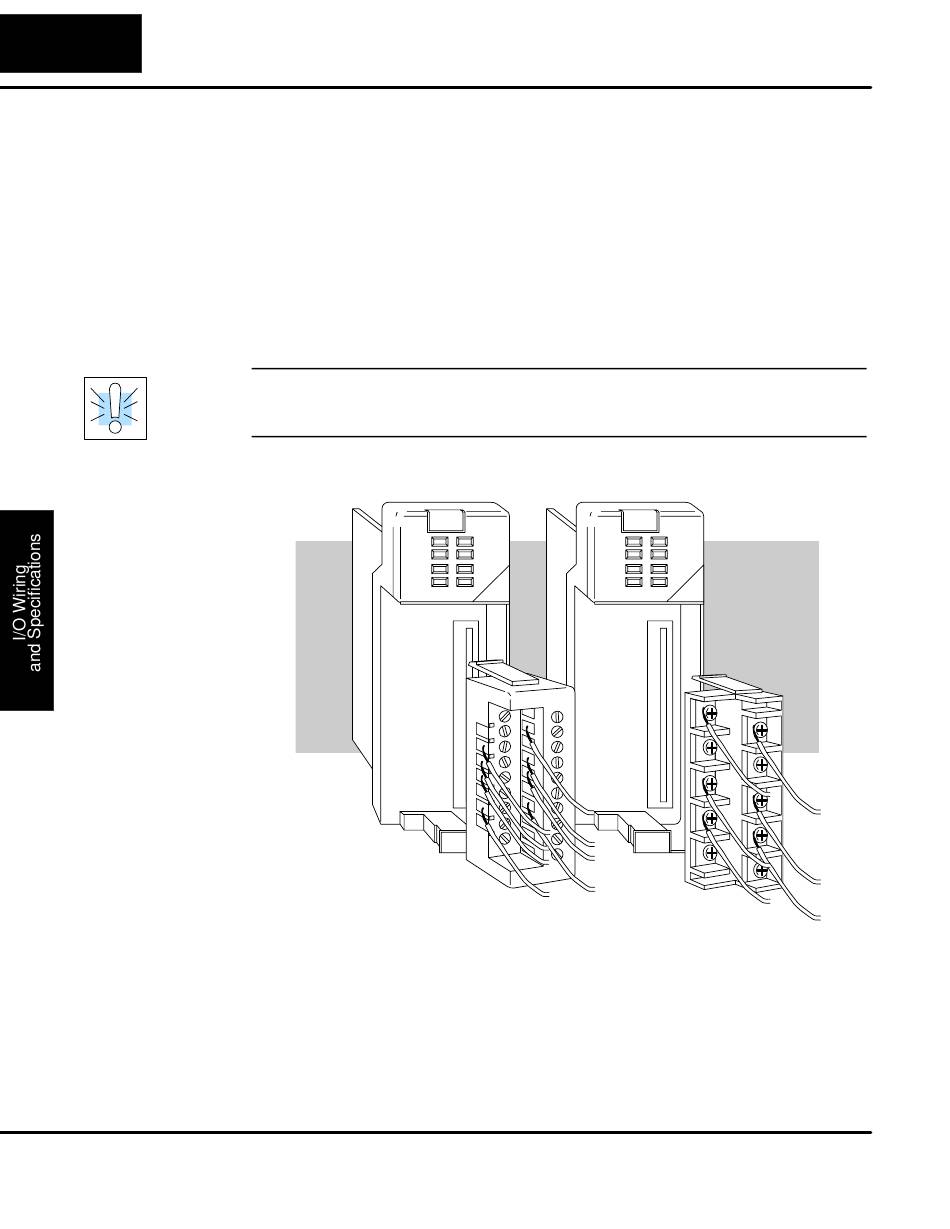

There are two types of module connectors for the DL205 I/O. Some modules have
normal screw terminal connectors. Other modules have connectors with recessed
screws. The recessed screws help minimize the risk of someone accidentally
touching active wiring.
Both types of connectors can be easily removed. If you examine the connectors
closely, you'll notice there are squeeze tabs on the top and bottom. To remove the
terminal block, press the squeeze tabs and pull the terminal block away from the
module.
We also have DIN rail mounted terminal blocks, DINnectors (refer to our catalog for a
complete listing of all available products). The DINnectors come with special
pre–assembled cables with the I/O connectors installed and wired.
WARNING: For some modules, field device power may still be present on the
terminal block even though the DL205 system is turned off. To minimize the risk of
electrical shock, check all field device power before you remove the connector.
