Communication Connector Module DN-15TB
Cables and PLC Modules
PLC Type
Cable Type
DL205
ZL-DN15TB-CBL
Application Note: DN-15TB for use in end-of-run wiring applications (point-to-point) only.
Not for use in middle station applications, such as in a multi-drop network.
WARNING : WIRE ONLY ACCORDING TO WIRING DIAGRAMS SHOWN BELOW TO
AVOID CAUSING DAMAGE TO THE PLC OR CONNECTOR MODULE. MATCH THE
CORRECT COMBINATION OF CABLE, PLC I/O MODULE, AND CONNECTOR MODULE AS SHOWN.
Wiring Diagram: Outputs
PLC DL 205
Type DL-250CPU
Cable ZL-DN15TB-CBL
Terminal
DSub 15-P
Block 15-P
1
A1
A2
2
3
A3
4
A4
5
A5
6
B1
7-8
B3-C3
9
B5
10
B2
C4
11
12
C1
13
B4
14
C5
15
C2
DN15TB
To download fullsize color .pdf Ziplink Wiring Diagrams
go to
www.Automationdirect.com
PLC Module Type
DL-250CPU
TERMINAL BLOCK
website
Connector Module Type
DN-15TB
DN15TB
Pg. 1
TM
REV 1.2
Advertisement
Related Manuals for Automation Direct DL205
Summary of Contents for Automation Direct DL205

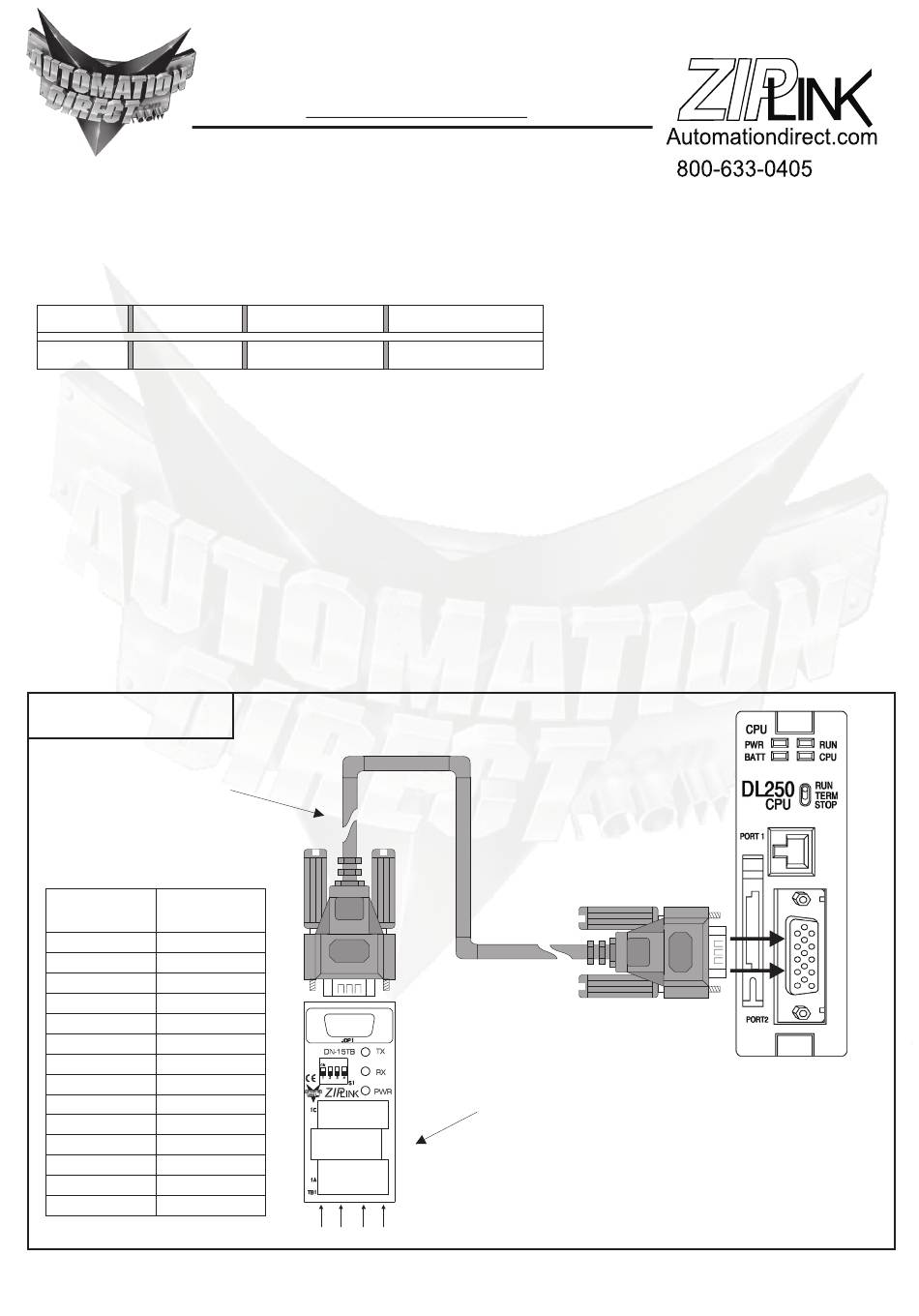

- Page 1 PLC Type Cable Type PLC Module Type Connector Module Type DN-15TB DL205 ZL-DN15TB-CBL DL-250CPU Application Note: DN-15TB for use in end-of-run wiring applications (point-to-point) only. Not for use in middle station applications, such as in a multi-drop network. WARNING : WIRE ONLY ACCORDING TO WIRING DIAGRAMS SHOWN BELOW TO AVOID CAUSING DAMAGE TO THE PLC OR CONNECTOR MODULE.
