Installation and Wiring
Component
Dimensions
DL205 Installation and I/O Manual, Rev. B

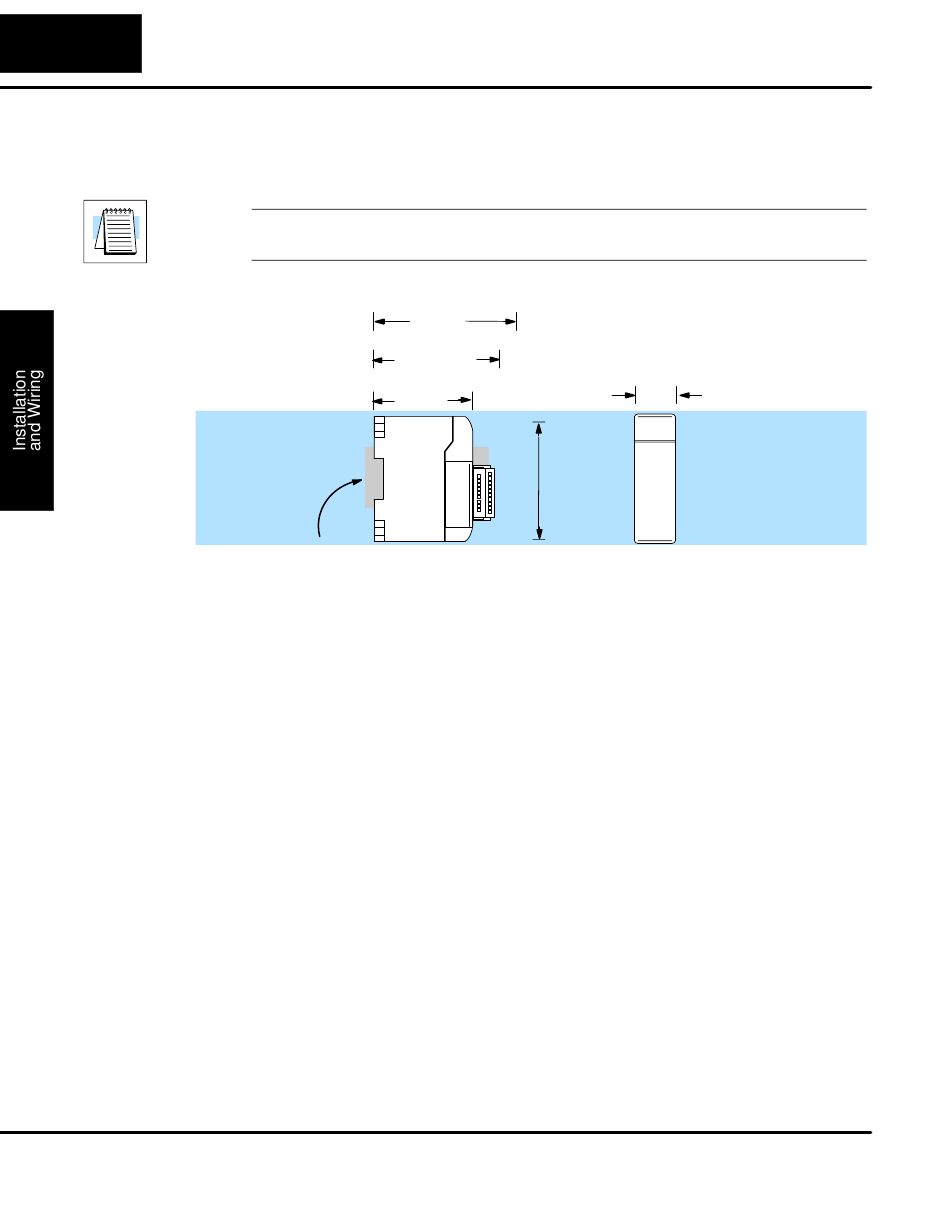

Before installing your DL205 system you will need to know the dimensions for the
components in your system. The diagrams on the following pages provide the
component dimensions and should be used to define your enclosure specifications.
Remember to leave room for potential expansion.
NOTE: If you are using other components in your system, make sure you refer to the
appropriate manual to determine how those units can affect mounting dimensions.
with 32pt.
ZIPLink cable
(113mm)
with
3.62"
12 or 16pt I/O
(92mm)
with
2.95"
4 or 8pt. I/O
(75mm)
DIN Rail slot.
I/O modules in Base
1.21"
30.8 mm
3.54 "
90 mm
