Mounting Guidelines; Base Dimensions - Automation Direct DL205 Manual

2–4
Installation and Wiring

Mounting Guidelines

Base Dimensions

with 32pt.
ZIPLink cable
12 or 16pt I/O
4 or 8pt. I/O
DIN Rail slot. Use rail conforming to
DIN EN 50022.
DL205 Installation and I/O Manual, Rev. B

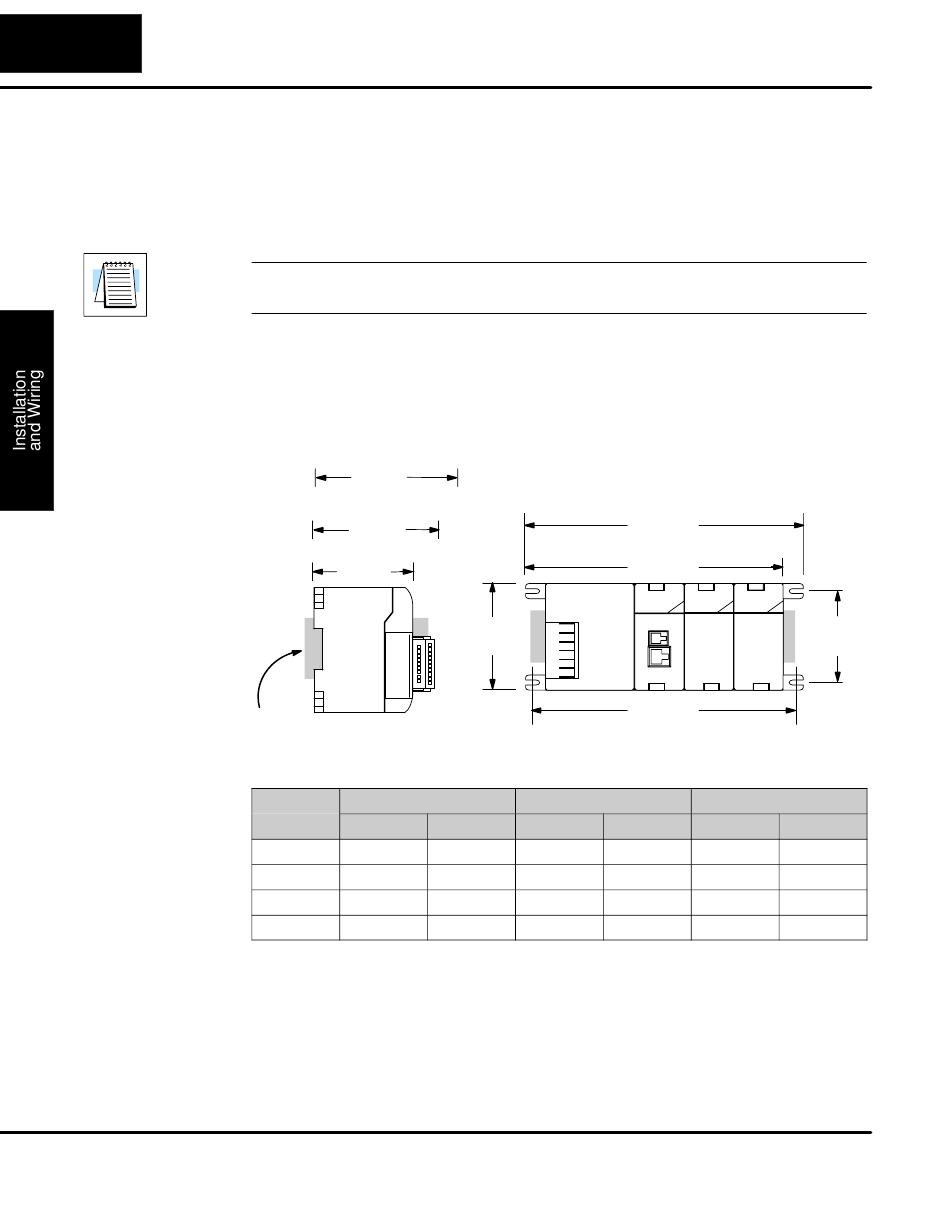

Before installing the DL205 system you will need to know the dimensions for the
components. The diagrams on the following pages provide the component
dimensions to use in defining your enclosure specifications. Remember to leave
room for potential expansion.
NOTE: If you are using other components in your system, refer to the appropriate
manual to determine how those units can affect mounting dimensions.
The following information shows the proper mounting dimensions. The height
dimension is the same for all bases. The depth varies depending on your choice of
I/O module. The length varies as the number of slots increase. Make sure you have
followed the installation guidelines for proper spacing.
4.45"
(113mm)
with
3.62"
(92mm)
with 2.95"
(75mm)
A (Total Width)
Base Base
Inches
3-slot 6.77"
4-slot 7.99"
6-slot 10.43"
9-slot 14.09"
3.54"
(90mm)
B (Mounting Hole)
Millimeters Inches Millimeters
172mm 6.41"
203mm 7.63"
265mm 10.07"
358mm 13.74"
A
C
B
C (Component Width)
Inches Millimeters
163mm 5.8" 148mm
194mm 7.04" 179mm
256mm 9.48" 241mm
349mm 13.14" 334mm
2.99"
(76mm)
