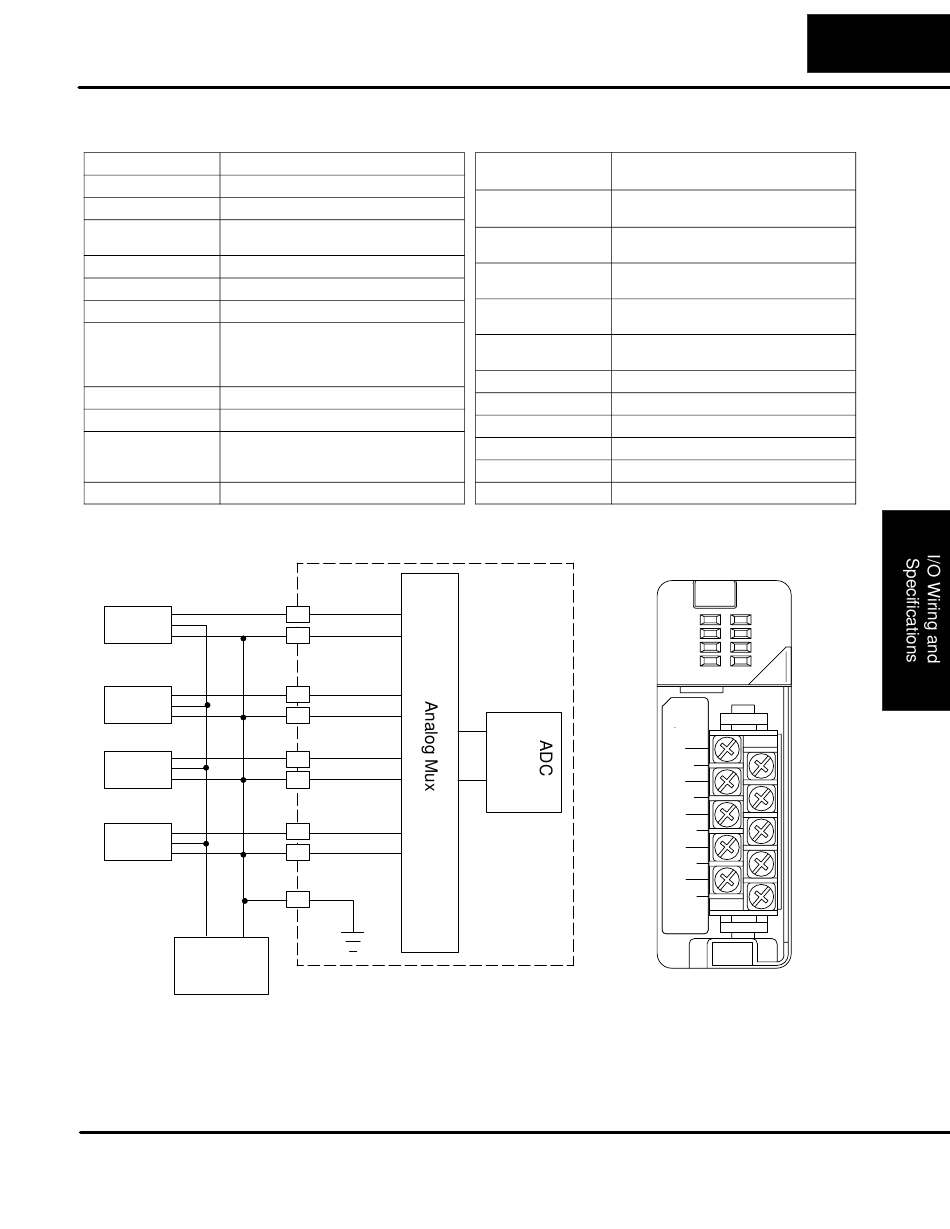

F2–08AD-2 8 Channel Voltage Analog Input
Number of Channels 8, single ended (one common)
0 to 5, 0 to 10, $5, $10 VDC
Input Ranges
Resolution 12 bit (0 to 4095) uni–polar
Active Low-pass –3 dB at 200Hz
Filtering (–6 dB per octave)
> 20 MW
Input Impedance
Absolute Max Ratings –75 to +75 VDC
Converter type Successive approximation
Conversion Time 1 channel per scan minimum
(PLC update rate) (D2–230 CPU)
8 channels per scan maximum
(D2–240 or D2–250 CPU)
"1 count ($0.025% of full scale) max
Linearity Error
"1 count
Input Stability
"3 counts maximum
Full Scale Calibration
Error (offset error not
included)
Offset Calibration Error "1 count maximum (0V input)
One count in the specification table is equal to one least significant bit of the analog data value (1 in 4096).
Includes circuitry to automatically detect broken or open transmitters.
CH1+
CH1+
Voltage
CH2+
Transmitter
CH3+
CH3+
Voltage
CH4+
Transmitter
CH5+
CH5+
Voltage CH6+
Transmitter
CH7+
CH7+
Voltage
CH8+
Transmitter
0 VDC
+ –
Transmitter
Supply
Note 1: Connect unused channels (CH2+, CH4+,CH6+, CH8+, COM)
I/O Wiring and Specifications
".1% @ 77°F (25°C)
Maximum inaccuracy
".3% 32° to 140°F (0 to 60_C)
"50 ppm/_C maximum full scale
Accuracy vs.
Temperature (including max. offset change of 2 counts)
Digital Inputs 16 (X) input points
Input points required 12 binary data bits, 3 channel ID bits
Power Budget 60 mA maximum, 5 VDC
Requirement (supplied by base)
External 80 mA maximum, +18 to +26.4 VDC
Power Supply
Operating 32 to 140° F (0 to 60_ C)
Temperature
Storage Temperature
–4 to 158° F (–20 to 70_ C)
Relative Humidity 5 to 95% (non-condensing)
Environmental air No corrosive gases permitted
Vibration MIL STD 810C 514.2
Shock MIL STD 810C 516.2
Noise Immunity NEMA ICS3–304
DL205 Installation and I/O Manual, Rev. B
3–41
IN ANALOG
F2–08AD–2
18-26.2VDC
80mA
ANALOG IN
0-5VDC
-5 +5VDC
0V
+24V
CH1+
CH2+
CH3+
CH4+
CH5+
CH6+
CH7+
CH8+
F2–08AD–2
