F2–04AD-1L 4 Channel 4–20mA Analog Input
This module requires a 12VDC user power supply for operation. See the F2–04AD–1 if you want to use a 24VDC supply.
Number of Channels 4, single ended (one common)
Input Ranges 4 to 20 mA current
Resolution 12 bit (1 in 4096)
Active Low-pass –3 dB at 20Hz, 2 poles
Filtering (–12 dB per octave)
250W "0.1%, ½W current input
Input Impedance
Absolute Maximum –40 mA to +40 mA, current input
Ratings
Converter type Successive approximation
Conversion Time 1 channel per scan minimum
(PLC update rate) (D2–230 CPU)
4 channels per scan minimum
(D2–240 or D2–250 CPU)
"1 count (0.025% of full scale) maximum
Linearity Error
(End to End)
"1 count
Input Stability
"12 counts max., @ 20mA current input
Full Scale Calibration
Error (offset error not
included)
Offset Calibration Error "7 counts max., @ 4mA current input
One count in the specification table is equal to one least significant bit of the analog data value (1 in 4096).
NOTE 1: Shields should be grounded at the signal source

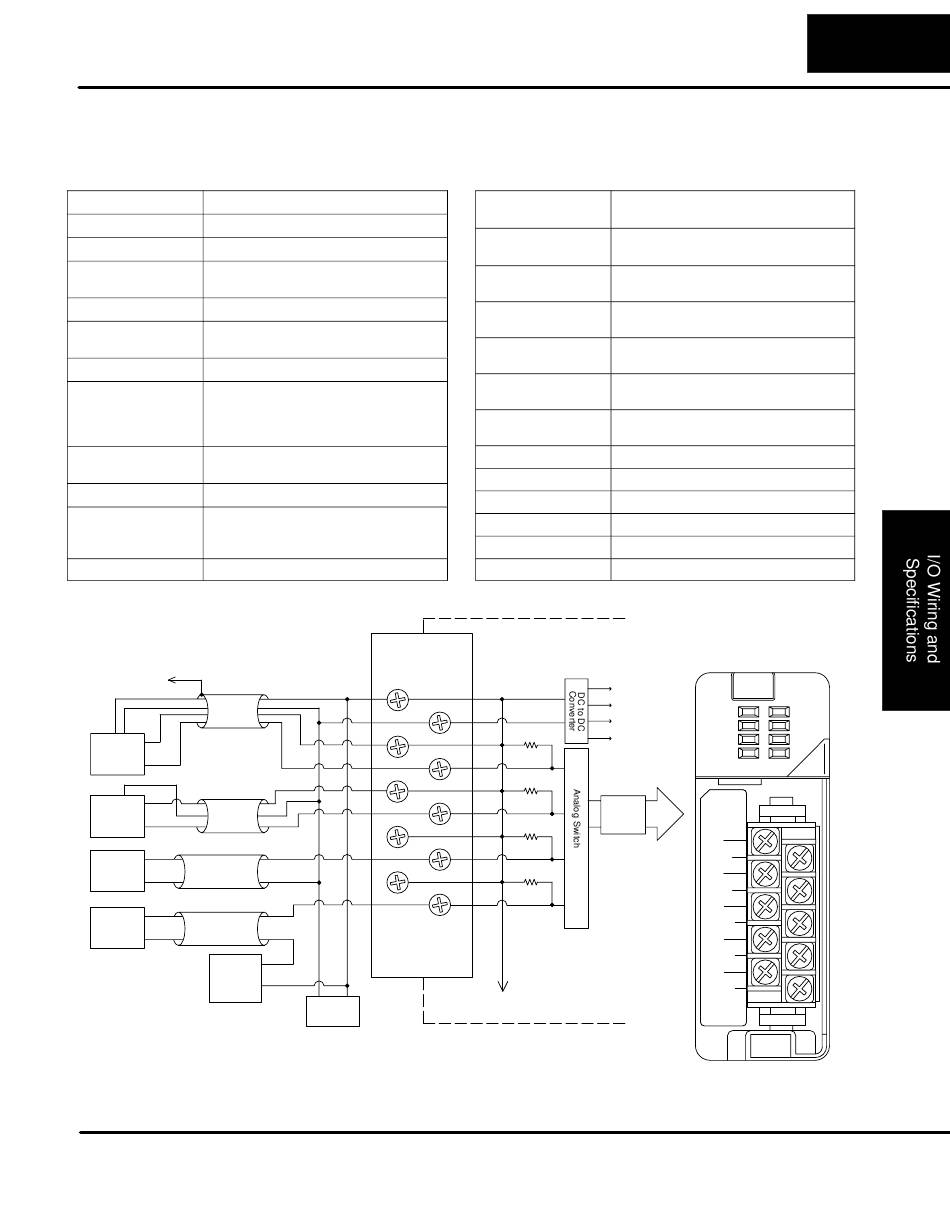

Typical User Wiring
See NOTE 1
– +
–
CH1
4–wire
+
4–20mA
Transmitter
+
–
CH2
3–wire
+
4–20mA
Transmitter
–
CH3
2-wire
+
4–20mA
Transmitter
–
CH4
2-wire
+
4–20mA
Transmitter
Optional
External
P/S
More than one external power supply can be used provided all the power supply commons are connected.
A Series 217, 0.032A, fast-acting fuse is recommended for 4–20mA current loops.
If the power supply common of an external power supply is not connected to 0VDC on the
module, then the output of the external transmitter must be isolated. To avoid "ground loop"
errors, recommended 4–20mA transmitter types are:
2 or 3 wire: Isolation between input signal and power supply.
0 VDC
+12VDC
CH1-
CH1+
CH2-
CH2+
CH3-
CH3+
CH4-
CH4+
+
–
+ –
10–15VDC
4 wire:
I/O Wiring and Specifications
".5% @ 77°F (25°C)
Maximum inaccuracy
".65% 32 to 140°F (0 to 60_C)
"50 ppm/_C maximum full scale
Accuracy vs.
Temperature (including max. offset change)
Recommended Fuse 0.032 A, Series 217 fast-acting,
current inputs
Digital Inputs 16 (X) input points
Input points required 12 binary data bits, 2 channel ID bits
Power Budget 60 mA maximum, 5 VDC
Requirement (supplied by base)
External 90 mA maximum, +10 to +15 VDC
Power Supply
Operating 32 to 140° F (0 to 60_ C)
Temperature
Storage Temperature –4 to 158° F (–20 to 70_ C)
Relative Humidity 5 to 95% (non-condensing)
Environmental air No corrosive gases permitted
Vibration MIL STD 810C 514.2
Shock MIL STD 810C 516.2
Noise Immunity NEMA ICS3–304
Internal
Module
Wiring
+5V
+15V
0V
250W
–15V
250W
A to D
Converter
250W
250W
OV
Isolation between input signal, power supply, and 4–20mA output
DL205 Installation and I/O Manual, Rev. B
3–37
IN ANALOG
4CH
F2–04AD–1L
10-15VDC
80mA
ANALOG IN
4-20mA
0V
+12V
CH1–
CH1+
CH2–
CH2+
CH3–
CH3+
CH4–
CH4+
F2–04AD–1L
