2–12
Installation and Wiring

Base Wiring Guidelines

Base Wiring

DL205 Installation and I/O Manual, Rev. B

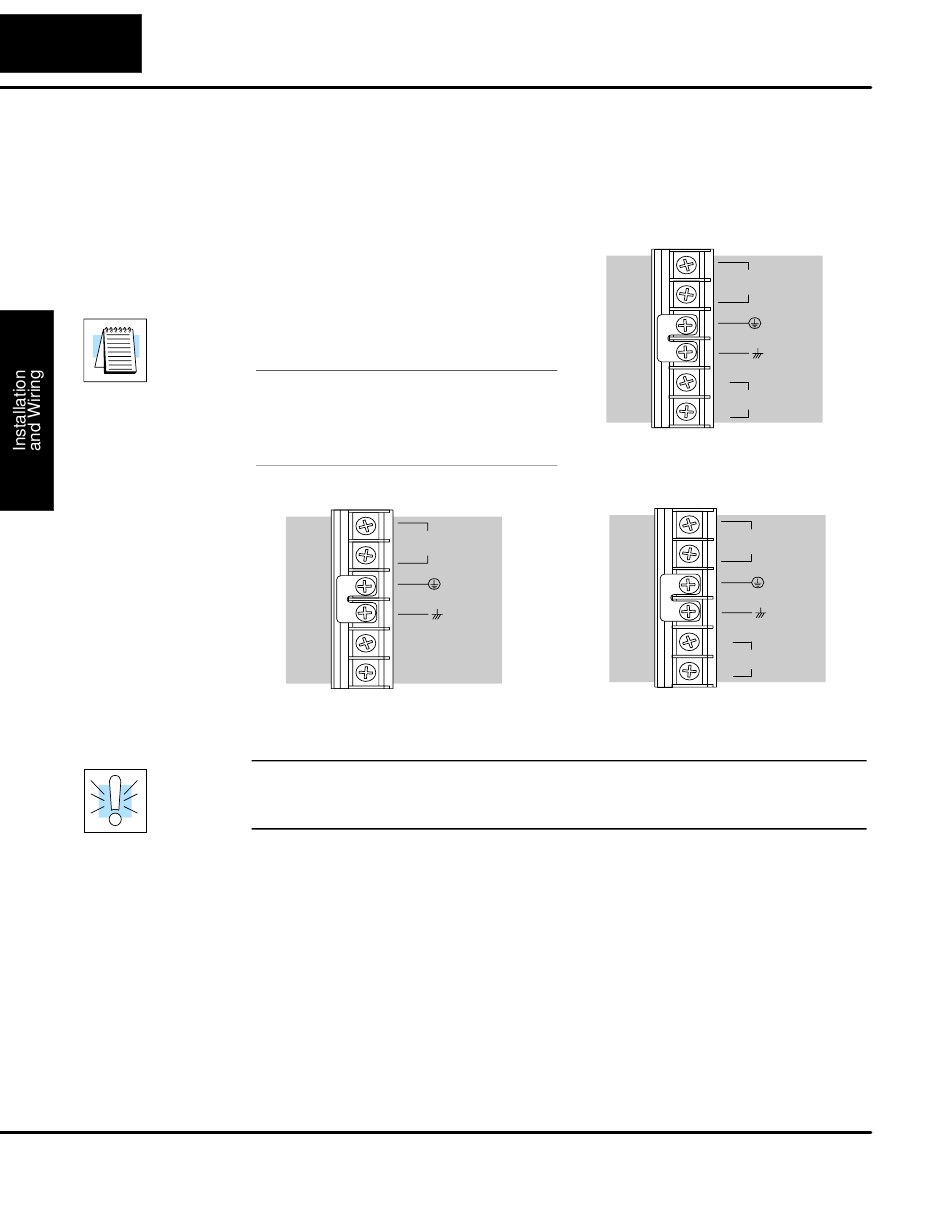

The
diagrams
show
connections located on the power supply
of the DL205 bases. The base terminals
can accept up to 16 AWG. You may be
able to use larger wiring depending on
the type of wire used, but 16 AWG is the
recommended size. Do not overtighten
the connector screws; recommended
torque value is 7.81 pound-inches (0.882
N•m).
NOTE: You can connect either a 115
VAC or 220 VAC supply to the AC
terminals. Special wiring or jumpers are
not required as with some of the other
DirectLOGIC
products.
12/24 VDC Base Terminal Strip
12 – 24 VDC
WARNING: Once the power wiring is connected, install the plastic protective cover.
When the cover is removed there is a risk of electrical shock if you accidentally touch
the wiring or wiring terminals.
the
terminal
110/220 VAC Base Terminal Strip
125 VDC Base Terminal Strip
+
G
LG
85 – 264 VAC
G
LG
+
24 VDC OUT
0.3A
115 – 264 VDC
G
LG
+
24 VDC OUT
0.3A
