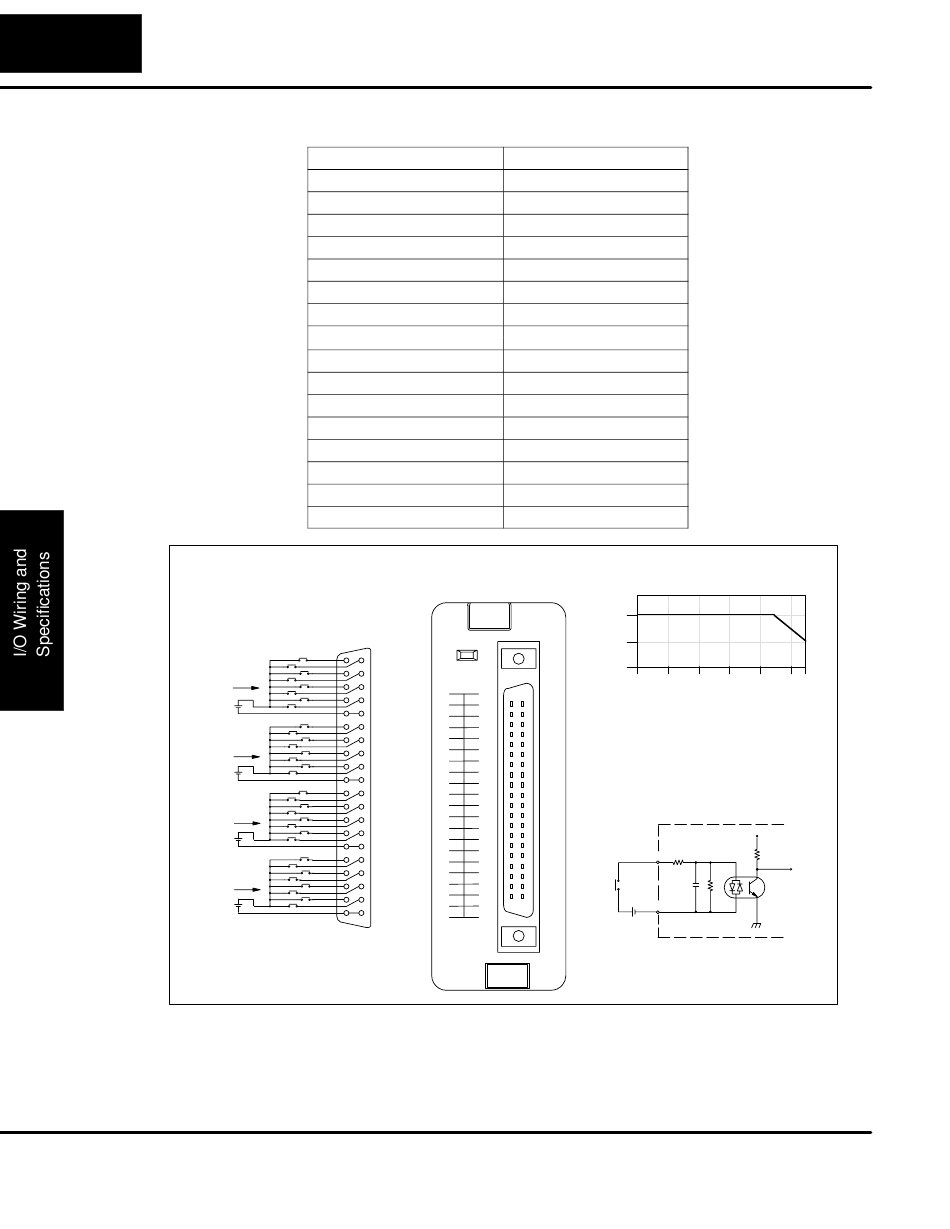

I/O Wiring and Specifications
24VDC
24VDC
24VDC
24VDC
DL205 Installation and I/O Manual, Rev. B
D2–32ND3 DC Input
Inputs per module
Commons per module
Input voltage range
Peak voltage
AC frequency
ON voltage level
OFF voltage level
Input impedance
Input current Input current
Minimum ON current
Maximum OFF current
Base power required
OFF to ON response
ON to OFF response
Terminal type
Status Indicator
Weight
A0
A4
A1
A5
Current Flow
A2
A6
+
A3
A7
COM I
–
B0
B4
B1
B5
B2
Current Flow
B6
+ B3
B7
COM II
–
C0
C4
C1
C5
C2
Current Flow
C6
+ C3
C7
COM III
–
D0
D4
D1
D5
D2
Current Flow
D6
+ D3
D7
– COM IV
32 (sink/source)
4 (8 I/O terminal points)
20–28 VDC
30 VDC
n/a
19 VDC minimum
7 VDC maximum
4.8 K
8.0 mA @ 24 VDC 8.0 mA @ 24 VDC
3.5 mA
1.5 mA
25 mA max
3 to 9 ms
3 to 9 ms
40-pin Connector
Module Activity LED
2.1 oz. (60 g)
Points
IN 24
32
VDC
ACT
16
0
D2–32ND3
A0 A4
A5
A1
A2 A6
A3 A7
CI CI
B0 B4
B5
B1
B2 B6
B3 B7
CII CII
C0 C4
C1 C5
C2 C6
C3 C7
CIII
CIII
D0 D4
D1 D5
D2 D6
D3 D7
CIV
CIV
22–26VDC
4–6mA
CLASS2
Derating Chart
0 10 20 30 40 50 55
32 50 68 86 104 122 131
Ambient Temperature (°C/°F)
Internal module circuitry
V+
INPUT
To Logic
Optical
COM
Isolator
+
24 VDC
Configuration shown is current sinking
C °
F °
