Installing DL205 Bases

Choosing the Base The DL205 system offers four different sizes of bases and three different power
Type supply options.

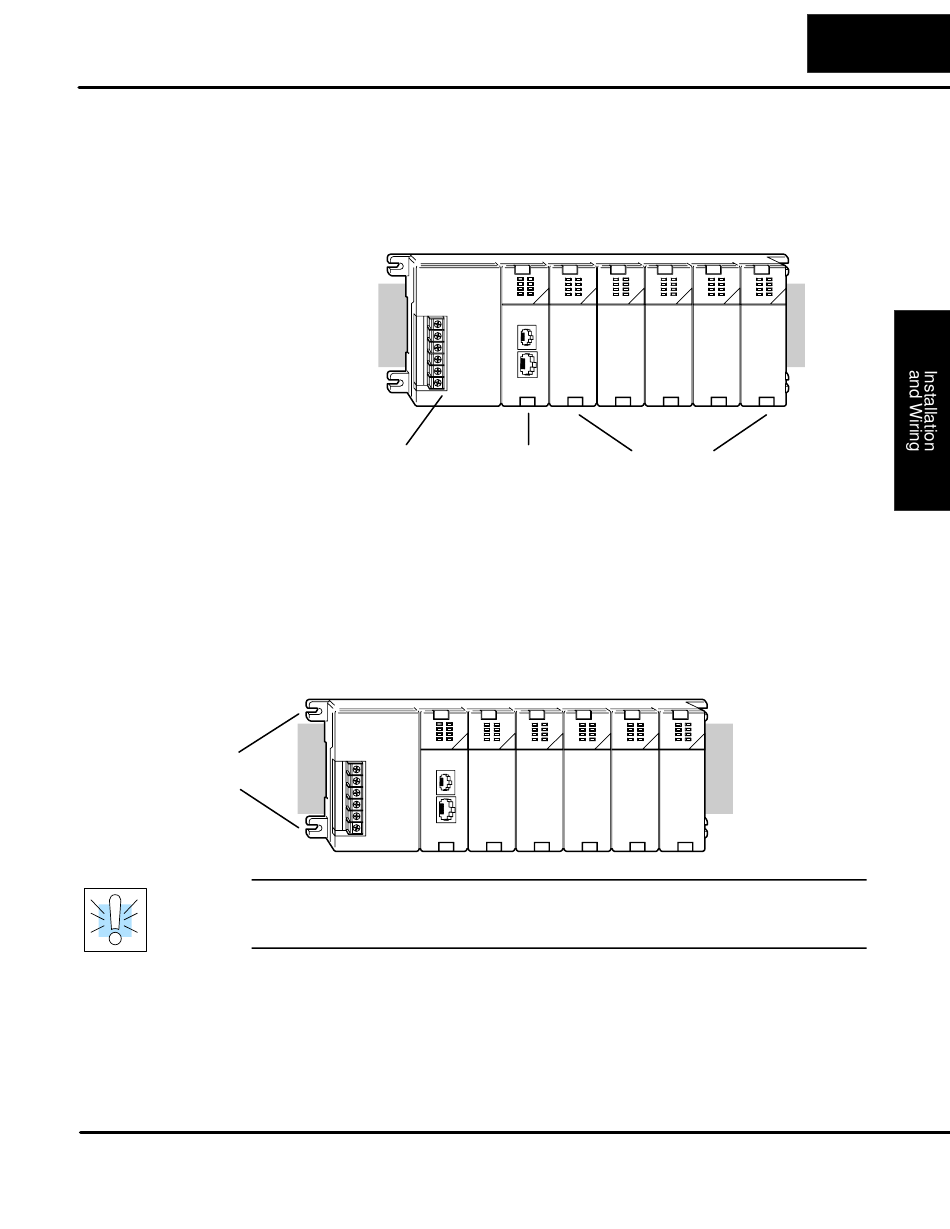

The following diagram shows an example of a 6-slot base.
Your choice of base depends on three things.

Mounting the Base

All I/O configurations of the DL205 may use any of the base configurations. The
bases are secured to the equipment panel or mounting location using four M4
screws in the corner tabs of the base. The full mounting dimensions are given in the
previous section on Mounting Guidelines.
Mounting Tabs
WARNING: To minimize the risk of electrical shock, personal injury, or equipment
damage, always disconnect the system power before installing or removing any
system component.
Power Wiring
Connections
•
Number of I/O modules required
•
Input power requirement (AC or DC power)
S
Available power budget
Installation and Wiring
CPU Slot
I/O Slots
DL205 Installation and I/O Manual , Rev. B
2–9
