Handicare Freecurve Technical Manual page 36

Handicare Freecurve
3D-view
CAUSE
On the webshop you can find a set of springs (art nr. B0020600):
•
B5110300/500 for manual folding
•
B5110320/520 for footrest linkage
Schematics
Version 1.0
36

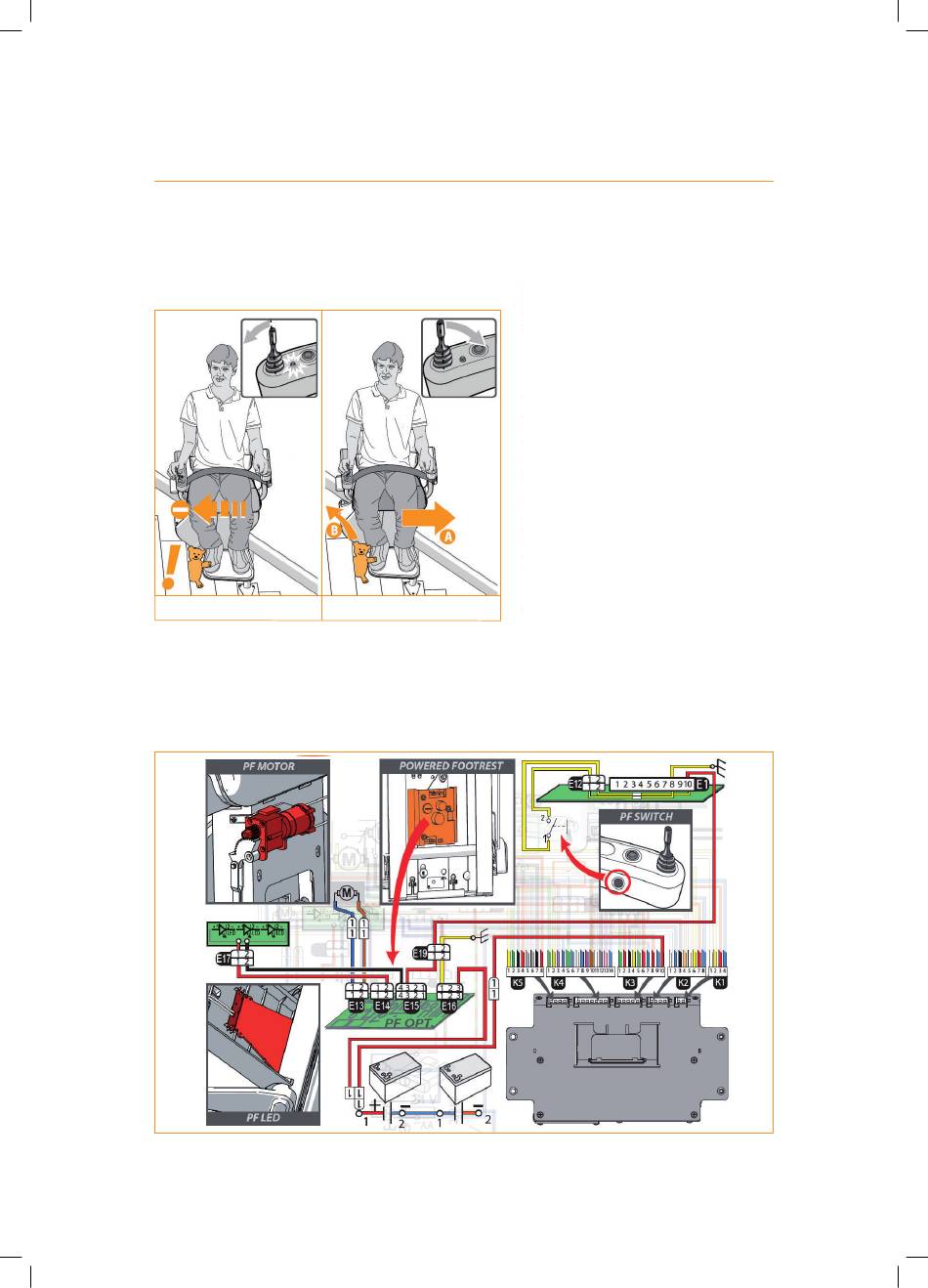

The footrest-detection:
•
Footrest detection
•
The LED in the armrest will blink when the
joystick is operated in the blocked direction.
•
The chair lift stops automatically in the event
that an object becomes jammed between the
footrest and the stairs.
•
The chair lift can move again only once the
control on the chair or the remote control has
been used to move the lift in the opposite
direction and the obstacle has been removed.
SOLUTION
- Both sides
- Frontside
- Underside
- Underside when folded
37
