3.3 FLOW RATE AND AIRFLOW GRAPHS
The graphs below indicate the operating limits of the EC fans installed on the units.
The reported static head must be considered useful for the ducts.

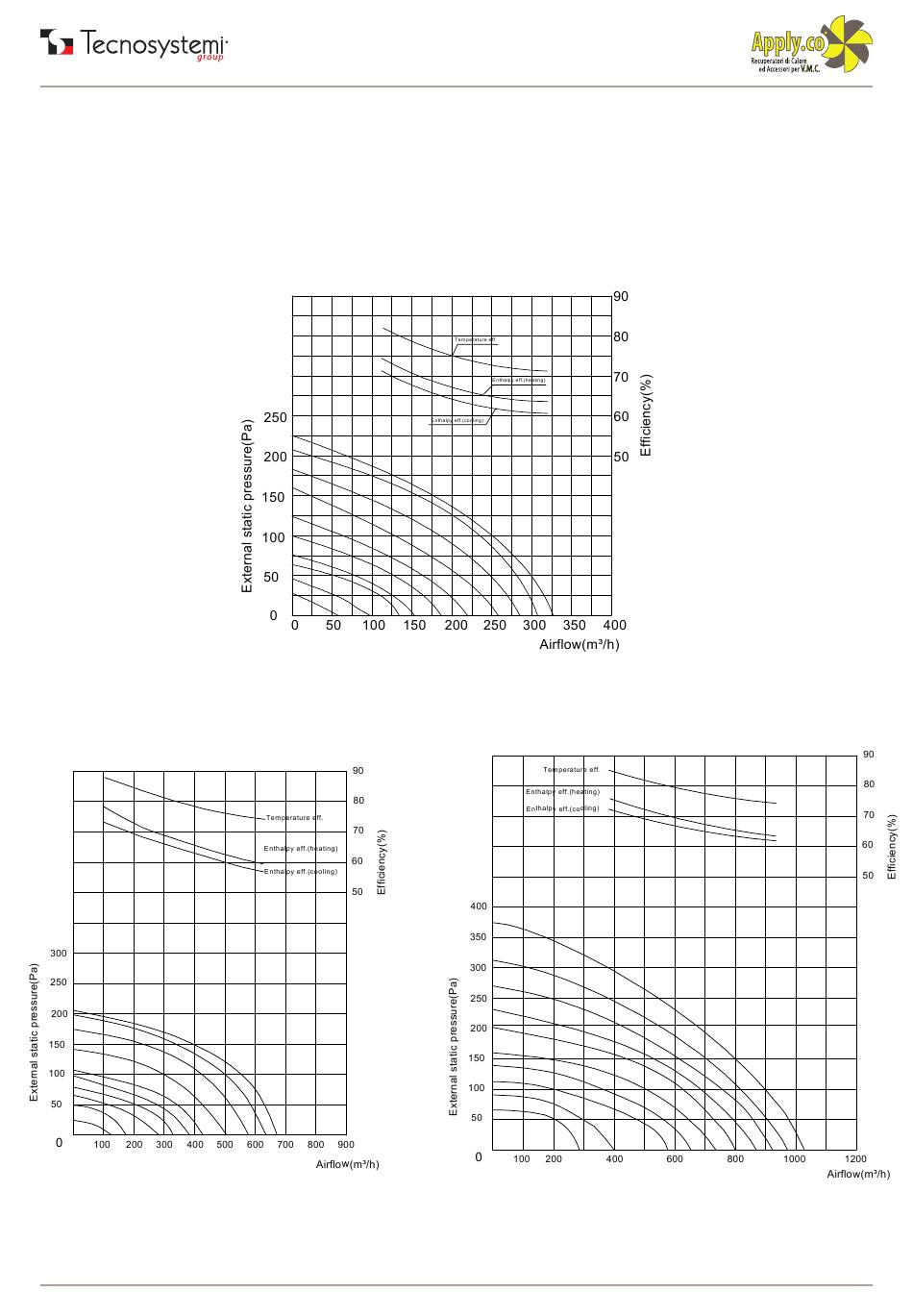

Performance Chart ACD300002
Performance Chart ACD300004
Performance Chart ACD300003
