USER MANUAL

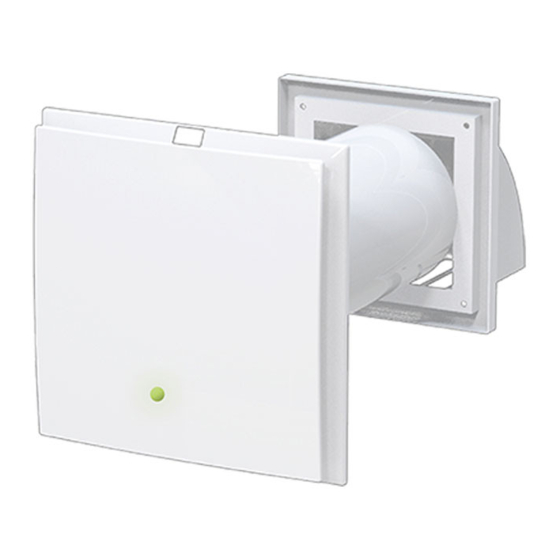

"PICO WI HP2" - WALL-MOUNTED, STATIC INTAKE /
EXTRACTOR FAN WITH HEAT RECOVERY, EQUIPPED WITH EXTERNAL
POWER SUPPLY OR WITH BUILT-IN POWER SUPPLY
ACD100001 - ACD100002 - ACD100003 - ACD100004 - ACD100005 - ACD100006
ACD100007 - ACD100008 - ACD100009 - ACD100010 - ACD100011 - ACD100012
ACD100013 - ACD100014 - ACD100015 - ACD100016 - ACD100017 - ACD100018
"PICO WI RECO 100" - WALL-MOUNTED CROSS FLOW STATIC INTAKE
EXTRACTOR FAN WITH HEAT RECOVERY EQUIPPED WITH EXTERNAL
POWER SUPPLY OR WITH BUILT-IN POWER SUPPLY
ACD100019 - ACD100020 - ACD100021 - ACD100022 - ACD100023 - ACD100024
-
C
Accessories for
Air Conditioning
Ventilation
Solutions
- -
C CO2
Air Curtains and
Accessories
Instruments &
01
-
C
WI-FI
COMFORT
Multi - Zone
Air Control System
Tools
- -
C CO2
CO2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tecnosystemi PICO WI HP2 Series
Summary of Contents for Tecnosystemi PICO WI HP2 Series
- Page 1 USER MANUAL "PICO WI HP2" - WALL-MOUNTED, STATIC INTAKE / EXTRACTOR FAN WITH HEAT RECOVERY, EQUIPPED WITH EXTERNAL POWER SUPPLY OR WITH BUILT-IN POWER SUPPLY ACD100001 - ACD100002 - ACD100003 - ACD100004 - ACD100005 - ACD100006 ACD100007 - ACD100008 - ACD100009 - ACD100010 - ACD100011 - ACD100012 ACD100013 - ACD100014 - ACD100015 - ACD100016 - ACD100017 - ACD100018 "PICO WI RECO 100"...
-
Page 2: Safety Requirements
Multi - Zone Air Control System INTRODUCTION Instruments & Ventilation Tools Solutions This manual includes the technical description, operation, installation and assembly instructions, technical data for the intake extractor unit with energy regeneration “PICO HP2”, “PICO RECO 100”, hereinafter referred to as recovery unit. Accessories For Heating SAFETY REQUIREMENTS... -
Page 3: Assembly Warnings
Multi - Zone Air Control System ASSEMBLY WARNINGS Instruments & Ventilation Tools Solutions The recovery unit must not be used The recovery unit must be outside the temperature range, disconnected from the mains indicated in the user manual, supply before carrying out any or in aggressive or explosive Accessories installation or repair operation. - Page 4 Multi - Zone Air Control System DIMENSIONS “PICO HP2” Instruments & Ventilation Tools Solutions Ø Accessories For Heating Ø DIMENSIONS AND MODELS (mm) (mm) (mm) (mm) (mm) (mm) (mm) ACD100001 / ACD100004 ACD100002 / ACD100005 ACD100003 / ACD100006 Ø DIMENSIONS AND MODELS (mm) (mm) (mm)
- Page 5 Multi - Zone Air Control System DIMENSIONS “PICO RECO 100” Instruments & Ventilation Tools Solutions Accessories For Heating Ø DIMENSIONS AND MODELS (mm) (mm) (mm) (mm) (mm) (mm) ACD100019 ACD100020 Ø DIMENSIONS AND MODELS (mm) (mm) (mm) (mm) (mm) (mm) ACD100021 ACD100022 Ø...
- Page 6 Multi - Zone Air Control System OPERATION OF RECOVERY UNITS Instruments & Ventilation MODEL “PICO HP2” AND MODEL “PICO RECO 100” Tools Solutions The recovery unit consists of a fixed length circular air duct, ventilation unit and external grille. Accessories The two motors, two filters and the exchanger are inside the duct.
- Page 7 Multi - Zone Air Control System CONSTRUCTION DETAIL OF MODEL Instruments & “PICO RECO 100” Ventilation Tools Solutions EXTERNAL GRILLE Accessories EXTRASLIM For Heating GRILLE ATTRACTIVE FRONT PANEL HIGH-EFFICIENCY CROSS-FLOW HEAT EXCHANGER 3-SPEED MOTOR LED INDICATOR FUNCTION SETTING POWER > m³/h 32 Ø HOLE 103 mm 1,4 W POWER >...
-
Page 8: Operating Modes
Multi - Zone Air Control System OPERATING MODES Instruments & Ventilation Tools Solutions N.B. Every operation mode of the PICO corresponds to a different colour of the LED on the front cover. Accessories For Heating REGENERATOR (LED: light blue) THE DEVICE WORKS FOR 70 SECONDS IN EXTRACTION MODE AND 70 SECONDS IN AERATION MODE,... -
Page 9: Filter Maintenance
Multi - Zone Air Control System AUTO3 - SUMMER COMFORT (LED: orange) Instruments & Ventilation Tools Solutions AUTO3 THE SYSTEM IS ON STANDBY. IF THE EXTERNAL TEMPERATURE IS LOWER THAN THE INTERNAL Accessories ONE, THE HEAT RECOVERY UNIT GOES ONTO For Heating HIGH-SPEED INTAKE. - Page 10 Multi - Zone Air Control System FUNCTION Instruments & Ventilation Tools Solutions DESCRIPTION REGENERATOR EXTRACTION "PICO HP2 30 WI" WITH EXTERNAL POWER SUPPLY Accessories For Heating "PICO HP2 55 WI" WITH EXTERNAL POWER SUPPLY "PICO HP2 80 WI" WITH EXTERNAL POWER SUPPLY "PICO HP2 30 WI"...
- Page 11 Multi - Zone Air Control System Instruments & Ventilation Tools Solutions INSTRUCTIONS SETTING AERATION WI-FI AUTO 1 AUTO 2 AUTO 3 AUTO 4 AUTO 5 AUTO 6 FILTER HUMIDITY VALUE MAINTENANCE Accessories For Heating you selected has been set correctly. •...
-
Page 12: Use Of Remote Control
Multi - Zone Air Control System USE OF REMOTE CONTROL Instruments & Ventilation Tools Solutions Accessories For Heating Change speed Fan ON RESET FILTER MAINTENANCE Press and hold for 3 seconds Humidity value setting Fan OFF Maximum speed (Humidity value 60%) Medium speed (Humidity value 50%) Low speed... - Page 13 Multi - Zone Air Control System USE WITH SMARTPHONE / TABLET Instruments & Ventilation Tools Solutions Regeneration Air SCREENS WITH BUTTONS PRESENT FOR THE DIFFERENT MODELS Accessories PICO WI PICO WI-C PICO WI-C-CO2 For Heating WI-FI WI-FI COMFORT WI-FI COMFORT PICO RECO 100 WI-C PICO RECO 100 WI-C-C02 PICO RECO 100 WI...
- Page 14 Multi - Zone Air Control System CONNECTION OPERATIONS BY MEANS OF WI-FI Instruments & Ventilation TO THE “PICO” EQUIPPED WITH RADIO MODULE Tools Solutions Regeneration Air To access PICO. It is sufficient to connect PICO to an electric source Accessories For Heating and it will turn on (see image 1) automatically in recovery mode.
- Page 15 Multi - Zone Air Control System At the end of this search the main control screen will be displayed. Instruments & Ventilation Tools Solutions This screen can be added to the telephone’s “home screen.” The icon shown below will be present: Accessories For Heating PICO RECO 100 WI-C-C02...
- Page 16 Multi - Zone Air Control System MOUNTING RECOVERY UNITS “PICO HP2 / PICO RECO 100” Instruments & Ventilation Tools Solutions 1) Install the duct in the wall, with a 1° inclination towards the outside. The air duct must Be flush with the internal wall and should protrude from the external wall for 5 mm (only PICO RECO 100 model).
- Page 17 Multi - Zone Air Control System 4) Align the ring to the wall with the air duct (see pic. 2) Instruments & Ventilation Tools Solutions pic.2 Wall ring Accessories For Heating Air duct 5) Fix the ring making four holes in the wall and using the four 4x30 screws and the four dowels included in the supply.
- Page 18 Multi - Zone Air Control System ASSEMBLY OF THE RECOVERY UNIT INTAKE GRILLE Instruments & Ventilation Tools Solutions Remove the external grille in order to gain access to the fixing holes.. Remove the upper part of the external ventilation grille. (see pic. 1) Accessories For Heating DIMENSIONS (mm)
- Page 19 Multi - Zone Air Control System Mark the fixing holes for the external ventilation grille and drill. Instruments & Ventilation Tools For the sake of convenience, use the back part of the grille.(see pic.2) Solutions Accessories For Heating pic.2 Fix the back part of the grille to the wall with 4x30 screws included. (see pic. 3) pic.3 Assemble the upper part of the grille.
- Page 20 Multi - Zone Air Control System ASSEMBLY OF THE INTAKE GRILLE RECOVERY UNITS MODEL “PICO RECO 100” Instruments & Ventilation Tools Solutions Mark the fixing holes for the external ventilation grille and drill, inserting the wall plugs provided. Accessories For Heating Fix the rear part of the grille to the wall with the 4x30 included (see pic.5), making sure the partition for the 2 air flows is flush with the inside of the grille.
-
Page 21: Connection To The Mains
Multi - Zone Air Control System CONNECTION TO THE MAINS Instruments & Ventilation Tools Solutions BEFORE PERFORMING ANY ELECTRICAL ASSEMBLY OPERATION, DISCONNECT THE RECOVERY UNIT FROM THE MAINS. CONNECT THE RECOVERY UNIT TO A SOCKET INSTALLED CORRECTLY WITH THE GROUNDING TERMINAL. IT IS Accessories For Heating FORBIDDEN TO PERFORM ANY MODIFICATION TO THE INTERNAL CONNECTIONS... -
Page 22: Maintenance
Multi - Zone Air Control System MAINTENANCE Instruments & Ventilation Tools Solutions DISCONNECT THE FAN FROM THE MAINS SUPPLY BEFORE CARRYING OUT MAINTENANCE. Accessories For Heating Maintenance of the fan means regularly cleaning the surfaces of the fan from dust and cleaning or replacing the filters. - Page 23 Multi - Zone Air Control System 2. Maintenance of the regenerator and of the filter (every 1,500 hours). Instruments & Ventilation Tools Solutions Remove the filter in front of the regenerator. Pull the cord of the regenerator in order to remove the Accessories For Heating regenerator from the air duct.
-
Page 24: Troubleshooting
Multi - Zone Air Control System TROUBLESHOOTING Instruments & Ventilation Tools Solutions Possible causes Management of faults Accessories For Heating Check that the recovery unit is correctly connected to the No power supply. mains supply and connect it, if necessary. The fan does not start when the recovery unit is turned on. -
Page 25: Garanzia / Warranty
Multi - Zone Air Control System GARANZIA / WARRANTY Instruments & Ventilation Tools Solutions La garanzia ha durata di 2 anni a decorrere dalla data di consegna. L’azienda fornitrice garantisce la qualità dei materiali impiegati e la corretta realizzazione dei componenti. - Page 26 Multi - Zone Air Control System NOTE Instruments & Ventilation Tools Solutions Accessories For Heating...
- Page 27 Multi - Zone Air Control System NOTE Instruments & Ventilation Tools Solutions Accessories For Heating...
