Installation
13) Remove the 10-32 screws (QTY: 8) in order to
remove the mounting template once the mounting
plates have been secured.
15) Once the mounting brackets are secured to the wall, take the clock back panel and place it next to the
intended mounting location. Thread the power wires (or power cable) coming out of the gang box via port
number one of the clock's back panel, as shown in the below image. Make sure the clock back panel is
properly oriented to screw it back on to the clock.
14

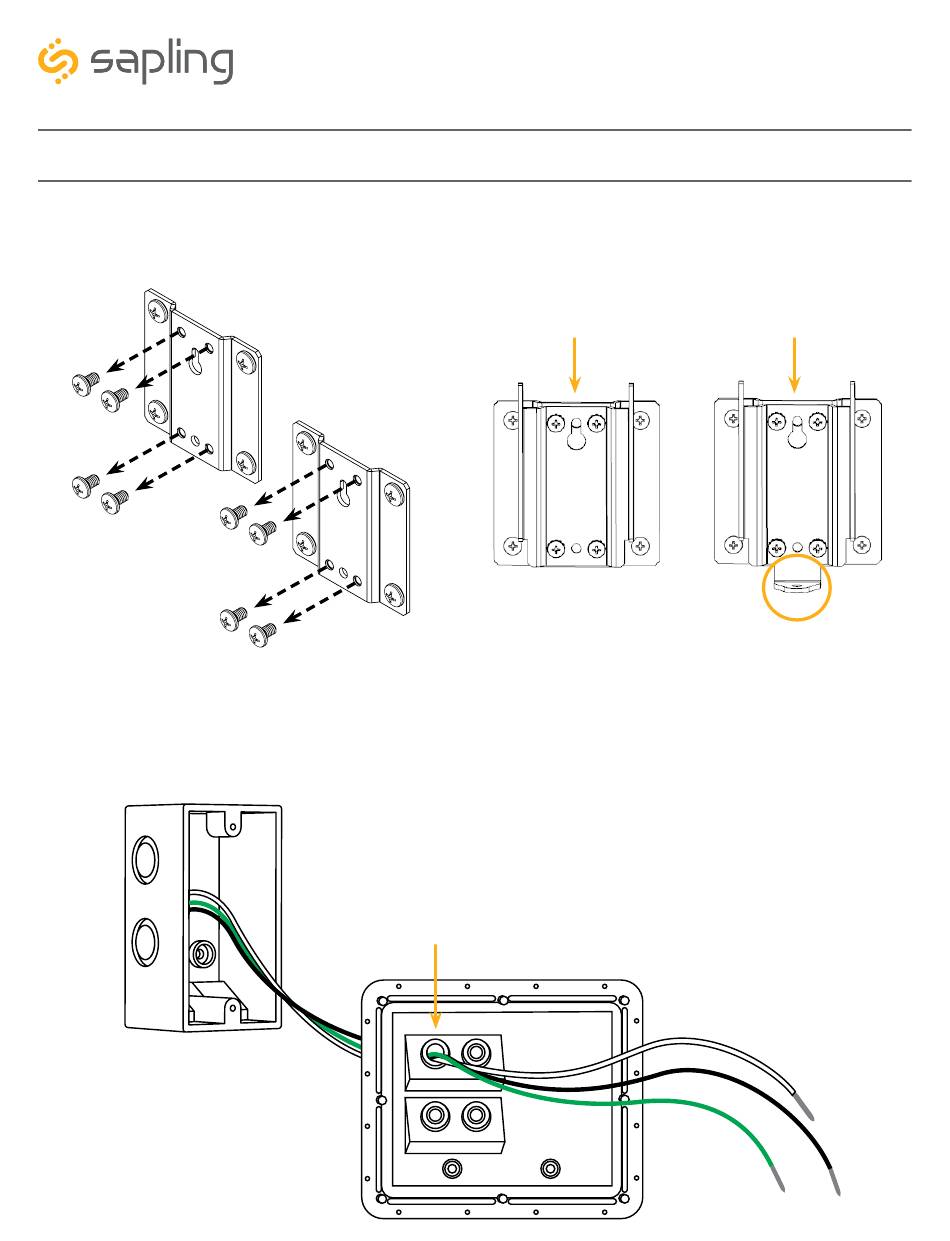

14) Attach the upper mounting bracket to the
upper mounting plate and the lower mounting
bracket to the lower mounting plate using the
10-32 screws (QTY: 8) that were just removed.
Upper mounting bracket
*Lower mounting bracket
15
includes a lip for the locking
screw
Port 1
