Sapling Prayer Clock Installation Manual page 15

Hard-Wired Network Clock Configuration
For setting your IP hard-wired clock to a static IP address:
1. Power and connect the clock to the network. Once done, double click on one of the clocks
(displays) that you would like to change when using the Network Clock Monitoring Software.
2. Go onto a web browser that is connected to the same LAN (Local Area Network) as the clock and
type the IP address of the clock into the address bar.
3. This should bring you to the web interface of the clock and you will be prompted to log in.
The default password is 6063.

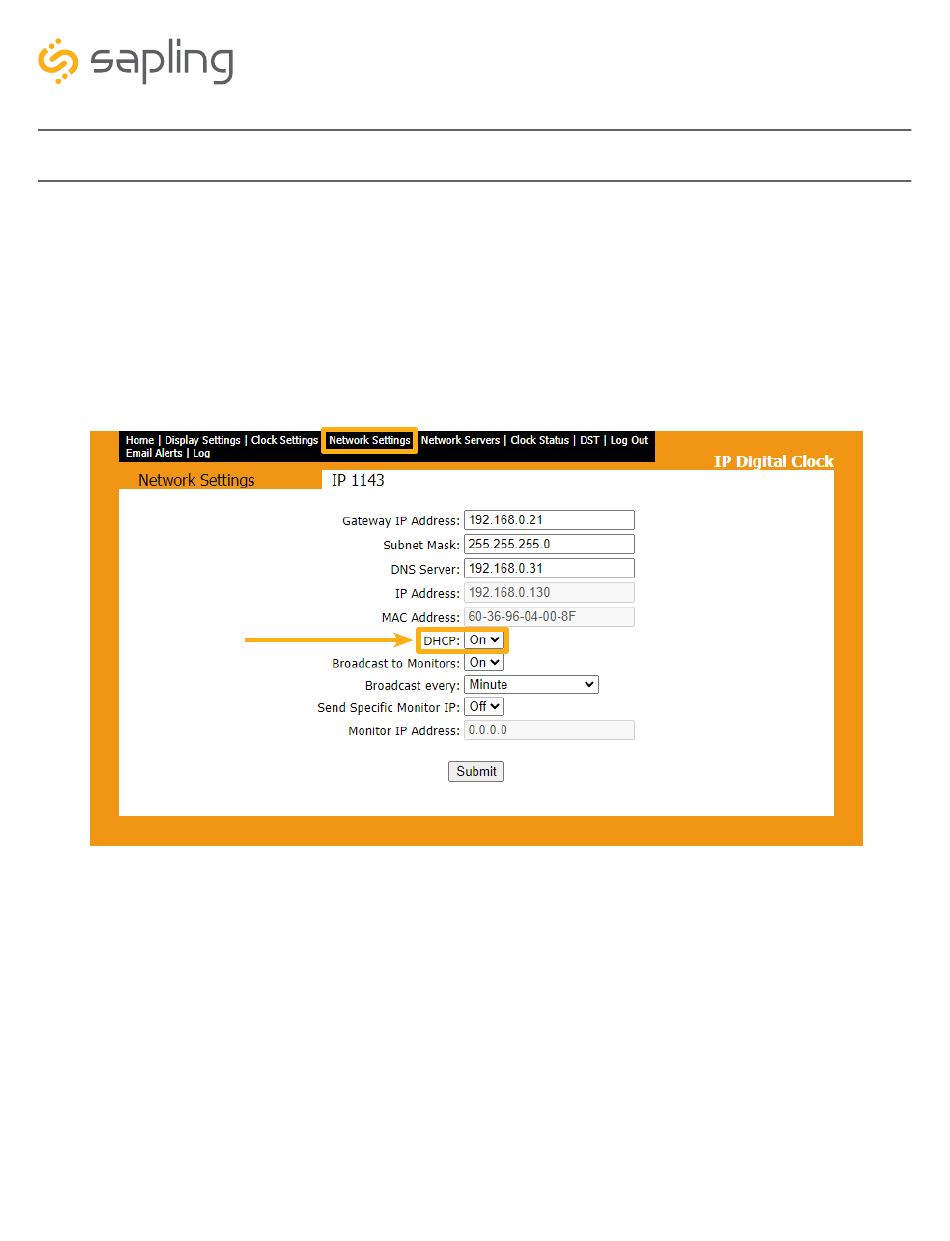

4. Once logged in, select the "Network Settings" tab on the top of the page. Refer to the below image.
5. In the "Network Settings" tab, note the DHCP option. Toggle DHCP from "ON" to "OFF". This
will make the current IP address of the clock static.
6. Enter the Gateway IP Address, Subnet Mask, DNS Router, and the Static IP Address that was
allocated to this clock (display).
7. Repeat these steps for each clock (display) as desired.
8. After DHCP is switched to off, power cycle the clock, wait 10 seconds, and then power it back on.
