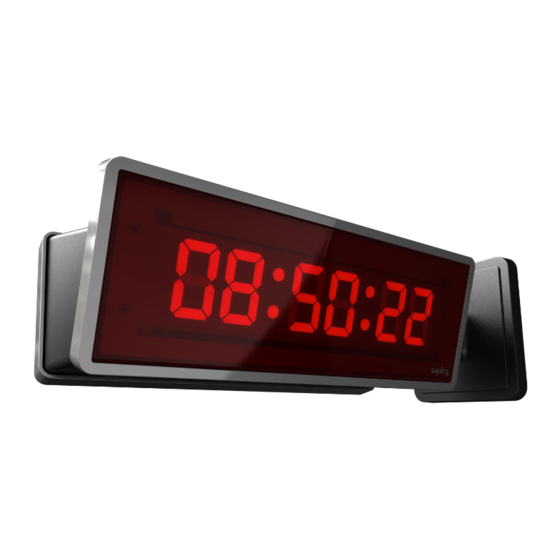

- Page 1 Installation and Programming Manual V4.3 SBP 3000 Series IP Clock The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com...
-
Page 2: Table Of Contents
Temperature Sensor Wiring (Optional)—11 Buzzer Installation (3300 Series)—12 Setting the DHCP and/or Static IP—13 IP Clock Monitor Software Sapling IP Clock Monitor Software - Task Bar Options—14-15 Sapling IP Clock Monitor Software—16-17 Sapling IP Clock Monitor Software - Error Messages—18 Web Interface Web Interface - Log In—19... -
Page 3: Included In The
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Included in the Kit Below is a list of all the items included in the SBP 3000 installation kit. The items in the kit will correspond to the type of mounting option chosen. -
Page 4: Metal Flush Mount
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Metal Flush Mount Installation Dimensions 2.5” x 4 digit: 9.65”[ 245.1mm] L x 3.80”[ 96.5mm] W x 3.00”[ 76.2mm] H 2.5” x 6 digit: 12.90”[ 327.7mm] L x 3.80”[ 96.5mm] W x 3.00”[ 76.2mm] H 4.0”... - Page 5 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Surface (Wall) Mount Installation (ABS)
- Page 6 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Surface (Wall) Mount Installation (ABS) Mount Housing to Wall and/or Gang Box - To mount the housing to the wall, drive two (2) anchors into the wall (not supplied in kit) and take two pan head screws (also not supplied in kit) and drive them into the inserts leaving an 1/8th inch gap between the head of the screw and the wall.
- Page 7 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Double Mount Installation (ABS)
- Page 8 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Double Mount Installation (ABS) (continued) *For metal mounting bracket: Use a wall anchor that can support 50 lbs or more with a maximum...
- Page 9 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Double Mount Installation (ABS) (continued) Snap and screw base to metal mounting bracket - Snap the base to the metal mounting bracket by first making contact with the lip in the upper side of the base and the metal mounting bracket.
-
Page 10: Power Over Ethernet (Poe)
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Power over Ethernet (PoE) Wiring Connecting when using a PoE Injector 1. Plug in the power injector to a power outlet. 2. Using a CAT5 or CAT6 patch cable, connect one end to the switch/router connected to the network and the other end into the IN on the power injector. - Page 11 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Temperature Sensor Wiring (Optional) If you ordered a Temperature Sensor with your SBP 3200/3300 clock, it must be connected to a terminal on the circuit board located on the back of the clock.
-
Page 12: Buzzer Installation (3300 Series)-12
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Wiring Information Buzzer Installation (3300 Series) (IMPORTANT: Detach clock from power source before installing new circuitry. DO NOT add new circuitry while the clock is operating) If you ordered a Buzzer with your SBP 3300 clock, it can be installed on the clock circuit board with four easy steps: 1) Attach the long green connector to the J1 Sync Input ports. -
Page 13: Setting The Dhcp And/Or Static
To access the web interface, type the new IP address into the address bar of the web browser. 4. DHCP - If DHCP is being utilized, load the Sapling IP Monitor software on a PC that is connected to the network. Launch the Monitor.exe file. -
Page 14: Sapling Ip Clock Monitor Software - Task Bar Options-14-15
+1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Sapling IP Clock Monitor Software - Task Bar Options Task Bar Options Send - When clicked, this button will display the following options: Send Message - This option is not available with IP analog clocks. - Page 15 Version - When clicked, this button will display version number information of the IP Monitor Software and the Software Version Number (SVN). This information is needed only when contacting Sapling technical support and will not affect your usage of the IP Monitor Software.
-
Page 16: Sapling Ip Clock Monitor Software-16-17
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Sapling IP Clock Monitor Software Please note: These options can also be accessed by using the keyboard shortcuts noted in the Quick... - Page 17 +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Sapling IP Clock Monitor Software (continued) *Before starting, copy the IPMONITOR Application from the CD provided to a computer that is connected to the same network as the IP clocks, then load the program.
-
Page 18: Sapling Ip Clock Monitor Software - Error Messages-18
Huntingdon Valley, PA 19006 www.sapling-inc.com Sapling Clock Monitor Software - Error Messages *Before starting, copy the IPMONITOR Application from the CD provided to a computer that is connected to the same network as the IP clocks, then load the program. -
Page 19: Web Interface - Log
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Log In Password - This field is where the user enters their password. The default password is 6063. This password can always be used, even if the password is changed from within the “Clock Settings”... - Page 20 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Home Home Screen - After entering the correct password, the home screen will appear where the current time, date and the current DST...
-
Page 21: Web Interface - Display
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Display Settings Display Format - This option sets the clock’s time display to either 12 hour mode or 24 hour mode. -
Page 22: Web Interface
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Brightness Schedule (if option 4 is selected in Display Settings) *Hour selection for brightness scheduling is made in 24 hour time (0:00 to 23:59 hour selections) Select Day - This option allows the user to select which day(s) of the week to set alternate brightness levels. -
Page 23: Web Interface - Clock Settings-23
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Clock Settings User Password - This field allows the user to enter a password for the user level programming. The password must be entered once in the User Password field and once in the Confirm Password field in order to be changed. -
Page 24: Web Interface - Network Settings-24
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Network Settings Gateway IP Address - This field allows for the gateway IP address to be set. Subnet Mask - This field allows for the subnet mask to be set. -
Page 25: Web Interface - Network Servers-25
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Network Servers Retry Failed Server After - This field will allow the user to set how often the clocks will attempt to connect to a server that has failed to communicate correctly. -
Page 26: Web Interface - Clock Status-26
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Clock Status NTP Details - This button, when clicked, provides additional details about the NTP synchronization. Resync NTP Now - This button, when clicked, forces synchronization with the NTP server. - Page 27 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Daylight Saving Time (Day of Week) DST Option - Day of Week in Month - This Daylight Saving Time setting is used when the clock is to change time on...
- Page 28 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Daylight Saving Time (Day of Month) DST Option - Day of Month - This Daylight Saving Time option is used when the clock is to change on a specific day of...
- Page 29 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Daylight Saving Time (By Country) DST Option - By Country - This Daylight Saving Time option is used when the clock is to change time based on what country...
-
Page 30: Web Interface - Email Alerts-30
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Email Alerts Email Alert Configuration Email Recipient - This field is where the user name of the email recipient will be inserted. Do not enter the domain and suffix. -
Page 31: Web Interface - Event Log-31
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Event Log 1. Clear Log - This feature allows the user to clear the log of all results. 2. Event Log - This feature allows the user to see the events and settings the clocks have previously carried out. - Page 32 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Setting Up the Elapsed Timer Interface (3200/3300 Versions Only) *The Elapsed Timer tab will only appear on the task bar when the Elapsed Timer is plugged into the back of the IP digital clock.
-
Page 33: Web Interface - Elapsed Timer (3200/3300 Versions Only)-32-33
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Elapsed Timer (3200/3300 Versions Only) *The Elapsed Timer tab will only appear on the task bar when the Elapsed Timer is plugged into the back of the IP digital clock. -
Page 34: Web Interface - Configuring The Elapsed Timer Buttons (3200/3300 Versions Only)-34
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Web Interface - Configuring the Elapsed Timer Buttons (3200/3300 Versions Only) *The Elapsed Timer tab will only appear on the task bar when the Elapsed Timer is plugged into the back of the IP digital clock. -
Page 35: Push Buttons-35
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Push Buttons View IP Address This option allows the user to view the clock’s IP address. Press both push buttons at the same time and the IP clock will scroll its IP address across the display. -
Page 36: Support
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Support Reading the Display The digital clock is designed to display time in either a 12-hour or 24-hour format. When the display is set to the 12-hour format, a circular light will appear in the top left corner of the display to indicate PM, or disappear to indicate AM. -
Page 37: Frequently Asked Questions-37
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Support Frequently Asked Questions How are IP clocks controlled? IP clocks are independent and receive their time from a NTP/(S)NTP server. If a setting is adjusted using the Monitor program, does it effect only the selected clock or the entire system? The IP clock series has the capability to allow the user to adjust the settings to an individual clock or apply those settings to the entire system. -
Page 38: Troubleshooting
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Support Troubleshooting What do I do if I cannot connect to the web interface? Verify that the IP address your attempting to access is correct. If the IP address is correct, verify that there aren’t any provisions in the firewall preventing you from accessing it. - Page 39 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Support Appendix Listed below are examples when using the Filter By Name option on the IP Monitor Software. matches any clock name that starts with “IP”...
