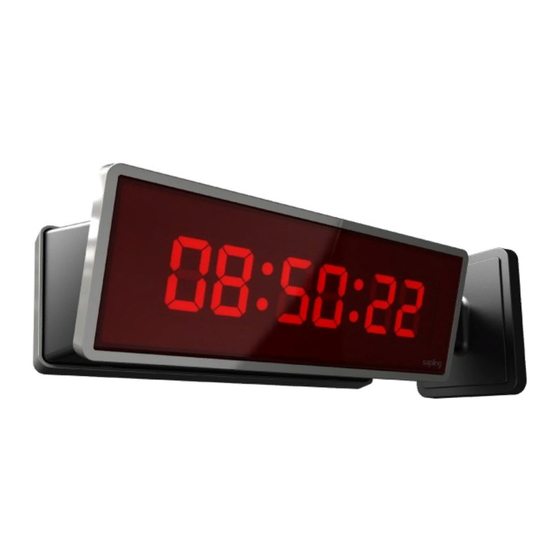

- Page 1 Installation Manual V6 SBD 1000 Series Wired Clock The Sapling Company, Inc. 215.322.6063 P. 1633 Republic Road 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com...
-
Page 2: Table Of Contents
The Sapling Company, Inc. 215.322.6063 P. 1633 Republic Road 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com SBD 1000 Series Wired Clock Table of Contents Table of Contents—2 Installation Instructions Flush Mount 3 Flush Mount Installation—3 Wall Mount Surface (Wall) Mount Installation—4 Double Mount Metal Double Mount Installation—5... -
Page 3: Installation Instructions
The Sapling Company, Inc. 215.322.6063 P. 1633 Republic Road 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Installation Instructions Flush Mount Installation 1. Mount the flush mount box into the wall. 2. Connect the ground wire into the flush mount box using the tooth lockwasher and the machine screw nut (included in the kit). -
Page 4: Surface (Wall) Mount Installation
The Sapling Company, Inc. 215.322.6063 P. 1633 Republic Road 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Installation Instructions Surface (Wall) Mount Installation 1. Mount the wall mount box into the double gang box using four machine screws (#6-32) included in the kit. -
Page 5: Metal Double Mount Installation
The Sapling Company, Inc. 215.322.6063 P. 1633 Republic Road 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Installation Instructions Metal Double Mount Installation 1. Screw hanger/mounting rod (included in the kit) into the crossbar (also included in the kit). 2. Insert wires through hanger/mounting rod. -
Page 6: Plastic Surface (Wall) Mount Installation-6
The Sapling Company, Inc. 215.322.6063 P. 1633 Republic Road 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Installation Instructions Plastic Surface (Wall) Mount Installation... - Page 7 The Sapling Company, Inc. 215.322.6063 P. 1633 Republic Road 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Installation Instructions Plastic Surface (Wall) Mount Installation Mount Housing to Wall and/or Gang Box - To mount the housing to the wall, drive two (2) plastic anchors into the wall (not supplied in kit) and take two pan head screws (also not supplied in kit) and drive them into the plastic inserts leaving an 1/8th inch gap between the head of the screw and the wall.
-
Page 8: Plastic Double Mount Installation
The Sapling Company, Inc. 215.322.6063 P. 1633 Republic Road 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Installation Instructions Plastic Double Mount Installation... - Page 9 The Sapling Company, Inc. 215.322.6063 P. 1633 Republic Road 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Installation Instructions Plastic Double Mount Installation *For metal mounting bracket: Use a wall anchor that can support 50 lbs or more with a maximum...
- Page 10 The Sapling Company, Inc. 215.322.6063 P. 1633 Republic Road 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Installation Instructions Plastic Double Mount Installation Snap and screw base to metal mounting bracket - Snap the base to the metal mounting bracket by first making contact with the lip in the upper side of the base and the metal mounting bracket.
-
Page 11: Wiring Information
The Sapling Company, Inc. 215.322.6063 P. 1633 Republic Road 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Wiring Information Wiring and Jumper Settings Jumper Number JP1 - 12/24 Hour Mode 12 Hour Mode 24 Hour Mode JP2 - Brightness Brightest Bright... -
Page 12: Wire Digital Communication Wiring Information
18 19 18 19 White Gray 110V 110V Black (EU 240V) Black (EU 240V) SAM Series 24V Wired Clock Orange Yellow SBD 1000 Series Wired Clock 110V (EU 240V) 110V White (EU 240V) Gray Black Black SAM Series 24V Wired Clock... -
Page 13: Rs485 Communication Wiring Information
SMA 2000 or 3000 Series Master Clock Black White (EU 240V) 24V or 110V SRM Series RS485 Clock (EU 240V) Yellow/Black Orange/Gray 24V or 110V SBD 1000 Series Clock (EU 240V) Black White 24V or 110V SRM Series RS485 Clock (EU 240V) -
Page 14: Troubleshooting
The Sapling Company, Inc. 215.322.6063 P. 1633 Republic Road 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Support Troubleshooting The clock is not running. What do I do? a) Measure the input voltage to the clock. The voltage should measure 85-135 volts in the 110 volt model or 10-28 volts in the 2.5”/24 volt model and 16-28 volt in the 4.0”/24 volt model. -
Page 15: Frequently Asked Questions
How can I display “BELL” and “FirE” on the clock? “BELL” displays can be programmed by either the Sapling 2000 or 3000 Series master clocks. To display “FirE”, a SMA 3000 Series master clock must be used, which receives a signal from an existing alarm system. - Page 16 CET appareil numérique de la classe B est conforme á la norme NMB-003 du Canada. CE Declaration of Conformity We, The Sapling Company certify and declare under our sole responsibility that the SBD 1000 conforms with the essential requirements of the EMC Directive 2004/108.EC and LVD 2006/95/EC, based on the following standards applied:...
