Design and function

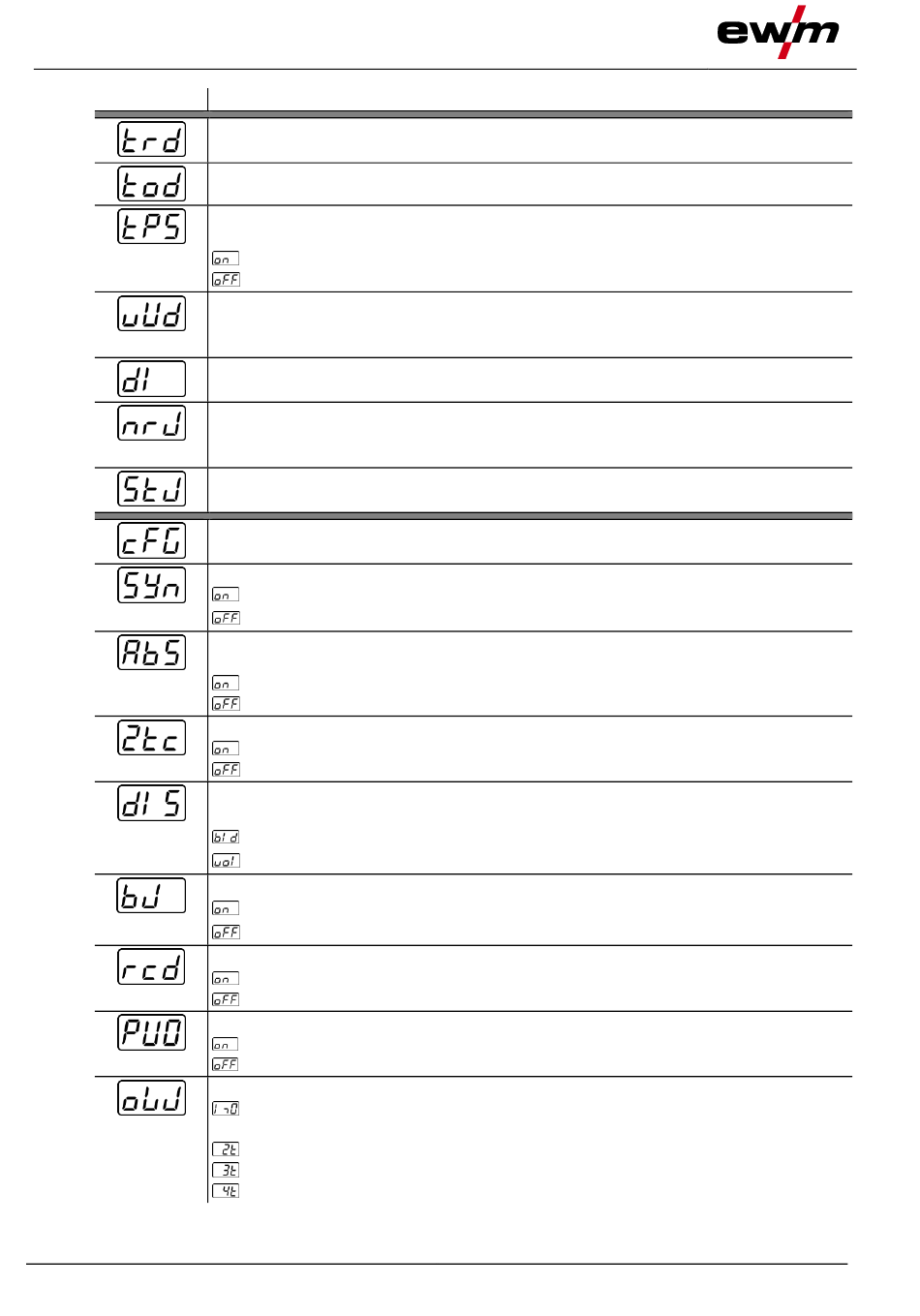

Machine configuration menu
Display
66
Setting/selection
Torch configuration menu
Set welding torch functions
Torch mode (ex works 1)
Alternative welding start – tapping start
Available from torch mode 11 (welding stop by tapping remains active).
------- Function enabled (ex works)
------- Function disabled
Up/down speed
Increase value > rapid current change
Decrease value > slow current change
Current jump
Current jump setting in ampere
Get JOB number
Set maximum selectable jobs (setting: 1 to 128, factory setting 10).
Additional parameter after activating the BLOCK JOB function.
Start JOB
Set first JOB to get (setting: 129 to 256, factory setting 129).
Machine configuration
Settings for machine functions and parameter display
Operating principle
synergic parameter setting (factory setting)
------
conventional parameter setting
------
Absolute value setting (ignition, secondary, end and hot start cur-
rent) > see 4.2.5 chapter
------- Welding current setting, absolute
------- Welding current setting, as a percentage of the main current (ex works)
Non-latched operation (version C)
------- Function enabled
------- Function disabled (ex works)
Setting for the primary setpoint value display
Defines the priority display for setpoint values:
panel thickness
------
welding voltage (factory setting)
------
RINT X12, JOB control for automation solutions
on
------
off (factory setting)
------
Welding current actual value display > see 4.2.3 chapter
------- Actual value display
------- Nominal value display
Pulsing upslope/downslope
------- Function enabled (factory setting)
------- Function disabled
Filler wire welding, operating mode
------- Filler wire operation for automated applications,
wire is fed when current flows
------- Non-latched operating mode (ex works)
------- 3rd cycle operating mode
------- Latched operating mode
