Design and function
Transport and installation
Item Symbol
2
3
4
5
• Insert the welding current plug on the welding torch into the welding current connection socket and
lock by turning to the right.
• Screw the crown nut on the shielding gas lead gastight to the connecting thread (G¼").
• Insert the 19-pole control lead plug into the 19-pole connection socket (analogue) and lock.

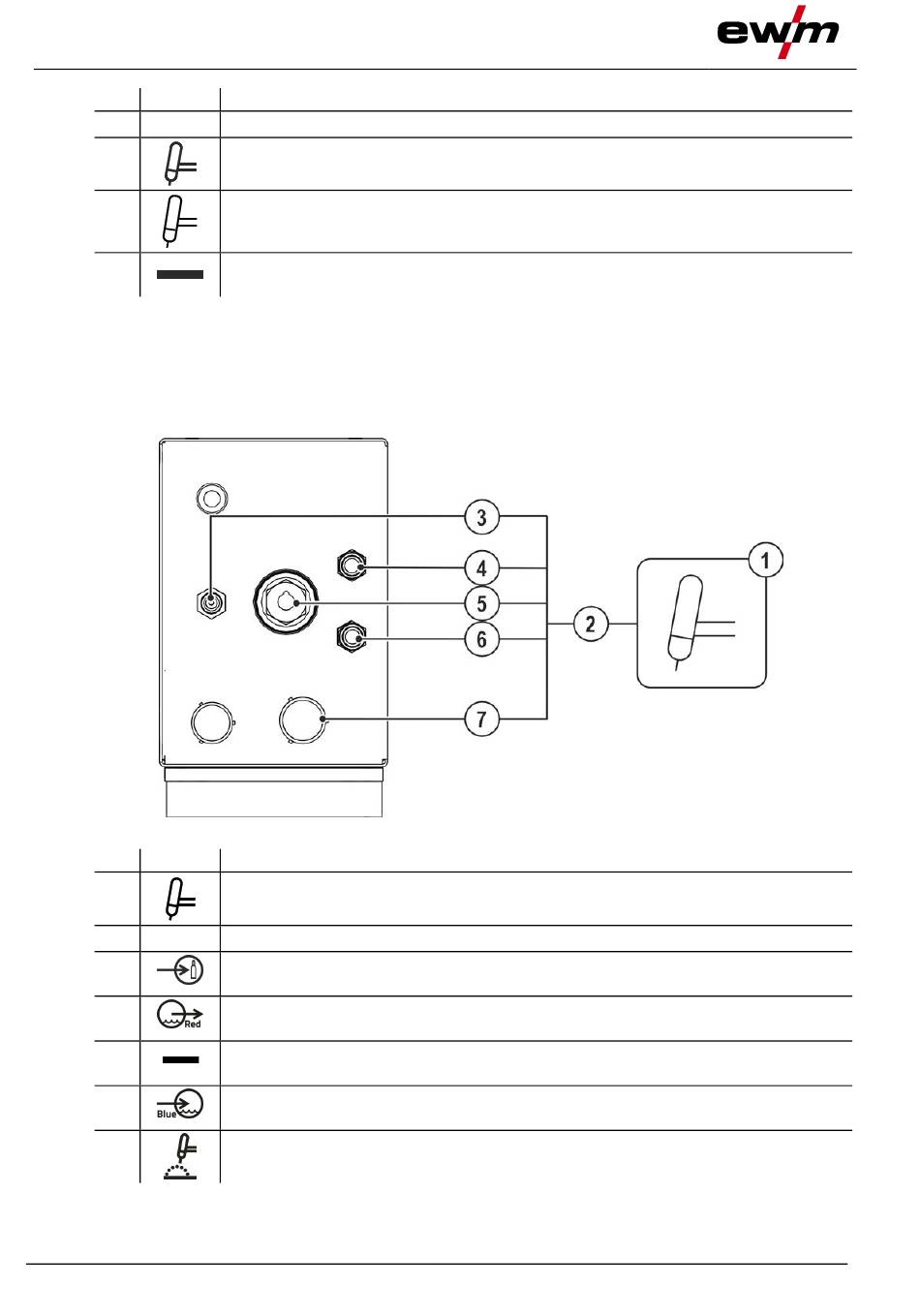

5.1.12 Connecting the welding torch to the media separation box

Item Symbol
1
2
3
4
5
6
7
36
Description 0
Welding torch hose package
19-pole (analogue) connection socket
Collision protection / sensor voltage control signals
G¼" connection thread, shielding gas connection, outlet
Connection socket for welding current of welding torch
Minus potential
Description 0
Automated welding torch
Welding torch hose package
Connection thread - G¼"
Shielding gas connection (inlet)
Quick connect coupling (red)
coolant return
"-" Welding current connection socket
TIG welding torch welding current lead connection
Quick connect coupling (blue)
coolant supply
19-pole connection socket (analogue)
Mechanised welding torch connection > see 5.5.3 chapter
Figure 5-12
