Chapter 2: Jumpers and Connectors

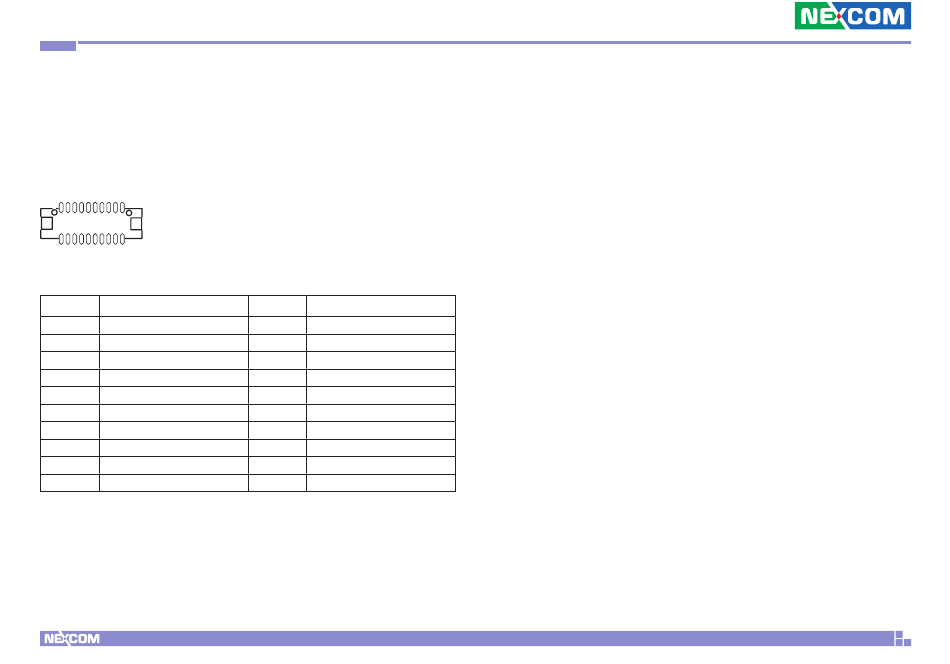

DisplayPort Connector

Connector type: DisplayPort connector

Connector location: DP1

1 19
2 20
Pin Definition
1 DP0
3 DN0
5 GND
7 DP2
9 DN2
11 GND
13 CONFIG1
15 AUXP
17 AUXN
19 GND
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 DP1
6 DN1
8 GND
10 DP3
12 DN3
14 CONFIG2
16 GND
18 HPD
20 +3V
