Chapter 1: Product Introduction

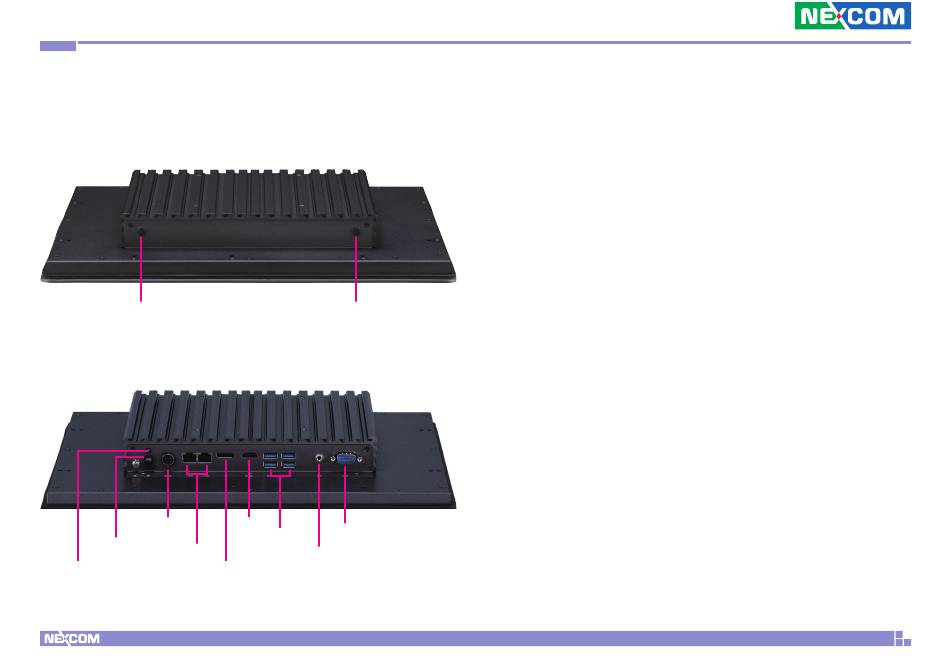

Knowing Your XPPC 24-200A
Rear Top
Antenna Hole
Rear Bottom
DC Input
Power
LAN1 & LAN2
Switch
Power
Display Port++
LED
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Antenna Hole
HDMI
COM
USB 3.1
Line-out
Antenna Holes
The external antenna mounting holes are used to mount and connect
optional Wi-Fi antennas.
Power LED
Used to indicate the power status of the system.
Power Switch
Press to power-on or power-off the system.
12V DC Input
Used to plug a DC power cord.
LAN1 & LAN2
Used to connect the system to a local area network.
Display Port++
Used to connect a video source to a display device.
HDMI
Used to connect an HDMI interface monitor.
USB 3.1
Used to connect USB 3.1/3.0/2.0 devices.
Line-out
Used to connect a headphone or a speaker.
COM
DB9 port used to connect RS232/422/485 compatible devices.
