SMC Networks PFCA7 Series Operation Manual page 69

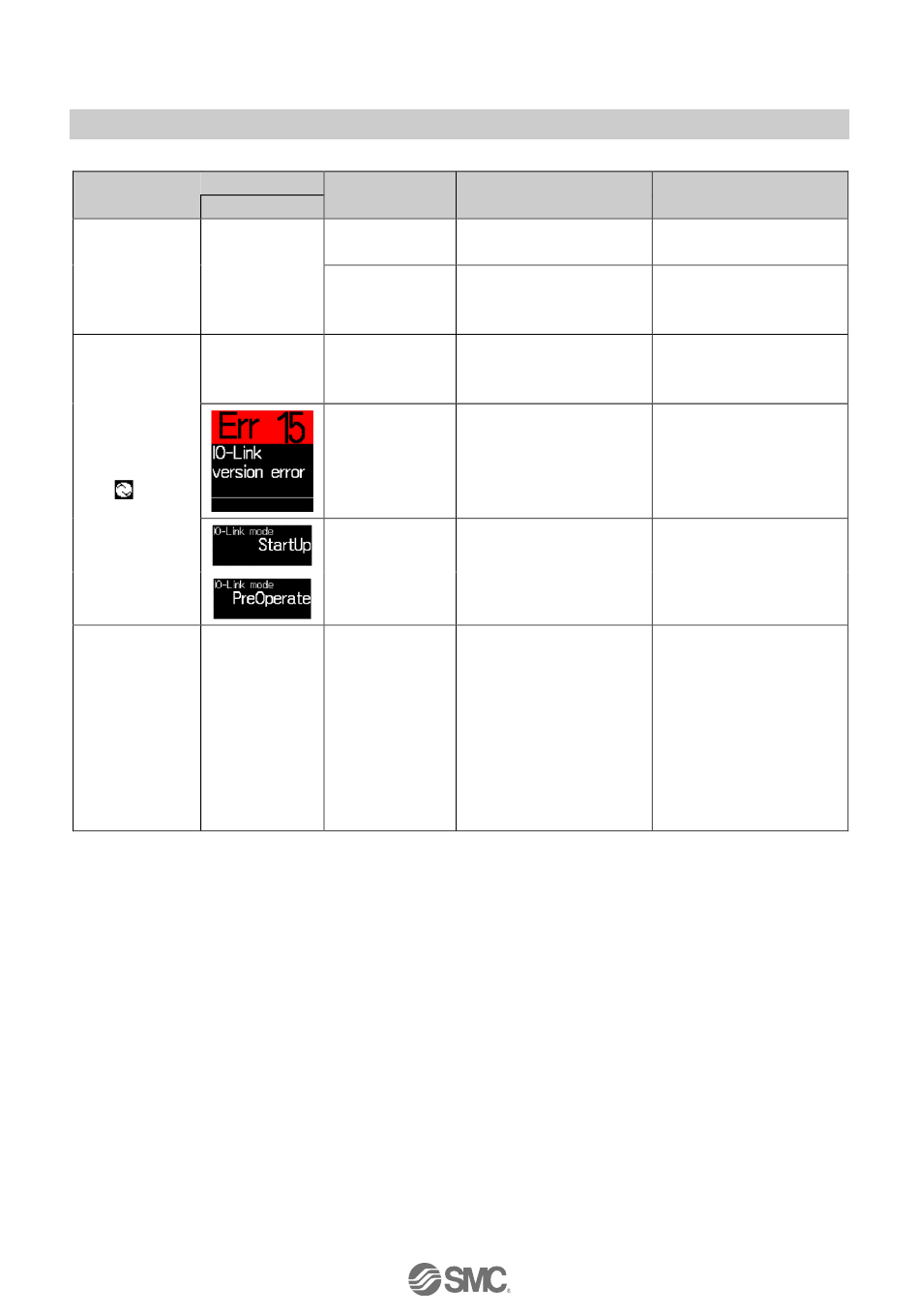

○Troubleshooting list (IO-Link communication function)
Problem
Displayed content
IO-Link indicator
light: Off
IO-Link indicator
light:
Data is swapped by
byte
1: When the product is connected to the IO-Link master with version "V1.0", an error will be generated.
Problem possible
causes
Incorrect wiring
-
Power supply error
to the IO-Link
master
Failure of the
- IO-Link wiring which
is not in use
IO-Link master and
product version are
not matched
Communication
mode is not
transferred to the
Operation mode.
Program data
- assignment is
incorrect
Investigation method
Check the connection of the
connector.
Check the power supply
voltage to the IO-Link master.
Check the connection and
cable condition of the IO-Link
cable.
Check the IO-Link version of
the master and device.
Check the setting of the data
storage access lock and data
storage backup level of the
master.
Check that the Endian type on
the master upper level
communication transmission
format is Big Endian type or
Little Endian type.
-69-
Countermeasures
Correct the cable wiring.
Supply 18 to 30 VDC to the
IO-Link master
Additionally tighten the IO-Link
cable. (Replace the cable if it is
broken.)
Match the master IO-Link
1
version to the device.
Release the data storage
access lock.
Or deactivate the setting of the
data storage backup level of the
master port.
Assign the program data based
on the Endian type of the
transmission format of the
master upper level
communication.
Or set to the master byte swap
setting.
(Refer to page 55 for the
Endian type of the upper level
communication.)
No.PF※※-OMA1002
