■[F1 Switch1] OUT1 settings
Set the output mode of OUT1.

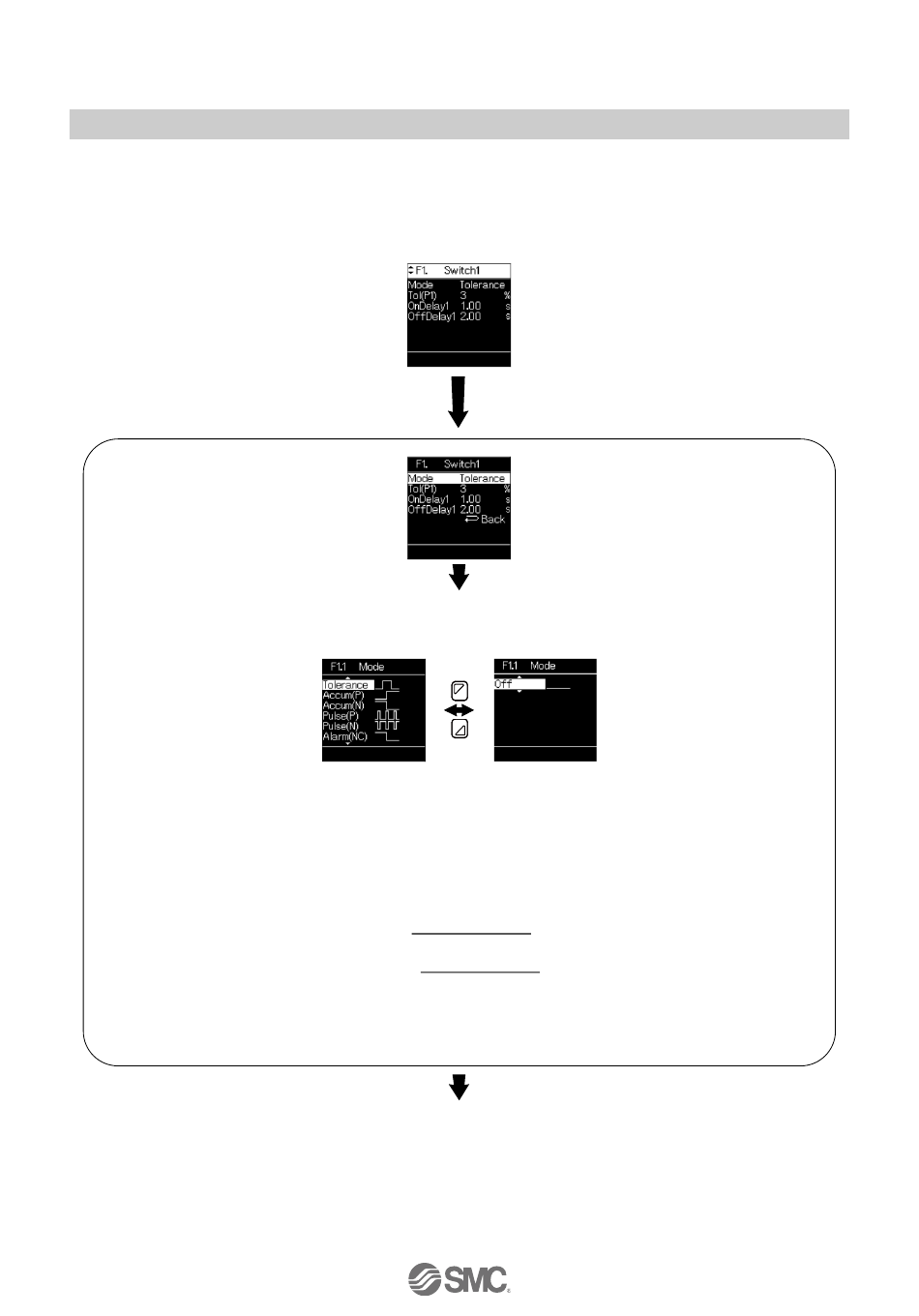

<Operation>
Operate the UP or DOWN button in function selection mode to select [F1 Switch].
Press the UP or DOWN button to select an
item and press the SET button.
Output operation settings
Select [Mode].
Press the UP or DOWN button
to select an item.
Tolerance: When the flow meter measurement is within the tolerance value for the commanded
flow rate, the SW output is turned ON. (Limit deviation tolerance mode)
Accum (P): When the accumulated flow (rate) is the set value or more, the switch output is turned
ON. (Accumulated output mode)
Accum (N): When the accumulated flow (rate) is the set value or more, the switch output is turned
OFF. (Accumulated output mode)
Pulse (P): The switch output is turned ON for 0.05 seconds for each accumulated pulse
conversion value. (Accumulated pulse output mode)
Pulse (N): The switch output is turned OFF for 0.05 seconds for each accumulated pulse
conversion value. (Accumulated pulse output mode)
Alarm (NC): The switch output is turned OFF when an error code is displayed
Off: The switch output is always turned OFF. (Switch output OFF mode)
: The zero clear error (Err3) is not applicable.
When Tolerance is selected → Page
When Accum (P)/Accum (N) is selected → Page
When other than the above is selected → The settings are complete. Select [Back] and return to function
Press the SET button.
Page 1
Press the SET button.
Returns to the [F1 Switch1] OUT1 settings.
29
31
selection mode.
-28-
Shifts to the output operation setting.
Page 2

. (Error output mode)
