SMC Networks PFCA7 Series Operation Manual page 14

Flow controller for air
Table of Contents

Advertisement

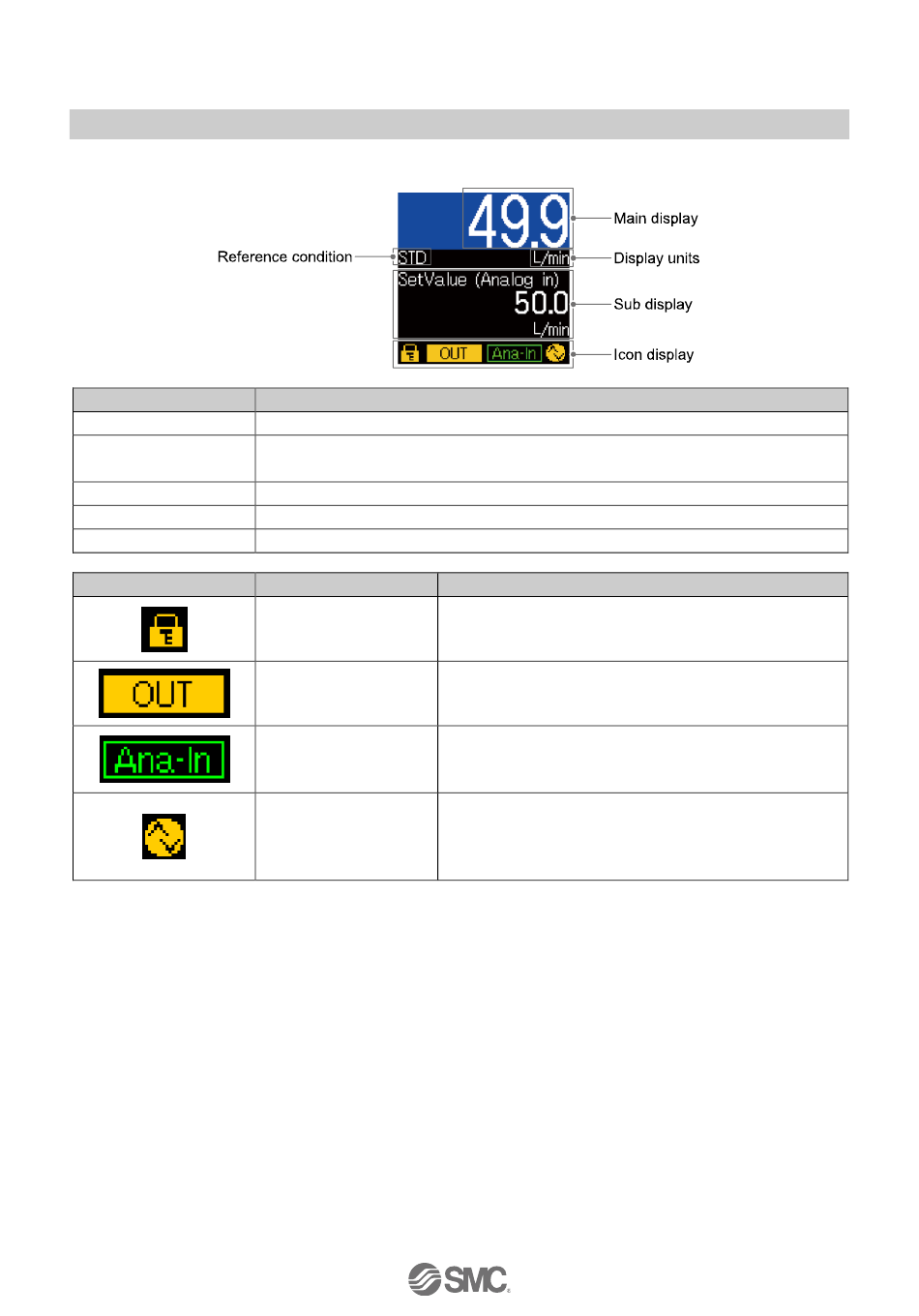

Display
Description
Main display
Sub display
Reference condition
Display units
Icon display
Icon
Displays the flow rate value and the error code.
Displays the commanded flow rate, peak/bottom value, accumulated flow rate value,
switch output/communication mode, and line names.
Indicates the reference condition currently selected.
Indicates the units currently selected.
Displays the function status. Refer to the next page for details.
Name
Key-lock
OUT status
Analogue input status
IO-Link status
Function
Description
Turns ON when the buttons are locked.
The LED is ON when the output is ON.
Red: Analogue input warning (less than -5%)
Green: Analogue input normal
Yellow: Analogue input warning (above 110%)
Yellow: Communicating with IO-Link
White: Connecting to IO-Link
(including communication disruption)
Light is OFF: Not connected with IO-Link
