SMC Networks PFCA7 Series Operation Manual page 20

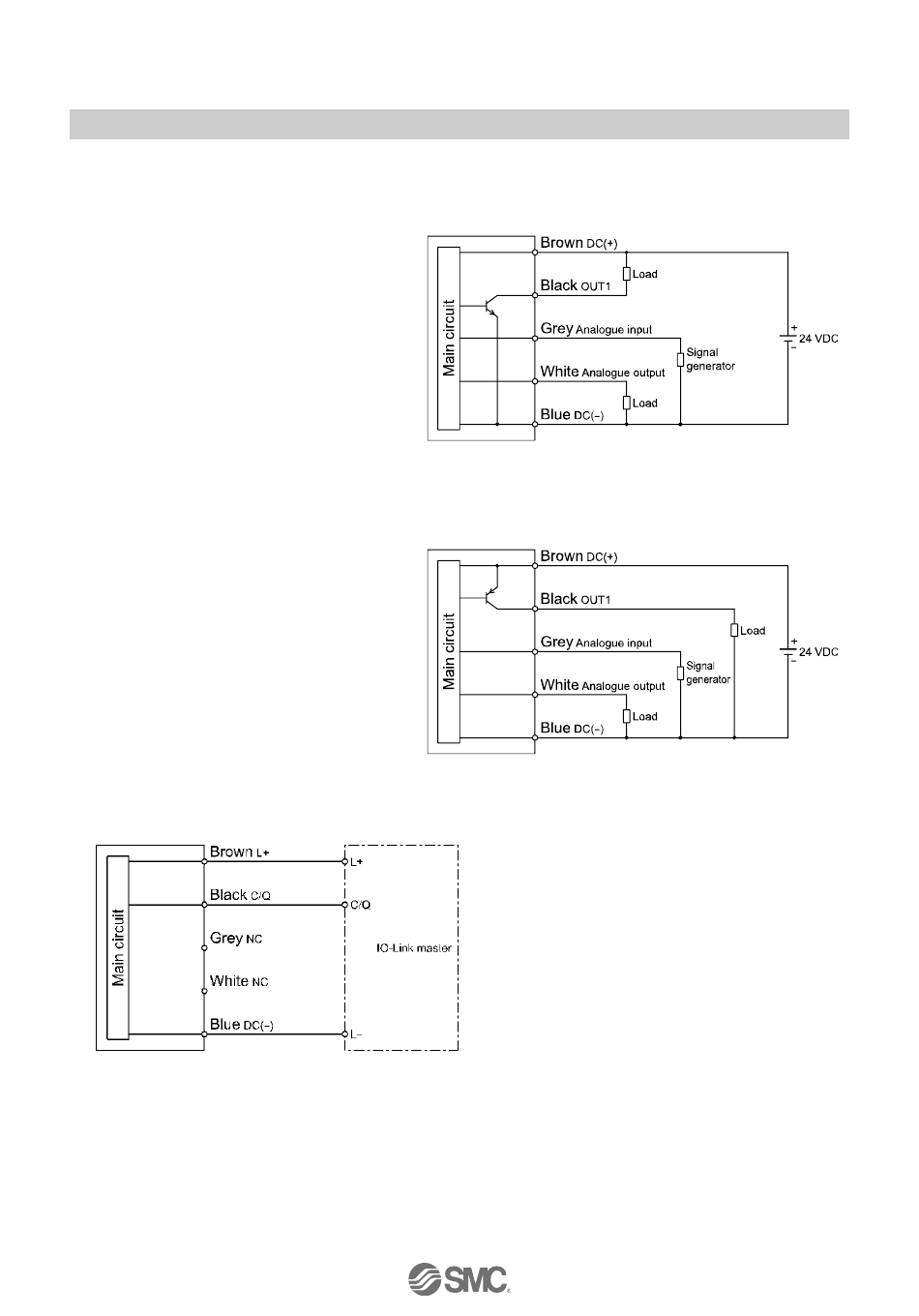

Internal circuit and wiring examples
NPN type
Maximum applied voltage: 30 V
Maximum load current: 80 mA
Internal voltage drop: 1.5 V or less
PFCA7#-#-1#-###
Analogue output: 1 to 5 V or 0 to 10 V
Output impedance: 1 kΩ approx.
Analogue input: 1 to 5 V
Input impedance: 1 MΩ approx.
PFCA7#-#-2#-###
Analogue output: 4 to 20 mA
Load impedance: 50 to 600 Ω
Analogue input: 4 to 20 mA
Input impedance: 250 Ω or less
PNP type
Maximum load current: 80 mA
Internal voltage drop: 1.5 V or less
PFCA7#-#-1#-###
Analogue output: 1 to 5 V or 0 to 10 V
Output impedance: 1 kΩ approx.
Analogue input: 1 to 5 V
Input impedance: 1 MΩ approx.
PFCA7#-#-2#-###
Analogue output: 4 to 20 mA
Load impedance: 50 to 600 Ω
Analogue input: 4 to 20 mA
Input impedance: 250 Ω or less
When used as an IO-Link device
-20-
No.PF※※-OMA1002
