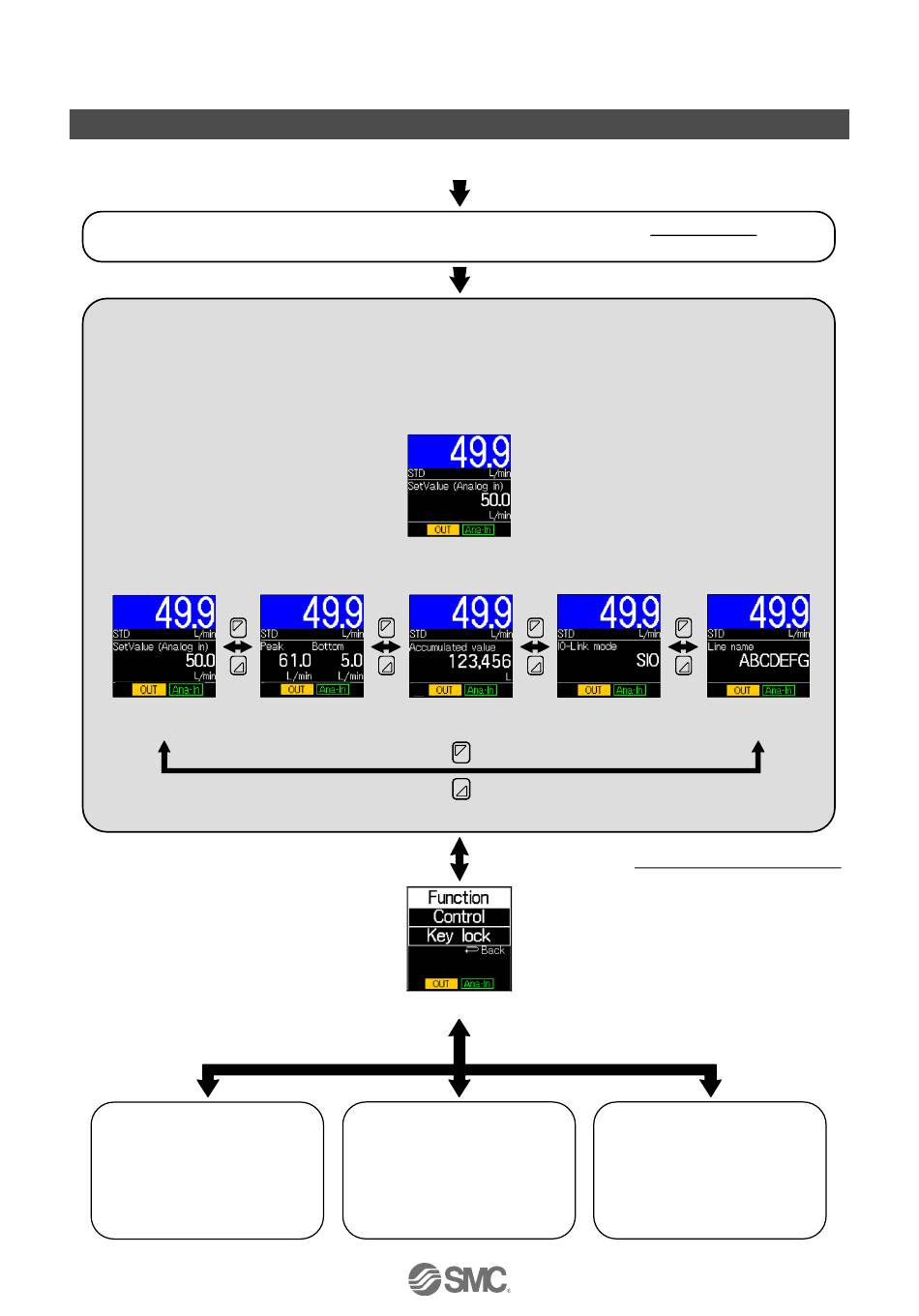

Outline of Settings [Measurement Mode]

The flow rate control action and each output are forced to turn OFF for 3 seconds after
turning on the power supply, and the SMC logo appears.
Measurement mode is the condition where flow control and the switching operation are
performed after turning on the power supply.
This is the basic mode; other modes should be selected for set-point changes and other
function settings.
Sub display
In measurement mode, the content of the Sub display can be selected by pressing the UP or DOWN button.
Commanded flow
rate display
: Only when line name is ON.
Press the UP or DOWN button to select
the item and then press the SET button.
[Function]
Shifts to function selection mode.
Set functions.
(Refer to page 22)
Power is supplied
[Measurement mode]
Peak/bottom Accumulated flow
display rate value display
Mode selection
[Control]
Shifts to control selection
setting mode.
Set the flow rate control
command method.
(Refer to page 48)
-21-
IO-Link mode
display
Press the SET button for between 2 and 4 seconds.
Shifts to key-lock setting mode.
Set restrictions for button
Line name
 
display
[Key lock]
operation.
(Refer to page 51)
No.PF※※-OMA1002
