- Page 1 Ruijie Reyee RG-RAP1260 Access Point Hardware Installation and Reference Guide Document Version: V1.0 Date: January 30, 2023 Copyright © 2023 Ruijie Networks...
- Page 2 All rights are reserved in this document and this statement. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited.
-
Page 3: Preface
Intended Audience This document is intended for: Network engineers Technical support and servicing engineers Network administrators Technical Support Official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee Technical Support Website: https://ruijienetworks.com/support Case Portal: https://caseportal.ruijienetworks.com Community: https://community.ruijienetworks.com ... - Page 4 Specification An alert that contains a description of product or version support. Note This manual provides the device installation steps, hardware troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors. It is intended for the users who have some experience in installing and maintaining network hardware.
-
Page 5: Table Of Contents
Contents Preface ..............................I 1 Product Overview ..........................1 1.1 About the RG-RAP1260 Access Point ..................1 1.2 Package Contents........................1 1.3 Hardware Features ........................2 Access Point........................2 Ports and LED ........................ 3 1.4 Technical Specifications ......................5 1.5 Power Specifications ......................... 6 1.6 Heat Dissipation ......................... - Page 6 3.1 Before You Begin ........................11 3.2 Precautions ..........................11 3.3 Installing the Access Point ....................... 11 3.4 Bundling Cables ........................15 Precautions ........................15 Steps ..........................15 3.5 Checklist After Installation ....................... 15 3.6 Removing the Access Point ..................... 16 4 Verifying Operating Status ......................
-
Page 7: Product Overview
Hardware Installation and Reference Guide Product Overview Product Overview About the RG-RAP1260 Access Point The RG-RAP1260 is a dual-radio Wi-Fi 6 wall plate access point designed for small or medium indoor scenarios covering hotels, apartments, villas, residential buildings, and small business offices. Compliant with the IEEE 802.11a/b/g/n/ac/ax standard, the access point can work at the 2.4 GHz and 5 GHz bands at the same time and supports dual-stream MU-MIMO. -
Page 8: Hardware Features

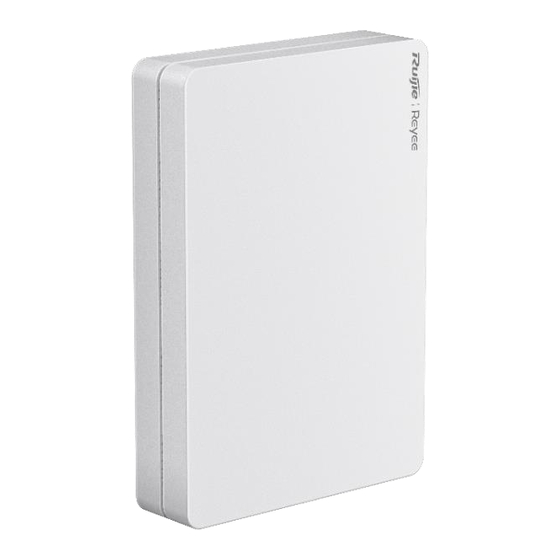

Hardware Installation and Reference Guide Product Overview Hardware Features Access Point Figure 1-1 Front View of Access Point (Including a Cover) Figure 1-2 Front View of Access Point (Excluding a Cover) -
Page 9: Ports And Led
Hardware Installation and Reference Guide Product Overview Figure 1-3 Rear View of Access Point Ports and LED Figure 1-4 Ports Table 1-1 Ports Ports Description Stick the pin to the Reset hole: Restart the access point. Reset Hole Press and hold the pin to the Reset hole for more than 5 seconds: Restore the access point to factory settings. - Page 10 Hardware Installation and Reference Guide Product Overview Ports Description LAN Port Four 10/100/1000Base-T Ethernet ports for wired connection One 10/100/1000Base-T Ethernet port, providing data and power transmission WAN/PoE Port through an Ethernet cable Figure 1-5 Table 1-2 Color Status The access point is not receiving power. Slow Blinking (at 0.5 Hz) The access point is operating normally but there is an alarm generated.
-
Page 11: Technical Specifications
Hardware Installation and Reference Guide Product Overview Technical Specifications Table 1-3 Technical Specifications Radio Design Dual-radio, two spatial streams Standard & 802.11ax, 802.11ac wave2/wave1 and 802.11a/b/g/n Protocol Operating 802.11b/g/n/ax: 2.4 GHz to 2.4835 GHz Radio 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz Antenna Built-in omnidirectional antennas (2.4 GHz: 3 dBi;... -
Page 12: Power Specifications
Hardware Installation and Reference Guide Product Overview Power Configurable in increments of 1 dBm Adjustment Dimensions 124 mm × 86 mm × 24 mm (4.88 in. × 3.39 in. × 0.94 in., the height refers to the distance from the wall to the access point because the mounting bracket is installed (W x D x H) on the junction box.) ≤... -
Page 13: Heat Dissipation
Hardware Installation and Reference Guide Product Overview equipment (PSE) must be at least 802.3af-capable. You are advised to use an 802.3at-capable PSE. If you want to use a PoE adapter, a Rujie-certificated PoE adapter is recommended. Heat Dissipation Maintain a sufficient clearance around the access point for proper ventilation. -
Page 14: Preparing For Installation
Hardware Installation and Reference Guide Preparing for Installation Preparing for Installation Safety Precautions Note To avoid personal injury and device damage, carefully read the safety precautions before you install the access point. The following safety precautions may not cover all possible hazardous situations. General Safety Precautions ... -
Page 15: Installation Environment Requirements
Hardware Installation and Reference Guide Preparing for Installation in case of accidents. Check the access point carefully before shutting down the power supply. Keep the access point far away from grounding or lightning protection devices for power device. ... -
Page 16: Anti-Interference Requirements
Hardware Installation and Reference Guide Preparing for Installation Anti-interference Requirements Keep the access point as far away from the lightning prevention equipment and grounding equipment of the power device as possible. Keep the access point far away from radio stations, radar stations, high-frequency high-current devices, and microwave ovens. -
Page 17: Installing The Access Point
Hardware Installation and Reference Guide Installing the Access Point Installing the Access Point Caution Before installing the access point, make sure you have carefully read the requirements in Chapter 2. Before You Begin Carefully plan and arrange the installation position, networking mode, power supply, and cabling before installation. - Page 18 Hardware Installation and Reference Guide Installing the Access Point Figure 3-1 Dimensions of Mounting Bracket The access point can be installed on various junction boxes, including Chinese-standard and European-standard 86-mm junction boxes, American-standard 118-mm junction box, and South African-standard 120-mm junction box.
- Page 19 Hardware Installation and Reference Guide Installing the Access Point Figure 3-3 Bracket on European-standard 86 mm × 86 mm Junction Box Figure 3-4 Bracket on South African-standard 114 mm × 114 mm Junction Box Figure 3-5 Bracket on American-standard 108 mm × 59 mm Junction Box (2) Connect the twisted pairs to the WAN/PoE port of the access point.
- Page 20 Hardware Installation and Reference Guide Installing the Access Point Caution Make sure that the cables at the connectors have natural bends or bends of large radius instead of small radius. When the access point is powered by PoE power supply, make sure that the PSE connected to the WAN/PoE port of the access point is 802.3af/802.3at-capable.
-
Page 21: Bundling Cables
Hardware Installation and Reference Guide Installing the Access Point Caution Keep the key to the security lock (T-key) handy after installation. This product is designed with anti-theft function. You need to use the T-key to remove the access point. Bundling Cables Precautions ... -
Page 22: Removing The Access Point
Hardware Installation and Reference Guide Installing the Access Point Verify that the access point is operational after power-on. Removing the Access Point (1) Remove the cover horizontally from the access point. (2) Insert the T-key into the square hole on the top of the access point. Push the device upward to remove it from the mounting bracket. -
Page 23: Verifying Operating Status
Verify that mobile phones or other clients can discover the SSID after the access point is powered on. If multiple devices exist on the network, use SSID @Ruijie-mXXXX. If only one device exists on the network, use SSID @Ruijie-sXXXX. -
Page 24: Monitoring And Maintenance
Hardware Installation and Reference Guide Monitoring and Maintenance Monitoring and Maintenance Monitoring You can observe the LED color to monitor the access point status. Hardware Maintenance If the hardware is faulty, please contact technical support. -
Page 25: Common Troubleshooting
Check whether the power supply is properly connected. Check whether the LED is normal. Check whether cables are properly connected with ports. Contact Ruijie technical support to check whether hardware faults exist. Finish Common Faults Why is the LED off after the access point is powered on? Verify that the PSE connected to the WAN/PoE port of the access point is 802.3af/802.3at-capable. - Page 26 Hardware Installation and Reference Guide Common Troubleshooting Why can’t clients discover the 5 GHz SSID? ○ Verify that the PSE supplying power to the access point is 802.3at-capable. ○ Verify that the access point is configured with the 5 GHz SSID. ○...
-
Page 27: Appendix
Hardware Installation and Reference Guide Appendix Appendix Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T Port 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps port that supports auto-negotiation and auto MDI/MDIX Crossover. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 6 or Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328.08 feet). - Page 28 Hardware Installation and Reference Guide Appendix Output Transmit Data+ Input Receive Data+ Output Transmit Data- Input Receive Data- 4, 5, 7, 8 Not Used Not Used The following figure shows feasible connections of the straight-through and crossover twisted pairs for a 100BASE- TX/10BASE-T port.
-
Page 29: Cabling
Hardware Installation and Reference Guide Appendix Cabling During installation, route cable bundles upward or downward along the sides of the rack depending on the actual situation in the equipment room. All cable connectors used for transit should be placed at the bottom of the cabinet rather than be exposed outside of the cabinet. - Page 30 Hardware Installation and Reference Guide Appendix After bundling up cables with cable ties, cut off the remaining part. The cut should be smooth and trim, without sharp corners. Figure 7-4 Binding Cables When cables need to be bent, please bundle them up but do not tie them where the cables will be bent. When cables need to be bent, please bundle them up but do not tie them where the cables will be bent.
- Page 31 Hardware Installation and Reference Guide Appendix Figure 7-6 Cable Fastening Flat Washer Spring Washer Flat Washer Hard power cords should be fastened in the terminal connection area to prevent stress on terminal connection and cable. Do not use self-tapping screws to fasten terminals. ...
