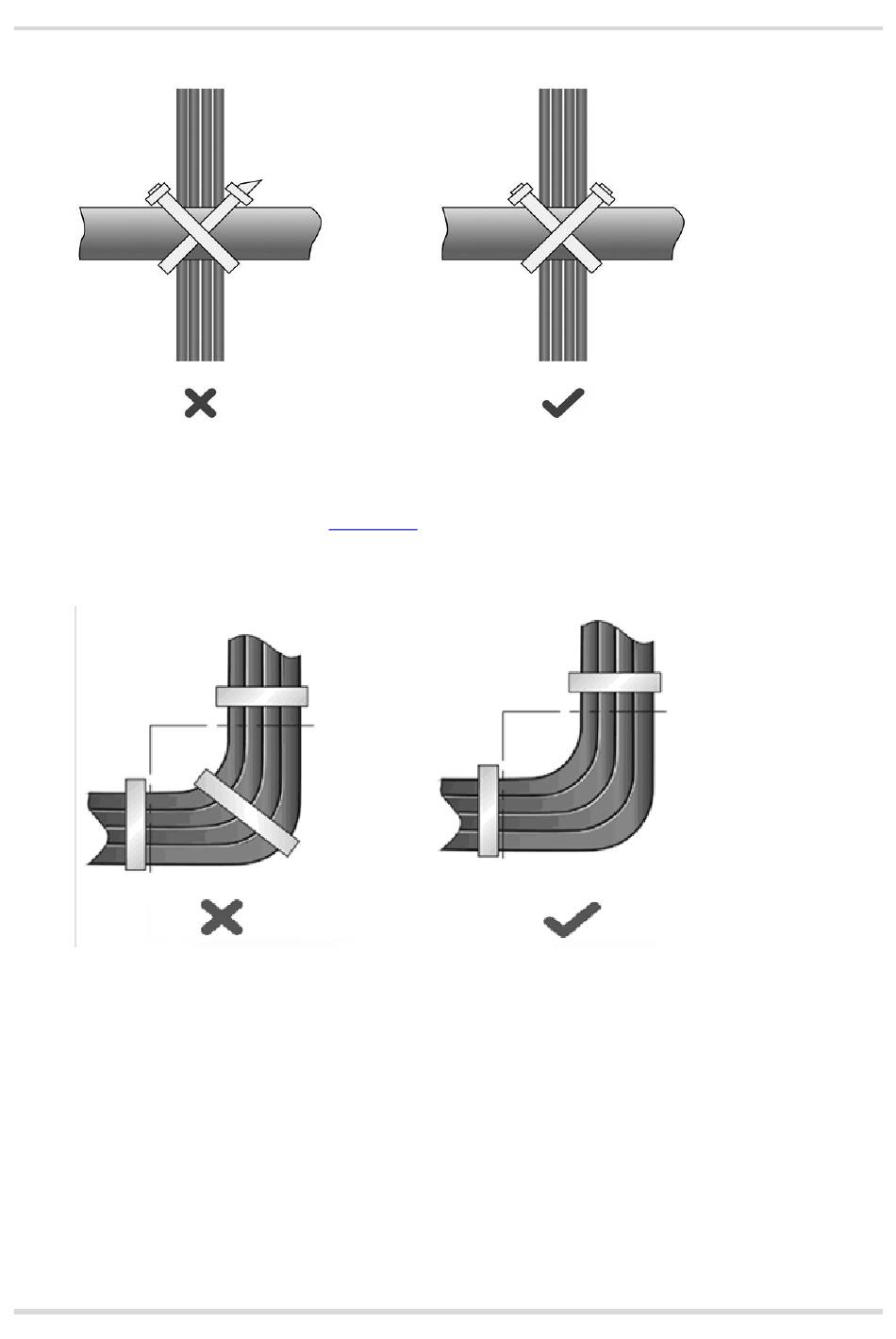

Figure 7-2 Cutting off Excess Cable Tie
When cables need to be bent, bind them first but do not tie cable ties within the
○
bend. Otherwise, stress may be generated on the cables and cause the wires inside
to break, as shown in
Figure 7-3 Binding Cables
Cables not to be assembled or remaining parts of cables should be folded and
○
placed in a proper position of the cabinet or cable trough. The proper position
indicates a position that does not affect device running or damage the device or
cable during debugging.
220 V and –48 V power cables must not be bundled on the guide rails of moving
○
parts.
The power cables connecting moving parts such as door grounding wires should
○
be reserved with some access after being assembled to avoid suffering tension or
stress. When a moving part reaches the installation position, the remaining cable
Figure 7-3.
