Hardware Installation and Reference Guide

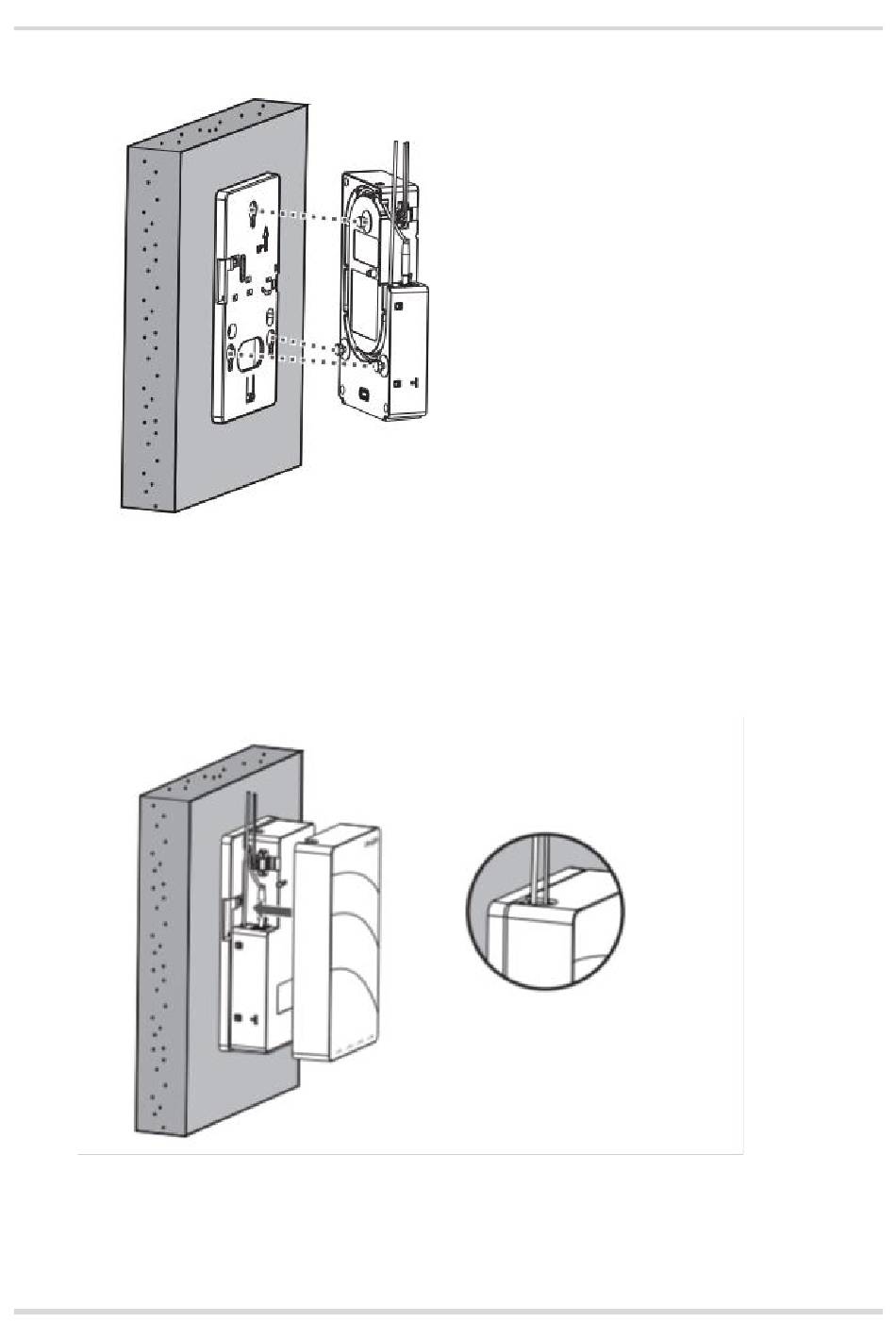

Figure 3-8 Installing the AP
(7) Install the decorative cover to the AP and lead the optical cable and power cable from
the semi-circular groove on the top of the decorative cover.
Figure 3-9 Installing the Decorative Cover
(8) End
Lead the optical cable and power
cable from the semi-circular groove
on the top of the decorative cover.
27
Installation
