Hardware Installation and Reference Guide

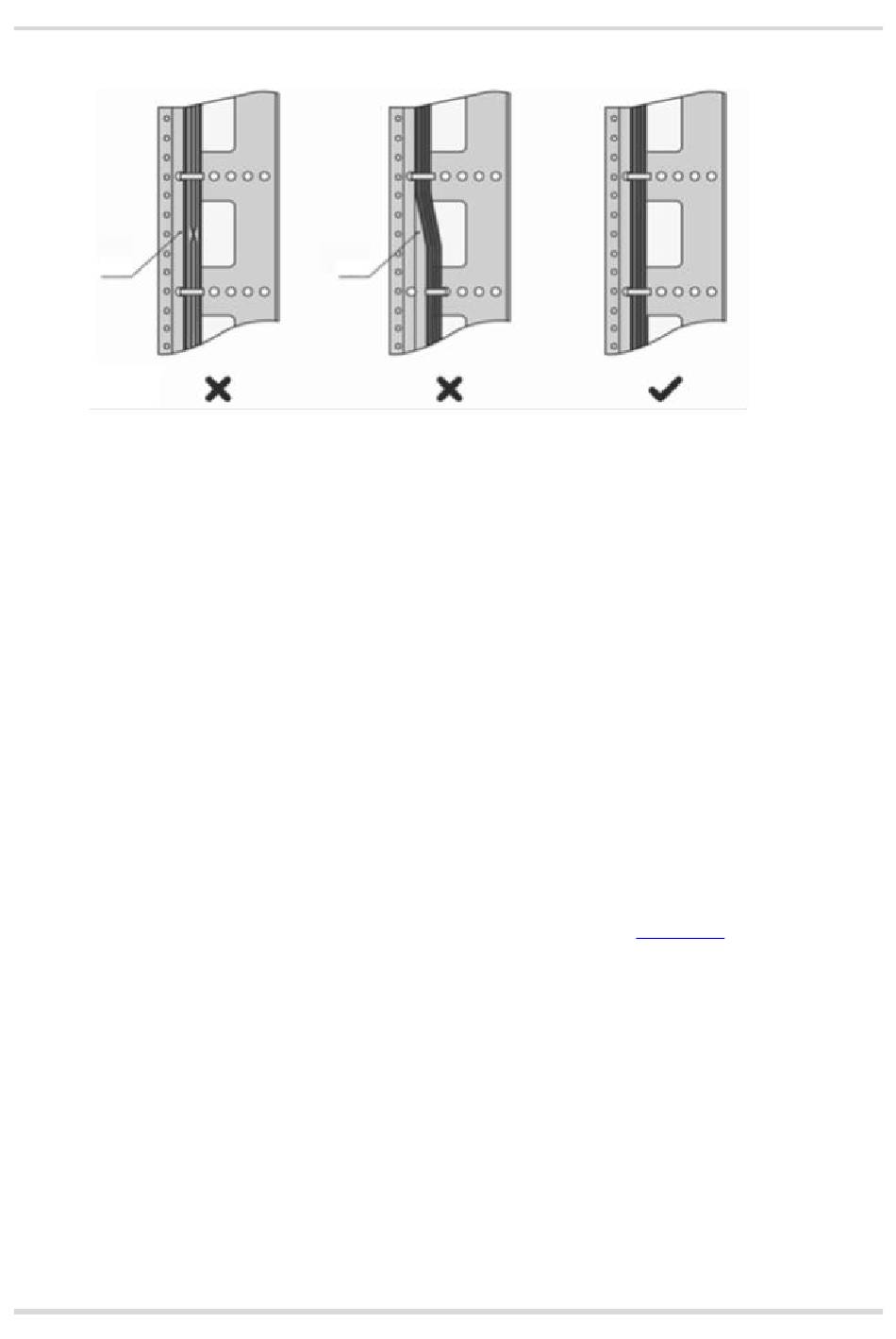

Figure 7-1
Bundling Cables
Twisting
Cables of different types (such as power cables, signal cables, and ground cables)
should be separated in cabling and bundling. Mixed bundling is not allowed. When
they are close to each other, it is recommended that crossover cabling be adopted.
In the case of parallel cabling, maintain a minimum distance of 30 mm between
power cords and signal cables.
The cable management brackets and cabling troughs inside and outside the
cabinet should be smooth without sharp corners.
The metal hole traversed by cables should have a smooth and fully rounding
surface or an insulated lining.
Use cable ties to bundle up cables properly. Please do not connect two or more
cable ties to bundle up cables.
After bundling up cables with cable ties, cut off the remaining part. The cut should
be smooth and trim, without sharp corners, as shown in
Bending
39
Appendix
Figure
7-2.
