Removing the Heatsink

Note: We do not recommend that the CPU or heatsink be removed. However, if you do need
to remove the heatsink, please follow the instructions below to remove the heatsink and
prevent damage done to the CPU or other components.
1. Unplug the power connector from the power supply.

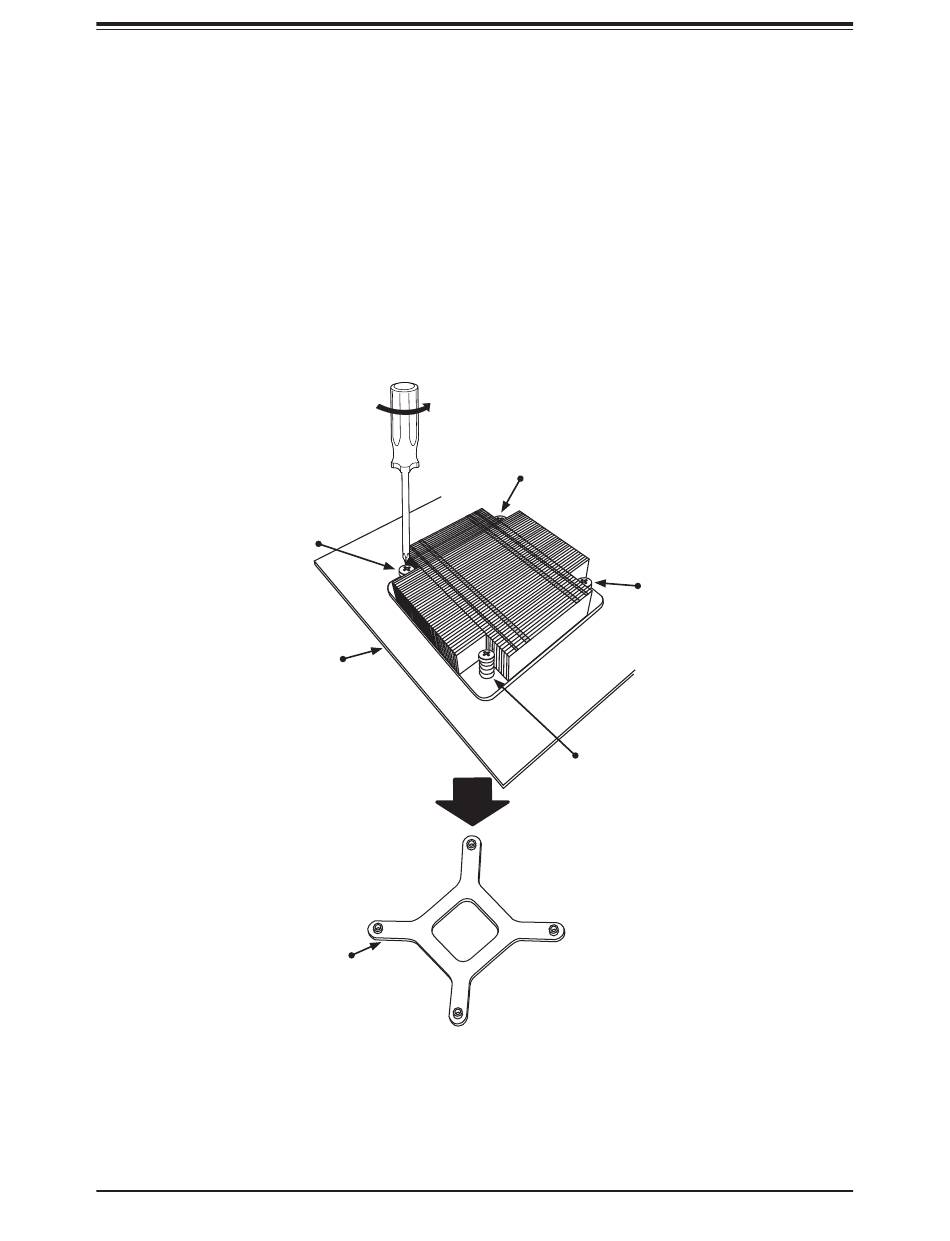

2. Unscrew the heatsink screws in the sequence shown below.
3. Gently lift the heatsink up and remove it from the CPU.
Screw#1
Motherboard
Heatsink Bracket
Chapter 3: Maintenance and Component Installation
Screw#4
Screw#3
32
Screw#2
