Installing the Inner Rails

1. Detach the two rail sections from each other by depressing the locking tab on the inner
rail to release it from its locked position, then slide the inner rail completely out.
2. Position the inner rail along the side of the chassis making sure the three screw holes
line up.
3. Screw the rail securely to the side of the chassis.
You also need to attach the inner rails when installing into a telco rack.

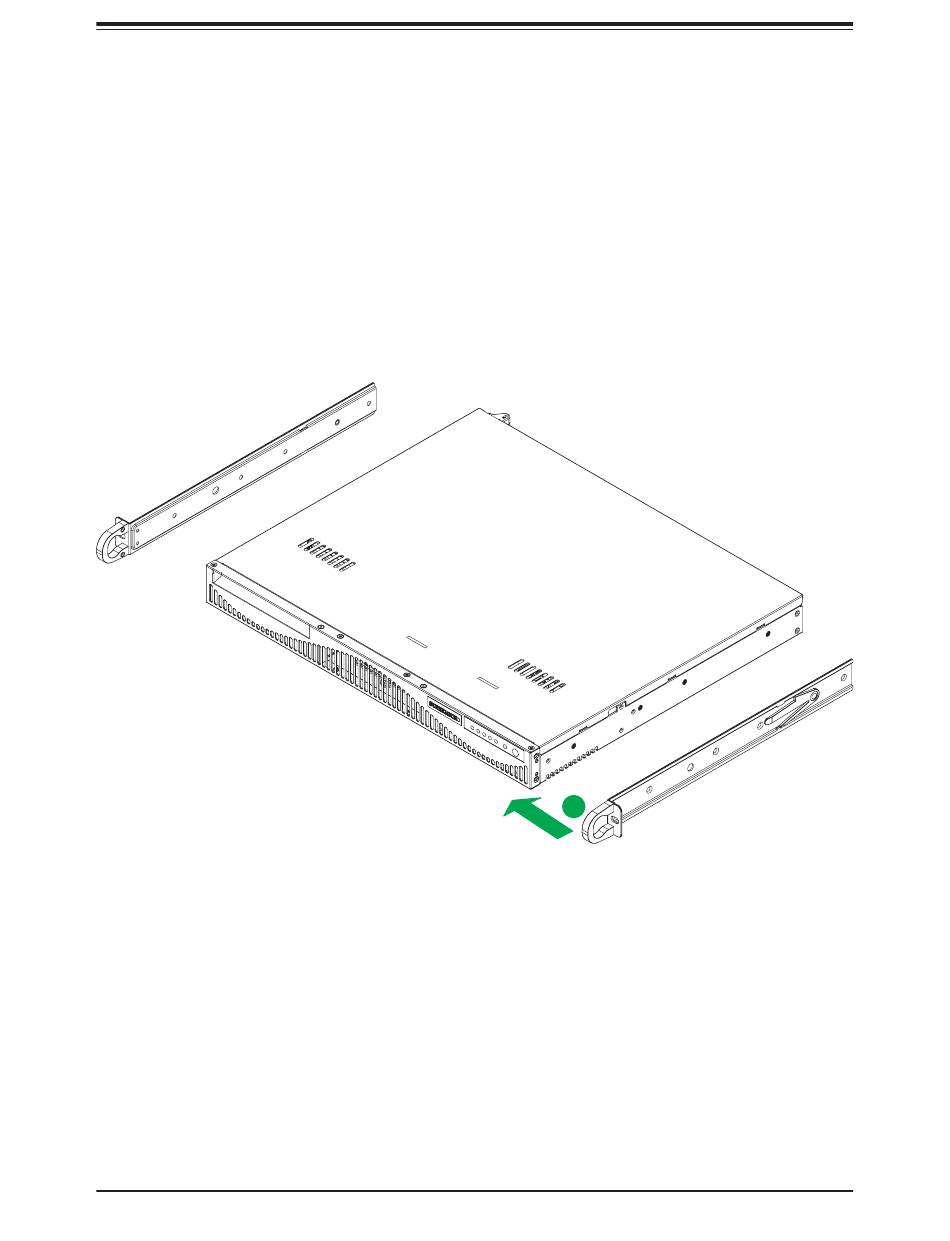

Figure 2-2. Installing the Chassis Rails
