Chapter 2: Server Installation

2.4 Installing with a Rail Kit

This is a guideline for installing the unit into a rack with the optional sliding rail kit. There are
a variety of rack units on the market, which may mean the assembly procedure will differ
slightly. Refer also to instructions that came with the rack.
The rail hardware includes two assemblies that consists of two sections: an inner rail that
secures to the chassis and an outer rail that secures to the rack. Note that the rails are left/
right side specific.

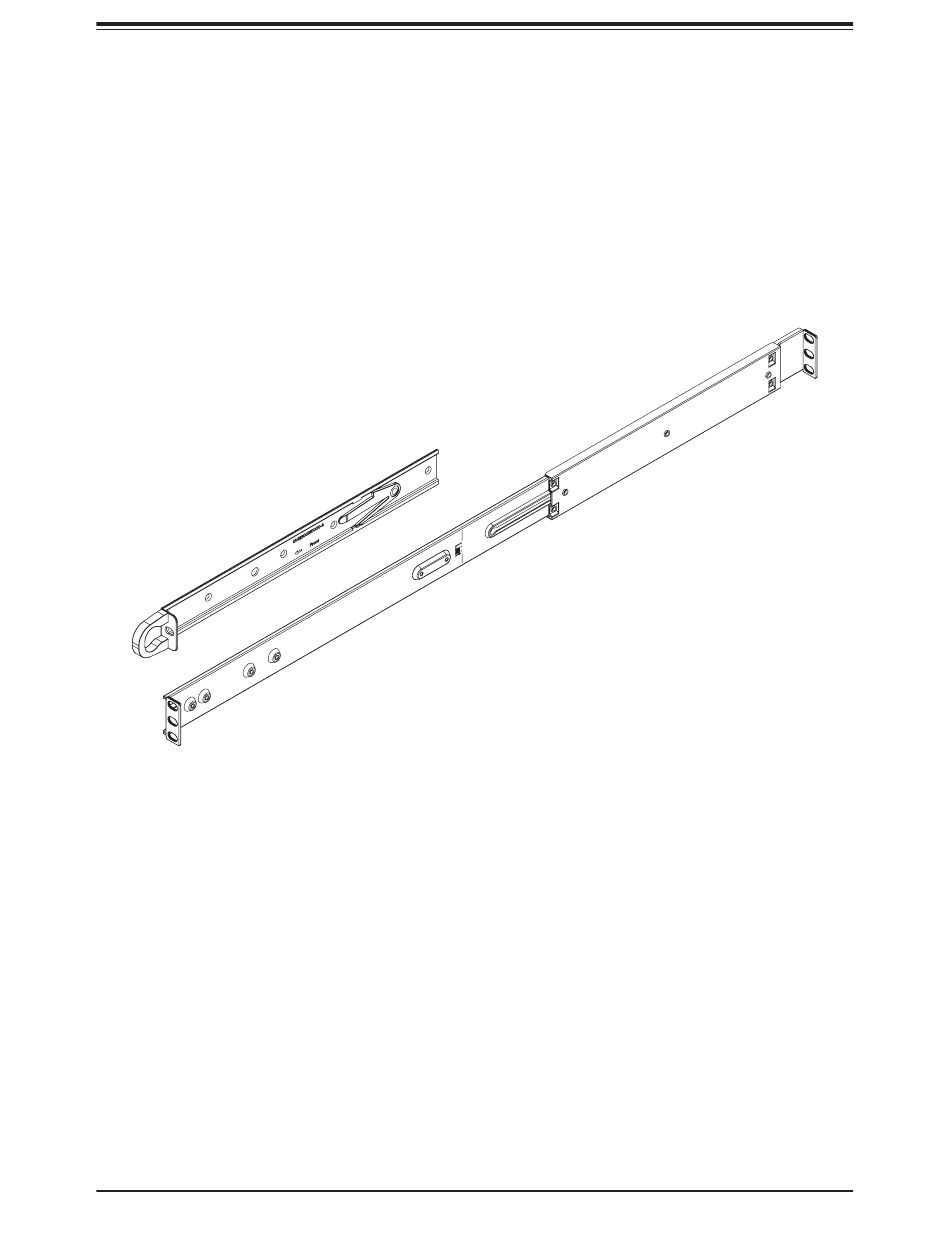

Figure 2-1. Identifying the Sections of the Rack Rails
