Chapter 3: Maintenance and Component Installation
Installing the Air Shroud
An air shroud concentrates airflow to maximize fan efficiency. It does not require screws to
install.
Position the air shroud in the chassis as illustrated below. The air shroud fits over the fans
and over the CPU. If necessary, move any cables that interfere with the air shroud placement.
Remove perforated tabs if necessary for a good fit.
Air Shroud

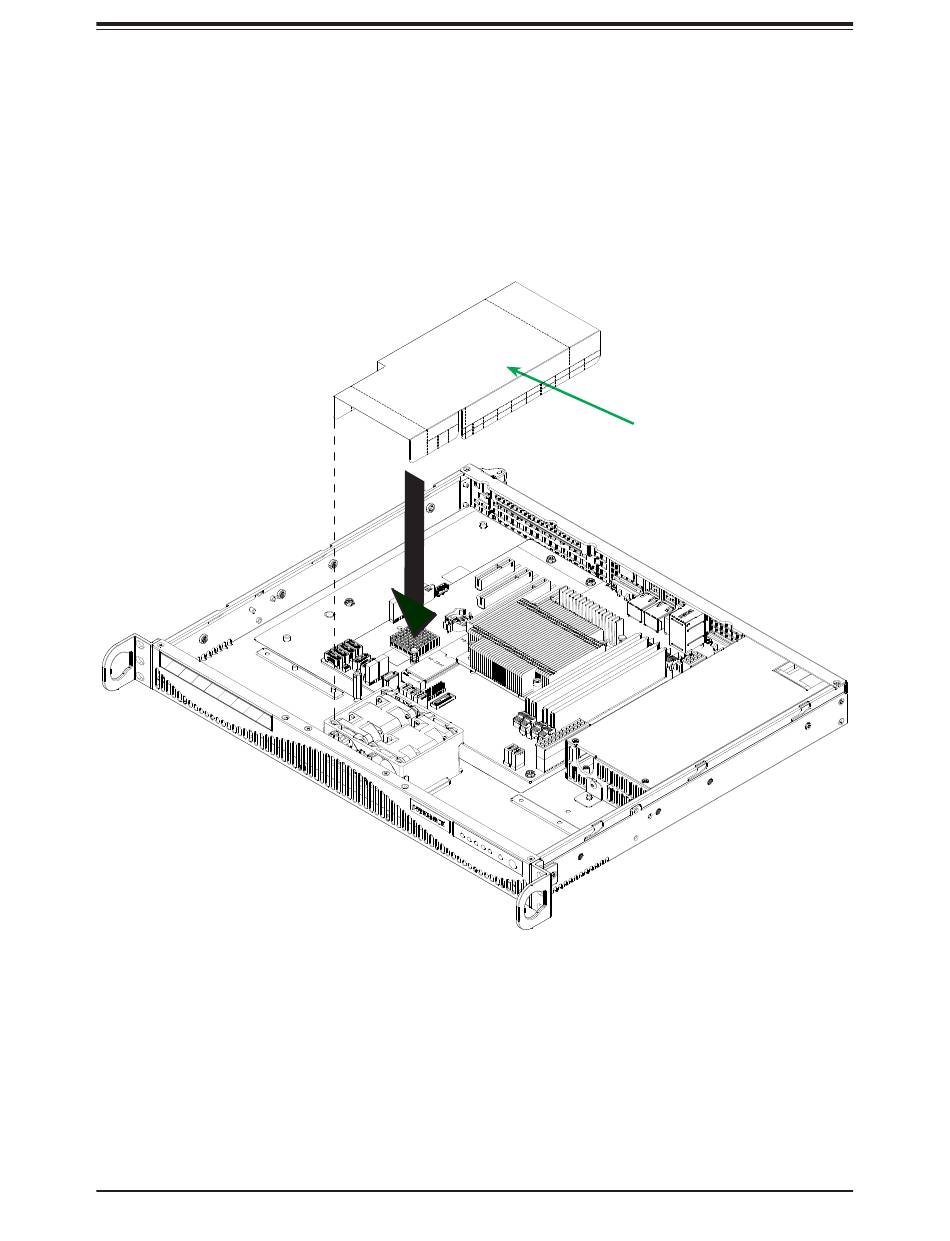

Figure 3-7. Installing the Air Shroud
