Control Panel

Information LED
Features Description
The main power switch applies or removes primary power from the power supply to the
Power Button
server but maintains standby power.
Reset Button Reboots the system
Steady on – Power on
Blinking at 4Hz – Checking BIOS/BMC integrity
Power LED Blinking at 4Hz and "i" LED is blue – BIOS firmware updating
Two blinks at 4Hz, one pause 2hz and "i" LED blue – BMC firmware updating
Blinking at 1Hz and "i" LED red – Fault detected
HDD LED Indicates activity on the storage drives when flashing.
NIC LEDs Indicates network activity on the LAN ports when flashing
Information LED Alerts operator to several states (noted in the table below).
Color, Status
Red, solid
Red, blinking at 1 Hz
Red, blinking at 0.25 Hz
Blue, solid
Blue, blinking at 1 Hz
Blue, blinking at 2 Hz, and BMC Heartbeat
LED on the motherboard is green
Blue, blinking at 4 Hz
Blue, blinking at 10 Hz
NIC2
LED
Power
NIC1 HDD
LED
LED
LED

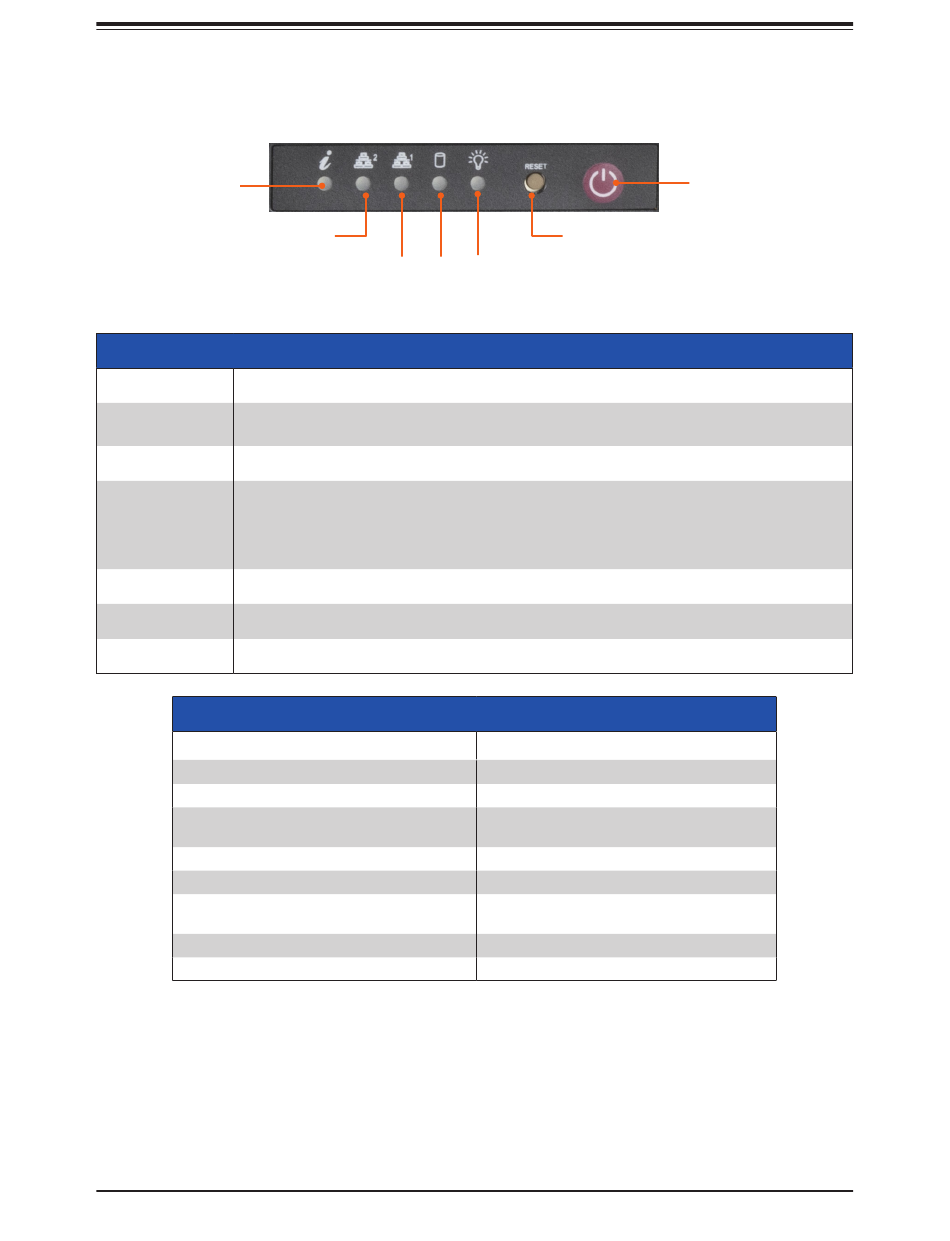

Figure 1-2. Control Panel
Control Panel Features
Information LED
10
Reset Button
Description
An overheating condition has occurred
Fan failure, check for an inoperative fan
Power failure, check for a non-operational
power supply
Unit ID has been activated by switch
Unit ID has been activated using the BMC
BMC is resetting
BMC is setting factory defaults
BIOS/BMC is recovering or updating
Chapter 1: Introduction
Power Button
