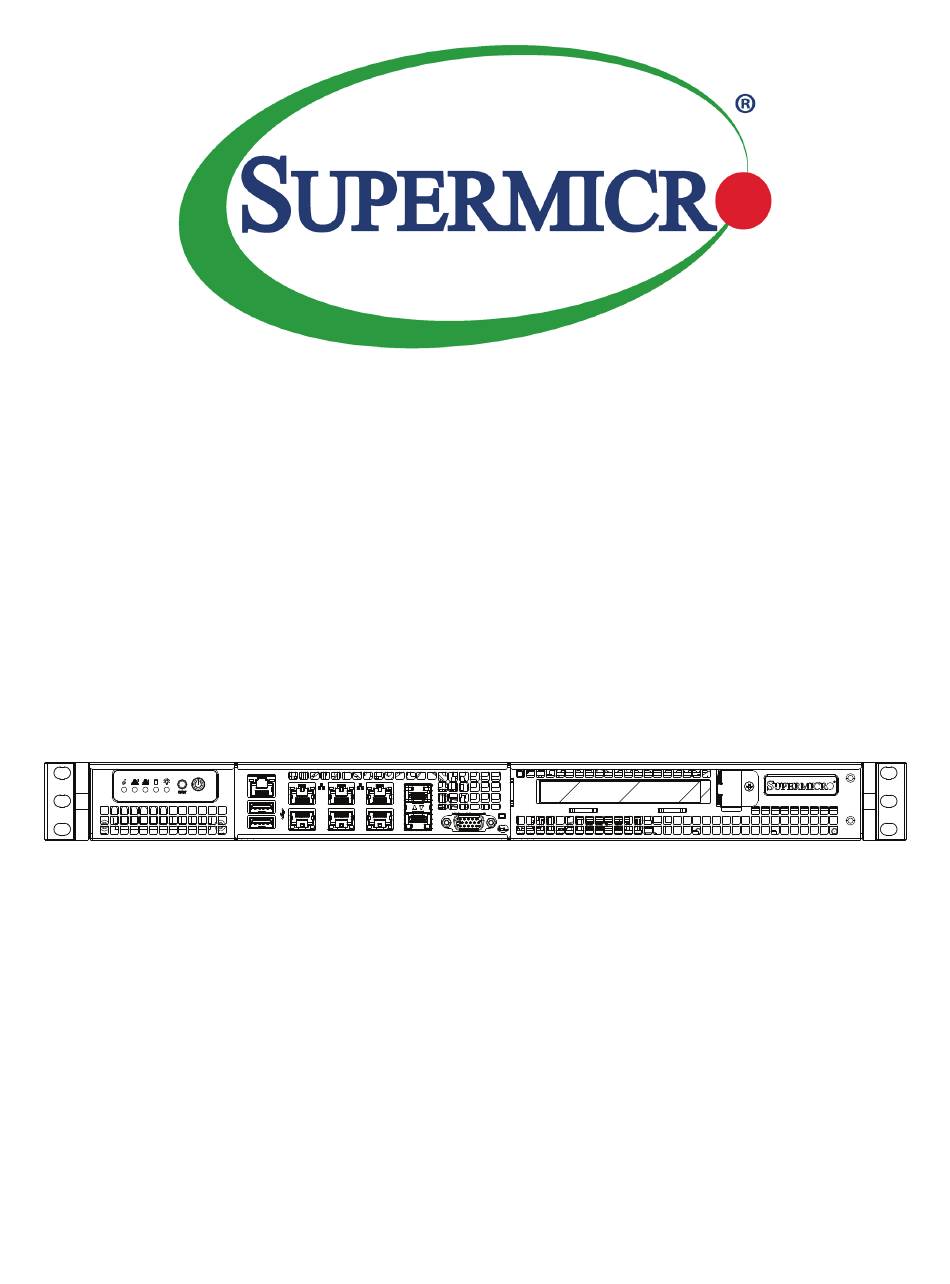

SuperServer
®
5019A-FTN4
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading

Related Manuals for Supermicro SuperServer 5019A-FTN4

Summary of Contents for Supermicro SuperServer 5019A-FTN4

  • Page 1 SuperServer ® 5019A-FTN4 USER’S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 About this Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 5019A-FTN4. Installation and maintenance should be performed by experienced technicians only. Please refer to the 5019A-FTN4 server specifications page on our website for updates on supported memory, processors, and operating systems (http://www.supermicro.com).

  • Page 4: Table Of Contents

    Preface Contents Chapter 1 Introduction 1.1 Overview ..........................8 1.2 Unpacking the System ......................8 1.3 System Features ........................9 1.4 Server Chassis Features ....................10 Control Panel ........................10 Front Features ........................11 1.5 Motherboard Layout ......................12 Quick Reference Table ......................13 Chapter 2 Server Installation 2.1 Overview ..........................15 2.2 Preparing for Setup ......................15 Choosing a Setup Location ....................15...
  • Page 5 SuperServer 5019A-FTN4 User's Manual Hard Drives ........................24 Installing 3.5" Fixed Hard Drives ...................25 Installing 2.5" Fixed Hard Drives ...................26 Expansion Card .........................27 System Cooling .........................28 System Fan Failure .......................28 Checking the Chassis Airflow ..................29 Power Supply ........................29 Chapter 4 Motherboard Connections 4.1 Power Connections ......................31...
  • Page 6 Preface Appendix A BIOS Codes Appendix B UEFI BIOS Recovery Appendix C System Specifications Appendix D Standardized Warning Statements for AC Systems Appendix E Standardized Warning Statements (Traditional Chinese)
  • Page 7 SuperServer 5019A-FTN4 User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 8: Overview

    *Note: Required for configurations with four 2.5" HDDs. 1.2 Unpacking the System Inspect the box that the SuperServer 5019A-FTN4 was shipped in and note if it was damaged in any way. If any equipment appears damaged, file a damage claim with the carrier who delivered it.

  • Page 9: System Features

    Chapter 1: Introduction 1.3 System Features The following table provides an overview of the main features of the 5019A-FTN4. Refer to Appendix C for additional specifications. System Features Motherboard A2SDi-8C-HLN4F Chassis 505-203B Intel Atom processor C3758 Socket Type FCBGA1310 Memory Supports up to 128GB of ECC RDIMM or 64GB of ECC/non-ECC UDIMM DDR4 memory in four DIMM slots Chipset Intel Atom SoC chipset...

  • Page 10: Server Chassis Features

    SuperServer 5019A-FTN4 User's Manual 1.4 Server Chassis Features Control Panel The switches and LEDs located on the control panel are described below. The control panel is located next to the left handle of the chassis. See Chapter 4 for details on the control panel connections.

  • Page 11: Front Features

    Chapter 1: Introduction Information LED Status Description An overheat condition has occurred (possibly caused by Continuously on and red cable congestion). Blinking red (1Hz) Fan failure. Check for an inoperative fan. Blinking red (0.25Hz) Power supply failure. Local UID is active. Use this function to identify the Solid blue server in a rack mount environment.

  • Page 12: Motherboard Layout

    SuperServer 5019A-FTN4 User's Manual 1.5 Motherboard Layout Below is a layout of the A2SDi-8C-HLN4F with jumper, connector, and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information, and jumper settings, refer to Chapter 4.

  • Page 13: Quick Reference Table

    Chapter 1: Introduction Quick Reference Table Jumper Description Default Setting JBR1 BIOS Recovery Pins 1-2 (Normal) JBT1 CMOS Clear Open (Normal) C1/JI SMB to PCI-E Slots Enable/Disable Pins 2-3 (Disable) JPG1 VGA Enable/Disable Pins 1-2 (Enabled) JPL1 LAN Enable/Disable Pins 1-2 (Enabled) JPME2 ME Manufacturing Mode Pins 1-2 (Normal)
  • Page 14 SuperServer 5019A-FTN4 User's Manual Connector Description SRW1, SRW2 M.2 Holding Screws Unit ID Button USB0/1 Back panel Universal Serial Bus (USB) 2.0 Ports USB2/3 Front Accessible USB 2.0 Header USB4 Front Accessible USB 3.0 Type A Port VGA Port GIGALAN...

  • Page 15: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation 2.1 Overview This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory, etc., refer to Chapter 4 for details on installing those components. Caution: Electrostatic Discharge (ESD) can damage electronic components.

  • Page 16: Server Precautions

    SuperServer 5019A-FTN4 User's Manual • In single-rack installations, stabilizers should be attached to the rack. In multi-rack instal- lations, the racks should be coupled together. • Always verify that the rack is stable before extending a server or other component from the rack.

  • Page 17: Mechanical Loading

    Chapter 2: Server Installation Mechanical Loading Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading. Circuit Overloading Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring.

  • Page 18: Installing The System Into A Rack

    SuperServer 5019A-FTN4 User's Manual 2.3 Installing the System into a Rack This section provides information on installing the 505-203B chassis into a rack unit. Due to the variety of rack units on the market, the assembly procedure might differ slightly. Also refer to the installation instructions that came with the rack unit you are using.

  • Page 19: Chapter 3 Component Installation And Maintenance

    SuperServer 5019A-FTN4 User's Manual Chapter 3 Component Installation and Maintenance This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and part numbers given. Remove power from the system and remove the top cover before installing or replacing components.
  • Page 20 Chapter 3: Component Installation and Maintenance Figure 3-1. Removing the Chassis Cover...

  • Page 21: Motherboard Components

    SuperServer 5019A-FTN4 User's Manual 3.3 Motherboard Components Installing Memory Memory Support The A2SDi-8C-HLN4F supports up to 128GB of ECC RDIMM or 64GB of ECC/non-ECC UDIMM DDR4 memory in four DIMM slots. Refer to the table below for additional memory information.

  • Page 22: Dimm Installation

    Reverse the steps above to remove the DIMM modules from the motherboard. Press both notches straight down into the memory slot. Notches Release Tabs Figure 3-3. Installing DIMMs Note: Visit the product page on the Supermicro website for possible updates to memory support (www.supermicro.com).

  • Page 23: Motherboard Battery

    SuperServer 5019A-FTN4 User's Manual Motherboard Battery The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard. Replacing the Battery Begin by removing power from the system as described in Section 3.1 and removing the cover as described in Section 3.2.

  • Page 24: Chassis Components

    Chapter 3: Component Installation and Maintenance 3.4 Chassis Components Hard Drives The chassis supports up to two 3.5" or four 2.5" HDDs, and one PCI-E expansion card. The following configurations are supported: • One 3.5" HDD and a low-profile PCI-E expansion card. •...

  • Page 25: Installing 3.5" Fixed Hard Drives

    SuperServer 5019A-FTN4 User's Manual Installing 3.5" Fixed Hard Drives You can install one 3.5" HDD and a PCI-E expansion card, or you can install two 3.5" HDDs and no expansion card. Installing 3.5" Hard Drives Begin by removing power from the system as described in Section 3.1 and removing the cover as described in Section 3.2.

  • Page 26: Installing 2.5" Fixed Hard Drives

    Chapter 3: Component Installation and Maintenance Installing 2.5" Fixed Hard Drives You can install between one and four 2.5" HDDs in various configurations. If two or fewer 2.5" HDDs are installed, you can also add a full-height, half-length PCI-E expansion card. If you want to install four 2.5"...

  • Page 27: Expansion Card

    SuperServer 5019A-FTN4 User's Manual Figure 3-8. Four 2.5" HDDs in Two Brackets, No Expansion Card Expansion Card The chassis supports one PCI-E expansion card installed with one 3.5" or two 2.5" HDDs. Refer to the supported configurations list in Section 3.4.

  • Page 28: System Cooling

    1. Disconnect the fan power cable from the motherboard and remove the broken fan. 2. Replace the failed fan with an identical 4028mm 13K RPM 4-PIN PWM fan (available from Supermicro). 3. Position the new fan into the space vacated by the failed fan previously removed. An audible click indicates that the fan is fully installed.

  • Page 29: Checking The Chassis Airflow

    - 240V input voltage. If the power supply module fails, the system shuts down and you must replace the module. Replacement units can be ordered directly from Supermicro. Replacing the Power Supply Begin by removing power from the system as described in Section 3.1 (even if the server is offline) and removing the cover as described in Section 3.2.
  • Page 30 Chapter 3: Component Installation and Maintenance Mounting Through-Holes Power Supply Module Rear Mounting Screws Insert Bottom Mounting Screws from Underside Figure 3-11. Replacing the Power Supply...

  • Page 31: Chapter 4 Motherboard Connections

    Chapter 4: Motherboard Connections R CODE JSMB1 Chapter 4 C-HLN4F Motherboard Connections This section describes the connections on the motherboard and provides pinout definitions. JPH1 Depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A motherboard layout indicating component locations can be found in Chapter 1.

  • Page 32: Headers And Connectors

    SuperServer 5019A-FTN4 User's Manual 4.2 Headers and Connectors Fan Headers There are four 4-pin fan headers on the motherboard. Pins 1-3 are backward compatible with traditional 3-pin fans. The onboard fan speeds are controlled by Thermal Management via IPMI. When using Thermal Management setting, use all 3-pin fans or all 4-pin fans. Refer to the table below for pin definitions.
  • Page 33 It enables the motherboard to deny access if the TPM associated with the hard drive is not installed in the system. Refer the table below for pin definitions. The following document provides information about the TPM: http://www.supermicro.com/manuals/other/ TPM.pdf. Trusted Platform Module Header...
  • Page 34 SuperServer 5019A-FTN4 User's Manual Power SMB (I C) Header The Power System Management Bus (I C) connector (JPI C1) monitors the power supply, fan, and system temperatures. Refer to the table below for pin definitions. Power SMB Header Pin Definitions...
  • Page 35 The A2SDi-8C-HLN4F has twelve SATA 3.0 ports that are supported by the Intel Atom SoC chipset. I-SATA0 has built-in power pins to support Supermicro's SATA DOM (Disk On Module) solutions. I-SATA ports 4-11 are available via miniSAS. JMD1 is an M.2 PCI-E 3.0 X2 slot that is MUX with I-SATA.

  • Page 36: Control Panel

    SuperServer 5019A-FTN4 User's Manual Control Panel JF1 contains header pins for various control panel connections. Refer to the figure below for the pin locations and definitions of the control panel buttons and LED indicators. All JF1 wires have been bundled into a single cable to simplify this connection. Verify that the red wire plugs into pin 1 as marked on the motherboard.
  • Page 37 Chapter 4: Motherboard Connections Reset Button The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a hardware reset switch on the computer case to reset the system. Refer to the table below for pin definitions. Reset Button Pin Definitions (JF1) Pins...

  • Page 38: Ports

    SuperServer 5019A-FTN4 User's Manual 4.3 Ports Figure 4-2. I/O Ports Description Description Dedicated IPMI LAN LAN4 Port USB1 Port (USB2.0) LAN1 Port USB0 Port (USB2.0) LAN2 Port LAN3 Port VGA Port LAN Ports Two 10G Ethernet ports (LAN1/2) are located on the I/O panel. In addition, a dedicated IPMI LAN is located above the USB0/1 ports on the back panel.
  • Page 39 Chapter 4: Motherboard Connections Universal Serial Bus (USB) Ports There are two USB ports (USB0/1) on the I/O panel. The motherboard also has one front access USB 2.0 header (USB2/3) and one USB 3.0 Type A header (USB4). The onboard headers can be used to provide front side USB access with a cable (not included).

  • Page 40: Jumpers

    SuperServer 5019A-FTN4 User's Manual 4.4 Jumpers Explanation of Jumpers To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. Refer to the motherboard layout diagram in Section 1.5 for jumper locations.
  • Page 41 Chapter 4: Motherboard Connections Watch Dog Watch Dog (JWD1) is a system monitor that can reboot the system when a software application hangs. Close pins 1-2 to reset the system if an application hangs. Close pins 2-3 to generate a non-maskable interrupt (NMI) signal for the application that hangs. Refer to the table below for jumper settings.
  • Page 42 SuperServer 5019A-FTN4 User's Manual BIOS Recovery Close pins 2 and 3 of jumper JBR1 for BIOS recovery. The default setting is on pins 1 and 2 for normal operation. Refer to the table on the right for jumper settings. The default setting is Normal.

  • Page 43: Led Indicators

    Chapter 4: Motherboard Connections 4.5 LED Indicators LAN LEDs Four LAN ports (LAN 1 ~ LAN 4) are located on the I/O panel of the motherboard. Each Ethernet LAN port has two LEDs. The green LED indicates activity, while the other Link LED may be green, amber, or off to indicate the speed of the connection.
  • Page 44 SuperServer 5019A-FTN4 User's Manual BMC Heartbeat LED A BMC Heartbeat LED is located at LEDM1 on the motherboard. When LEDM1 is blinking, the BMC is functioning normally. Refer to the table below for more information. BMC Heartbeat LED Indicator LED Color...

  • Page 45: Chapter 5 Software

    You must first configure RAID settings (if using RAID) before you install the Windows OS and the software drivers. To configure RAID settings, refer to the RAID Configuration User Guides posted on our website at www.supermicro.com/support/manuals. Installing the Windows OS for a RAID System 1.

  • Page 46: Driver Installation

    SuperServer 5019A-FTN4 User's Manual 5.2 Driver Installation The Supermicro FTP site contains drivers and utilities for your system at ftp://ftp.supermicro. com. Some of these must be installed, such as the chipset driver. After accessing the FTP site, navigate to the CDR_Images directory and locate the ISO file for your motherboard.

  • Page 47: Superdoctor ® 5

    5.3 SuperDoctor ® Supermicro SuperDoctor 5 is a program that functions in a command line or web-based interface for Windows and Linux operating systems. The program monitors system health information such as CPU temperature, system voltages, system power consumption, and fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 48: Ipmi

    SuperServer 5019A-FTN4 User's Manual 5.4 IPMI The A2SDi-8C-HLN4F supports the Intelligent Platform Management Interface (IPMI). IPMI is used to provide remote access, monitoring, and management. There are several BIOS settings that are related to IPMI. For general documentation and information on IPMI, visit our website at:...

  • Page 49: Chapter 6 Bios

    Chapter 6: BIOS Chapter 6 BIOS 6.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 50: Main Setup

    SuperServer 5019A-FTN4 User's Manual 6.2 Main Setup When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen.
  • Page 51 Chapter 6: BIOS CPLD Version This item displays the Complex Programmable Logic Device version. Memory Information Total Memory This item displays the total size of memory available in the system.

  • Page 52: Advanced Setup Configurations

    SuperServer 5019A-FTN4 User's Manual 6.3 Advanced Setup Configurations Use the arrow keys to select Boot Setup and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. When this occurs, revert to default manufacturer settings.
  • Page 53 Chapter 6: BIOS Watch Dog Function If enabled, the Watch Dog timer will allow the system to reboot when it is inactive for more than 5 minutes. The options are Disabled and Enabled. Power Button Function This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for 4 seconds or longer.
  • Page 54 SuperServer 5019A-FTN4 User's Manual Turbo Select Enable for processor cores to run faster than the frequency specified by the manufacturer. The options are Disable and Enable. *The feature above is not available when EIST (GV3) is disabled. Select Enable to activate TM1 support for system thermal monitoring. TM1 allows the CPU to regulate its power consumption based upon the modulation of the CPU Internal clock when the CPU temperature reaches a pre-defined overheating threshold.
  • Page 55 Chapter 6: BIOS Monitor/Mwait Select Enable to enable the Monitor/Mwait instructions. The Monitor instructions monitors a region of memory for writes, and MWait instructions instruct the CPU to stop until the monitored region begins to write. The options are Disable and Enable. *The feature above is not available when CPU C State is disabled.
  • Page 56 SuperServer 5019A-FTN4 User's Manual AES-NI Select Enable to use the Intel Advanced Encryption Standard (AES) New Instructions (NI) to ensure data security. The options are Enable and Disable. Lock PACKAGE_RAPL_LIMIT Use this feature to lock the MSR 0x610 bit. The options are Disable and Enable.
  • Page 57 Chapter 6: BIOS VT-d Select Enabled to enable Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to VMM through the DMAR ACPI Tables. This feature offers fully-protected I/O resource-sharing across the Intel platforms, providing the user with greater reliability, security and availability in networking and data-sharing.
  • Page 58 SuperServer 5019A-FTN4 User's Manual Power Button Override When this feature is set to Enabled, it sends a notification when there is a power but- ton override. The options are Disabled and Enabled. ME Pwr Button Override When this feature is set to Enabled, it sends a notification when ME initiates the Power Button Override.
  • Page 59 Chapter 6: BIOS Restore When this feature is set to Enabled, data is restored to NVDIMM after a system power- up. The options are Disable and Enabled. Erase & ARM Select Enabled to enable erasing and arming of NVDIMM after data recovery. The op- tions are Disabled and Enabled.
  • Page 60 SuperServer 5019A-FTN4 User's Manual Memory Preservation Enable this feature for the memory content to be preserved through a warm reset. The options are Disabled and Enabled. Patrol Scrub Enable Patrol Scrubbing is a process that allows the CPU to correct correctable memory errors detected in a memory module and send the correction to the requestor (the original source).
  • Page 61 Chapter 6: BIOS MEMTRIP Use this feature to enable or disable MEMTRIP. The options are Disabled and Enabled. Scrambler This feature scrambles data in the memory and makes it inaccessible. The options are Disabled and Enabled. Slow Power Down Exit Use this feature to enable or disable the slow power down exit from pre-charge.
  • Page 62 SuperServer 5019A-FTN4 User's Manual IQAT Configuration  IQAT Select Enabled to hide IQAT devices from the operating system. The options are Disabled and Enabled. Set 64B MRR/MPL Use this feature to enable setting for the 64B MRR/MPL in IQAT DevCTL register. The options are Disabled and Enabled.
  • Page 63 Chapter 6: BIOS Enable/disable port Use this feature to disable or enable the SATA port number. The options are Enabled and Disabled. Hot Plug Set this item to Enabled for hot plug support, allowing for a SATA disk drive to be replaced without shutting down the system.
  • Page 64 SuperServer 5019A-FTN4 User's Manual Enable/disable port Use this feature to disable or enable the SATA port number. The options are Enabled and Disabled. Hot Plug Set this item to Enabled for hot plug support, allowing for a SATA disk drive to be replaced without shutting down the system.
  • Page 65 Chapter 6: BIOS Above 4G Decoding (Available if the system supports 64-bit PCI decoding) Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Enabled and Disabled. SR-IOV Support (Available if the system supports Single-Root Virtualization) Select Enabled for Single-Root IO Virtualization support.
  • Page 66 SuperServer 5019A-FTN4 User's Manual Onboard LAN Option ROM Type Use this item to select the Onboard LAN Option ROM type. The options are Disabled and EFI. Onboard Video Option ROM Use this item to select the Onboard Video Option ROM type. The options are Disabled and EFI.
  • Page 67 Chapter 6: BIOS Serial Port 1 Change Settings This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1. Select Auto for the BIOS to automatically assign the base I/O and IRQ address to a serial port specified.
  • Page 68 SuperServer 5019A-FTN4 User's Manual COM1 Stop Bits A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.
  • Page 69 Chapter 6: BIOS key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI. SOL Bits Per second Use this feature to set the transmission speed for a serial port used in Console Redirection.
  • Page 70 SuperServer 5019A-FTN4 User's Manual SOL Putty KeyPad This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400. Serial Port for Out-of-Band Management/Windows Emergency...
  • Page 71 Chapter 6: BIOS Flow Control Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.
  • Page 72 SuperServer 5019A-FTN4 User's Manual Trusted Computing (Available when a TPM device is installed  and detected by the BIOS) *The features from here to Current Status Information are displayed if a TPM 1.2 module is detected: Security Device Support If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM support to enhance data integrity and network security.
  • Page 73 Chapter 6: BIOS Security Device Support If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM support to enhance data integrity and network security. Please reboot the system for a change on this setting to take effect. The options are Disable and Enable.
  • Page 74 SuperServer 5019A-FTN4 User's Manual Physical Presence Spec Version Use this feature to select the PPI spec version. The options are 1.2 and 1.3. Device Select Use this feature to select the TPM version. TPM 1.2 will restrict support to TPM 1.2 devices.

  • Page 75: Event Logs

    Chapter 6: BIOS UEFI Driver This item displays the UEFI driver version. Adapter PBA This item displays the Processor Bus Adapter (PBA) model number. The PBA number is a nine digit number (i.e., 010B00-000) located near the serial number. Device Name This item displays the adapter device name.
  • Page 76 SuperServer 5019A-FTN4 User's Manual Memory ELog Support Use this feature to enable or disable memory error logging suport. The options are Disabled and Enabled. SMBIOS Event Log Change this item to enable or disable all features of the SMBIOS Event Logging during system boot.

  • Page 77: Ipmi

    Chapter 6: BIOS 6.5 IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This feature indicates the IPMI firmware revision used in your system. IPMI Status This feature indicates the status of the IPMI firmware installed in your system. System Event Log Enabling/Disabling Options SEL Components...
  • Page 78 The Disable option is for applications that require faster power on time wthout using Supermicro Update Manager (SUM) or extended IPMI features. The BMC network configuration in the BIOS setup is also invalid when IPMI Function Support is disabled.

  • Page 79: Security

    Chapter 6: BIOS The general BMC function and motherboard health monitor such as fan control are still functioning even when this option is disabled. 6.6 Security This menu allows the user to configure the following security settings. Password Check Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility.
  • Page 80 SuperServer 5019A-FTN4 User's Manual Key Management This submenu allows the user to configure the following Key Management settings. Provision Factory Defaults Select Enabled to install the default Secure Boot keys set by the manufacturer. The options are Disabled and Enabled.
  • Page 81 Chapter 6: BIOS  Forbidden Signatures Set New Select Yes to load the DBX from the manufacturer's defaults. Select No to load the DBX from a file. The options are Yes and No. Append Select Yes to add the DBX from the manufacturer's defaults to the existing DBX. Select No to load the DBX from a file.

  • Page 82: Boot

    SuperServer 5019A-FTN4 User's Manual 6.7 Boot Use this feature to configure Boot Settings. Fixed Boot Order Priorities This option prioritizes the order of bootable devices that the system boots from. Press <Enter> on each entry from top to bottom to select devices.

  • Page 83: Save & Exit

    Chapter 6: BIOS 6.8 Save & Exit Use this option to save, discard, or reset setting changes. Save Options Save Changes and Reset When you have completed the system configuration changes, select this option to save all changes made and reset the system. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration and reboot the computer.
  • Page 84 SuperServer 5019A-FTN4 User's Manual UEFI: Built-in EFI Shell UEFI: PXE IP4 Intel® Ethernet Connection X553 1GbE UEFI: PXE IP4 Intel® Ethernet Connection X553 1GbE UEFI: PXE IP4 Intel® Ethernet Connection X553 1GbE UEFI: PXE IP4 Intel® Ethernet Connection X553 1GbEDefault Options Restore Optimized Defaults Select this option to restore the system to its factory settings.
  • Page 85 Appendix A: BIOS Codes Appendix A BIOS Codes A.1 BIOS Error POST (Beep) Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the bootup process.
  • Page 86 When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOC-LPC80-20). For information on AMI updates, please refer to http://www.ami.com/products/.
  • Page 87 Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 88 SuperServer 5019A-FTN4 User's Manual The file system supported by UEFI is FAT (including FAT12, FAT16, and FAT32), which is installed on a bootable or non-bootable USB-attached device. However, the BIOS might need several minutes to locate the SUPER.ROM file if the media size becomes too large due to the huge volumes of folders and files stored in the device.
  • Page 89 Appendix B: UEFI BIOS Recovery 4. After locating the new BIOS binary image, the system will enter the BIOS Recovery menu as shown below. Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below.
  • Page 90 SuperServer 5019A-FTN4 User's Manual 6. After the BIOS recovery process is completed, press any key to reboot the system. 7. Using a different system, extract the BIOS package into a USB flash drive. 8. When a DOS prompt appears, enter FLASH.BAT BIOSname.### at the prompt.
  • Page 91 Appendix C: System Specifications Appendix C System Specifications Processors Intel Atom processor C3758 Note: Refer to the motherboard specifications pages on our website for updates to supported processors. Chipset Intel Atom SoC chipset BIOS AMI® UEFI BIOS Memory Supports up to 128GB of ECC RDIMM or 64GB of ECC/non-ECC UDIMM DDR4 memory in 4 DIMM slots Note: See the memory section in Chapter 3 for details and our website for updates to supported memory.
  • Page 92 SuperServer 5019A-FTN4 User's Manual Regulatory Compliance Electromagnetic Emissions: FCC Part 15 Subpart B Class B, EN 55032 Class B, EN 61000-3-2/3-3, AS/NZS CISPR32, VCCI Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11)
  • Page 93 Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 94 Appendix D: Standardized Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
  • Page 95 SuperServer 5019A-FTN4 User's Manual . ٌ ‫ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز‬ ‫قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز‬...
  • Page 96 Appendix D: Standardized Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .‫יש...
  • Page 97 SuperServer 5019A-FTN4 User's Manual Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
  • Page 98 Appendix D: Standardized Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...
  • Page 99 SuperServer 5019A-FTN4 User's Manual ‫يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد‬ ‫انطاقت قبم‬ ‫انىصىل إىن امنناطق انداخهيت نههيكم نتثبيج أو إ ز انت مكىناث الجهاز‬ 경고! 시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에 반드시 전원...
  • Page 100 Appendix D: Standardized Warning Statements Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !‫אזהרה‬ .‫צוות מוסמך בלבד רשאי להתקין, להחליף את הציוד או לתת שירות עבור הציוד‬ ‫واملدربيه...
  • Page 101 SuperServer 5019A-FTN4 User's Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial,...
  • Page 102 Appendix D: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
  • Page 103 SuperServer 5019A-FTN4 User's Manual ‫هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل‬ ‫اسحبذال البطارية‬ ‫فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة‬ ‫جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة‬ 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제...
  • Page 104 Appendix D: Standardized Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
  • Page 105 SuperServer 5019A-FTN4 User's Manual Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
  • Page 106 Appendix D: Standardized Warning Statements ‫هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة‬ ‫عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.
  • Page 107 SuperServer 5019A-FTN4 User's Manual ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ .‫התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다.
  • Page 108 Appendix D: Standardized Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה‬ ‫التخلص...
  • Page 109 SuperServer 5019A-FTN4 User's Manual Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
