5. Connect the drive cables to provide power and data connection.
6. Replace the fans, the DVD drive and the chassis cover.

DVD Drive

An optional slim DVD drive is supported.
Installing a DVD Drive
1. Remove power as described in
2. Secure the DVD drive with two screws, one through the side of the chassis, and one
internal.
3. Connect power and data cables.
External Screw
Note: Figure is for illustrative purposes only. The chassis varies slightly from the one shown
above.
Chapter 3: Maintenance and Component Installation
Section 3.1
and remove the chassis cover.
Internal Screw

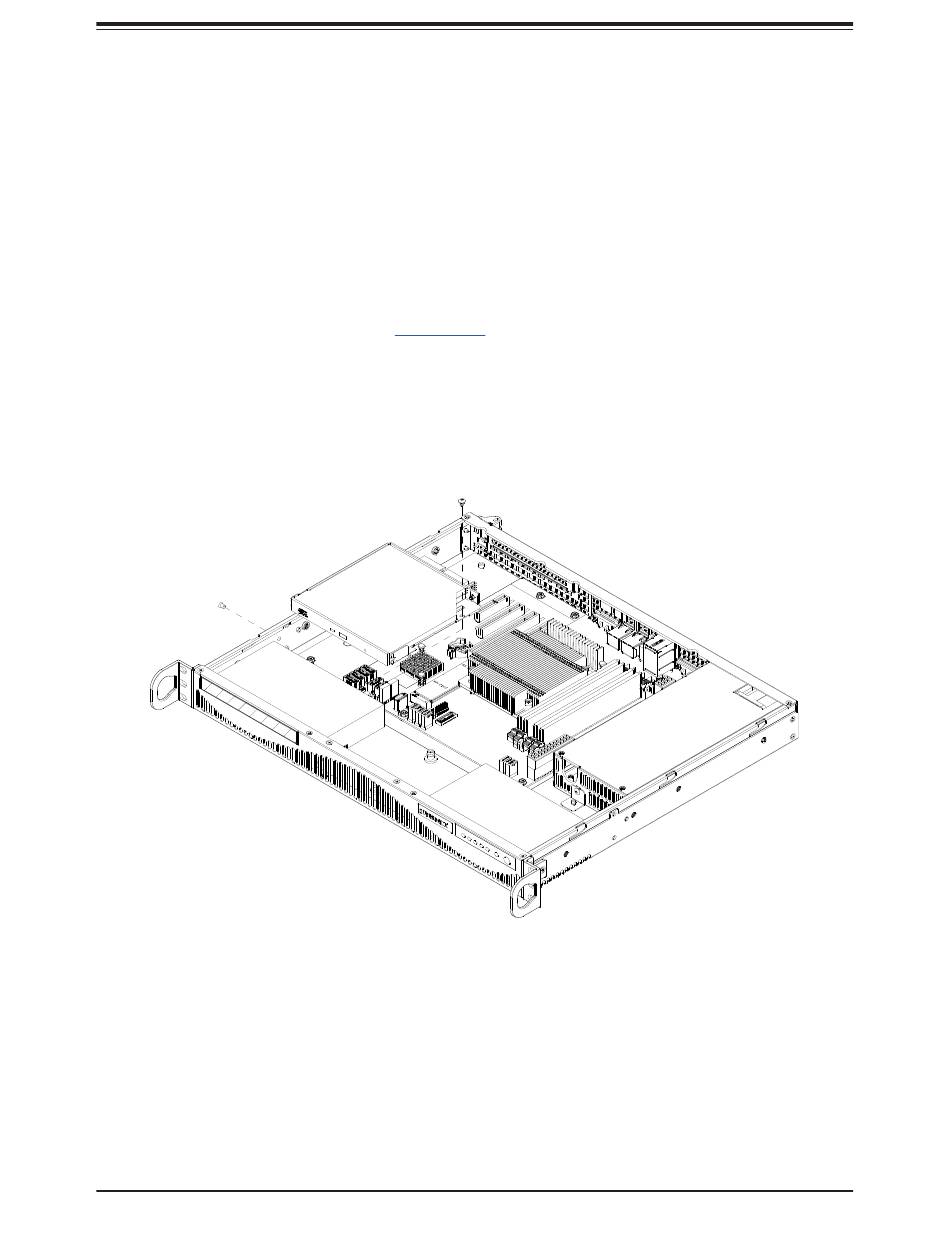

Figure 3-5. Installing a DVD Drive
38
