Units With Statitrac - Trane IntelliPak 1 with Symbio 800 Installation, Operation And Maintenance Manual

Installation

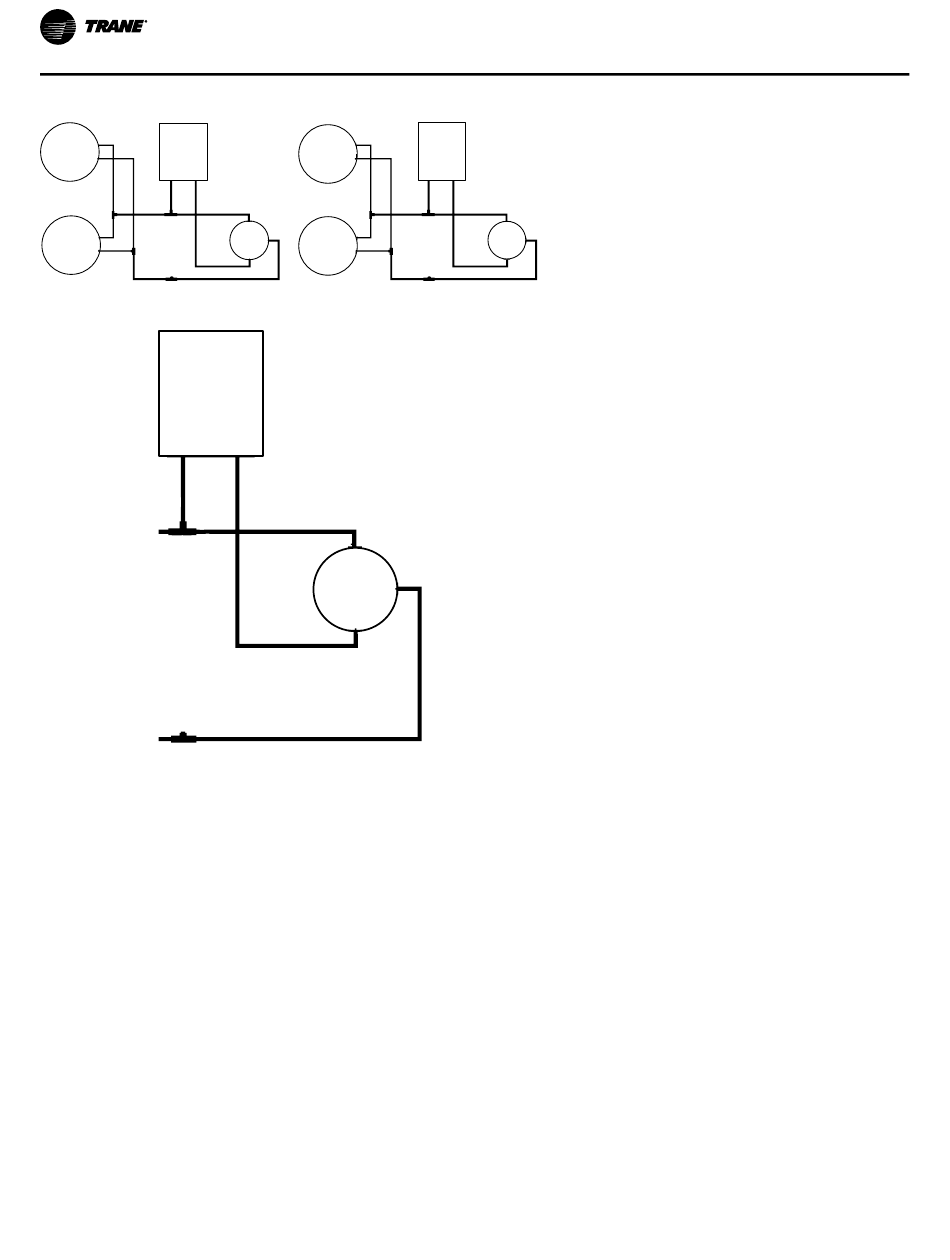

Figure 20. Outside air tubing schematic
Fresh Air
Transducer
Upper
Low
Left side
Flow
High
Ring
Lo Hi
Upper
Low
Flow
High
Ring
Figure 21. Return air pressure tubing schematic
Fresh Air
Transducer
Left side
Lo
Outside Air
Return Plenum
Pressure
38
Upper Low
Flow
High
Ring
NC
Upper
Low
NO
Flow
High
Ring
C
Hi
NC
NO
C
Fresh Air
Transducer
Left side
Lo Hi
NC
NO
C

Units with Statitrac

1. Open the filter access door and locate the Space
Pressure and Duct Supply Pressure control devices,
see the following image for specific location. There are
three tube connectors mounted on the left of the
solenoid and transducers.
2. Connect one end of the field provided 3/16" O.D.
pneumatic tubing for the space pressurization control to
the bottom fitting.
3. Route the opposite end of the tubing to a suitable
location inside the building. This location should be the
largest open area that will not be affected by sudden
static pressure changes.
RT-SVX072D-EN
