Minimum Required Clearance

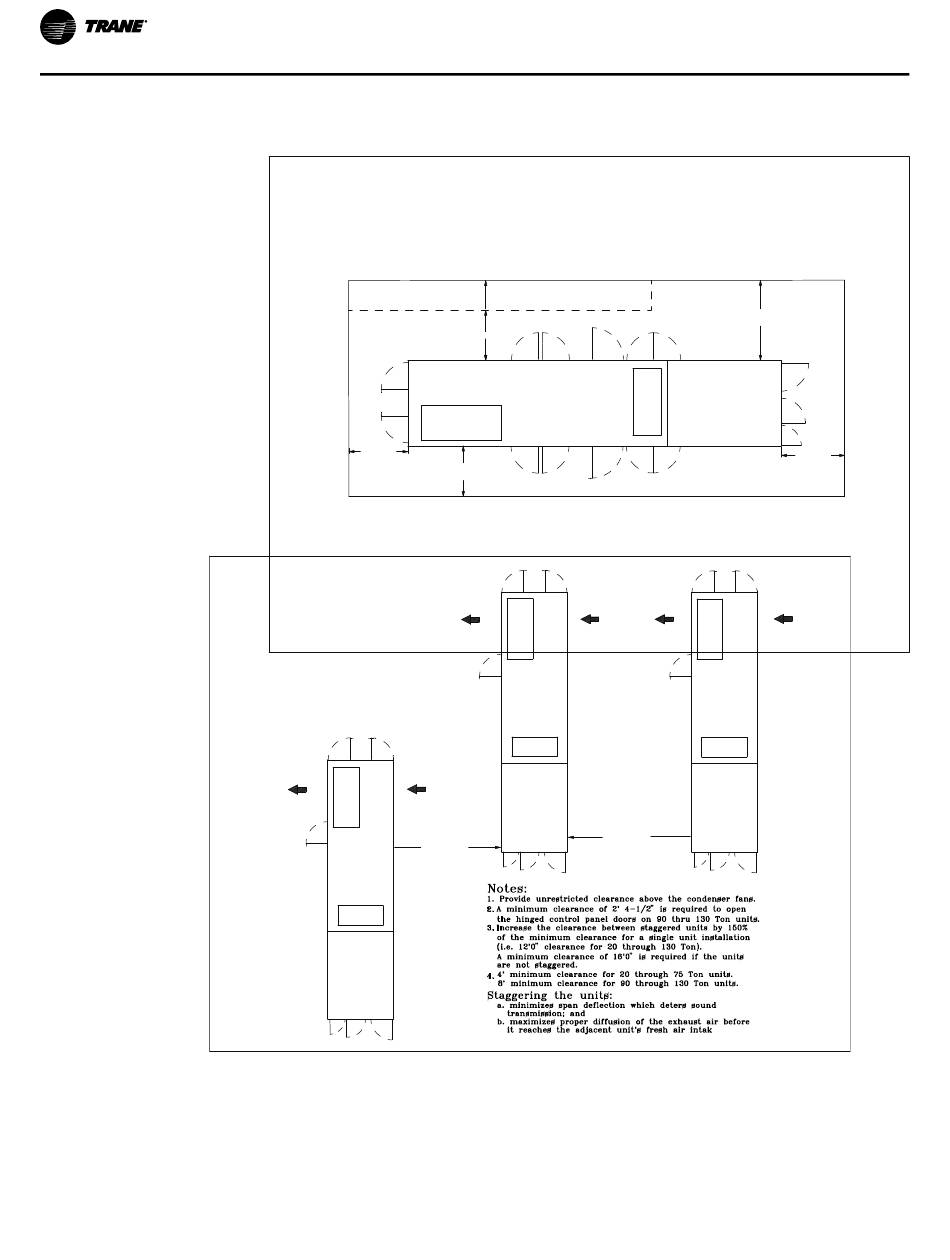

Figure 10. Minimum operation and service clearances for single and multiple unit installation
Single Unit Installation
Legend
A = Return Air Opening
B = Outside Air Intake
C = Supply Air Opening
D = Condenser Section
E = Optional 2'10-3/4" Exhaust/Return Access Door (180° swing)
F = Hinged 2'10-3/4" Filter Access Door (180° swing)
G = Hinged 2'10-3/4" optional Heater or Final Filter Access Door (180° swing)
H = Hinged 2'10-3/4" Supply Fan Access Door (180° swing) (90-130 ton)
J = Hinged 2'4-1/2" Control Panel Door (180° swing) (90-130 ton)
K = Hinged 2'10-3/4" VFD Access Door (180° swing)
L = Hinged 2'10-3/4" Evap Condenser Access Door (180° swing)
M = Hinged 20.5"Control Panel Door (180 deg swing) (20-75 ton)
N = Hinged 26.5"Control Panel Door (180 deg swing) (20-75 ton)
P = Hinged 32"Control Panel Door (180 deg swing) (20-75 ton)
26
K
E
6'0" MINIMUM
SERVICE / AIRFLOW
CLEARANCE
MULTIPLE UNIT INSTALLATION
FRESH AIR
EXHAUST AIR INTAKE
12'0" MINIMUM
SERVICE / AIRFLOW
CLEARANCE
CONDENSER
SECTION
(NOTE 1)
NOT TO SCALE
(SEE NOTE 4)
G
H
F
B
A
F H G / J
8'0" MINIMUM
SERVICE / AIRFLOW
CLEARANCE
FRESH AIR
EXHAUST AIR INTAKE
CONDENSER
SECTION
(NOTE 1)
16'0" MINIMUM
SERVICE / AIRFLOW
CLEARANCE
(NOTE 3)
8'0" MINIMUM
SERVICE / AIRFLOW
CLEARANCE
L
G
D
P
(NOTE 1)
C
N
M
J L
SERVICE / AIRFLOW
FRESH AIR
INTAKE
EXHAUST AIR
CONDENSER
SECTION
(NOTE 1)
(NOTE 3)
8'0" MINIMUM
CLEARANCE
